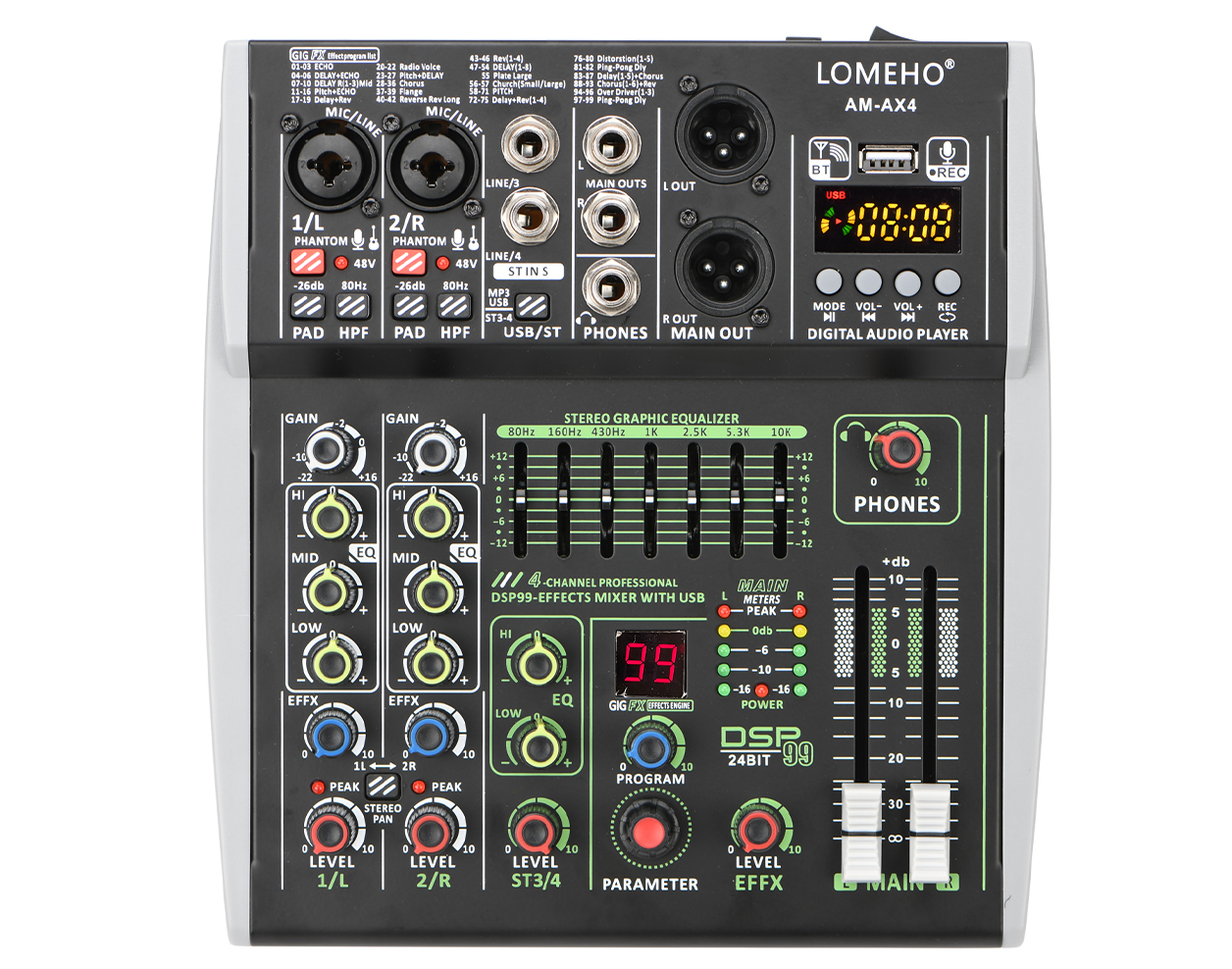

Name: 4/6 Channel Mixing Console 48V 99 DSP Effect Bluetooth Lomeho Audio DJ Mixer USB PC Play Record Podcast Sound Table AM-AX4
Brand: FREEBOSS SHOP
SKU: 1005003962052548
Price: 65.67 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Type: Professional Audio Recording Mixing ConsolenChannel Configuration: AM-AX4: 4 Channels (2 Mono + 1 Stereo); AM-AX6: 6 Channels (4 Mono + 1 Stereo)nPower Supply: DC 12V 2AnBluetooth Connectivity: Yes, Bluetooth mixing consolenEffects: 99 DSP Effects mixing consolenConnectivity: USB PC Play Record, compatible with MP3, WMA, WAV, FLAC formatsnnn|Pongoly|Ax Am|Dsp 99 Price|nn**Versatile Mixing Capabilities**nThe Lomeho AM-AX Series is a professional audio recording powerhouse, designed to cater to the needs of both amateur and seasoned audio engineers. The AM-AX4 and AM-AX6 models offer a flexible range of channel configurations, allowing you to mix up to 6 channels with individual +48V phantom power for condenser microphones. The 7 Band EQ and 99 DSP Effects provide you with the tools to shape and enhance your audio, ensuring that your mixes are of the highest quality.nn**Seamless Integration with Technology**nThe AM-AX Series is not just a mixing console; it's a gateway to modern audio production. With Bluetooth connectivity, you can easily stream audio from your smartphone or tablet, making it a versatile tool for live performances and podcasts. The USB PC Play Record feature enables you to record directly to your computer, making it a breeze to capture your creative moments. Whether you're a podcaster, DJ, or a music producer, the AM-AX Series is designed to integrate seamlessly with your digital workflow.nn**Compact and Portable Design**nThe AM-AX Series is as practical as it is powerful. Its mini, portable design makes it an ideal choice for musicians on the go, while the robust build ensures that it can withstand the rigors of frequent use. The inclusion of a 26dB PAD and 80Hz HPF function provides additional control over your audio, allowing you to fine-tune your mixes to perfection. Whether you're in a professional studio or on the road, the AM-AX Series is the perfect companion for your audio adventures.

Spanish Customers:

PARA NUESTRO ALMACÉN DE ESPAÑA, CÓDIGO POSTAL ESPAÑOL DESDE 35,38,51,52, ISLAS SIN SERVICIO.NO PODEMOS ENVIAR EL PAQUETE, TENGA EN CUENTA, ¡GRACIAS

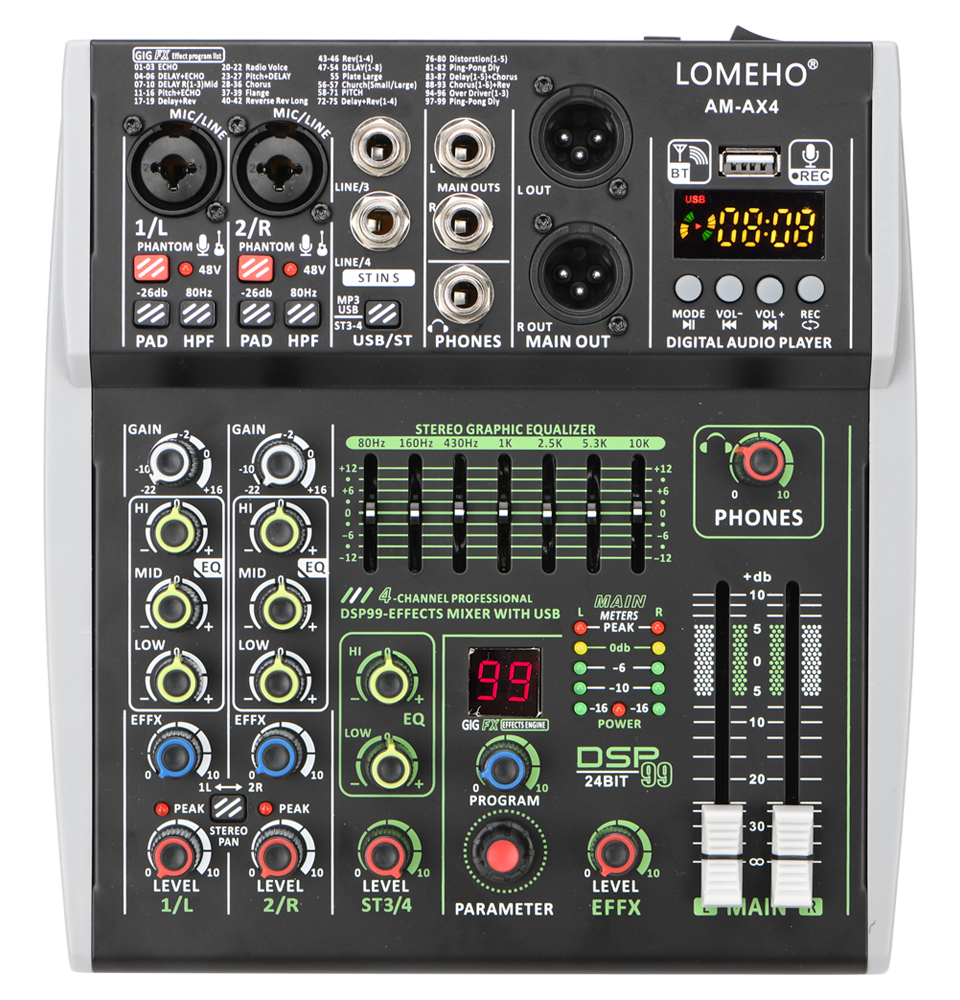

AM-AX Series

7 Band EQ Mixing Console Mini 4/6 Channels Individual 48V Phantom Power 99 DSP Effects Bluetooth USB Computer Play Record karaoke Audio Mixer

Selling Point:

1. Power supply: DC 12V 2A.

2. AM-AX4 model: 4 channels (2 Mono + 1 Stereo).

AM-AX6 model: 6 channels (4 Mono + 1 Stereo).

3. Bluetooth function.

4. 7 Band EQ

5. 99 DSP Effects.

6. USB Play and Record.

7. Computer play and record.

8. Individual +48V phantom power.

9. -26dB PAD and 80Hz HPF function.

10. Mini, portable.

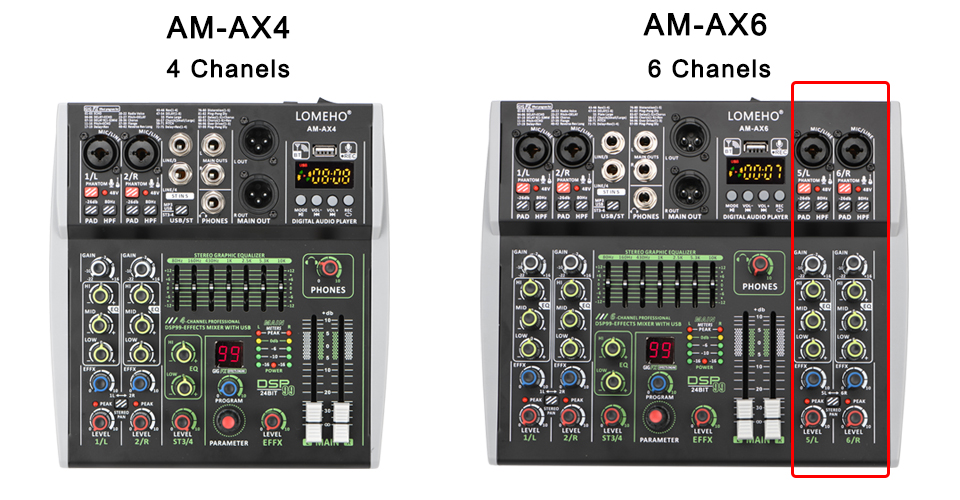

Difference of AM-AX4 and AM-AX6:

AM-AX4: 2 Mono+1 Stereo.

AM-AX6: 4 Mono+1 Stereo.

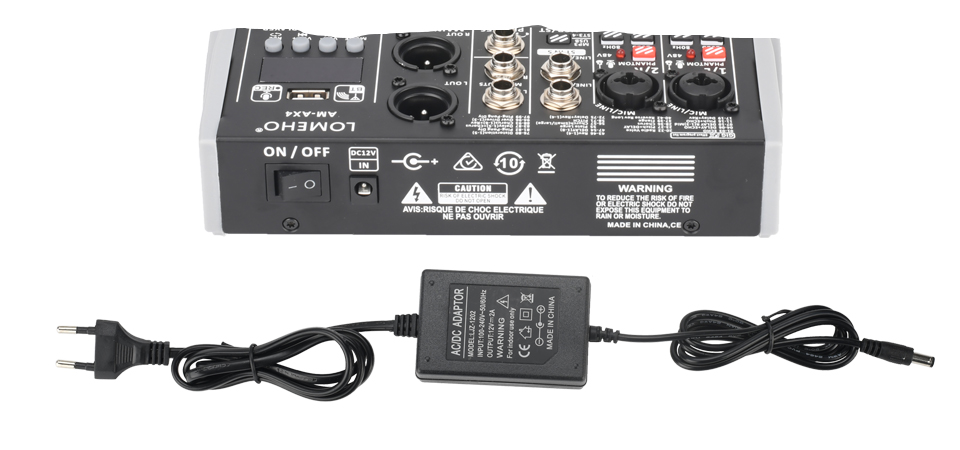

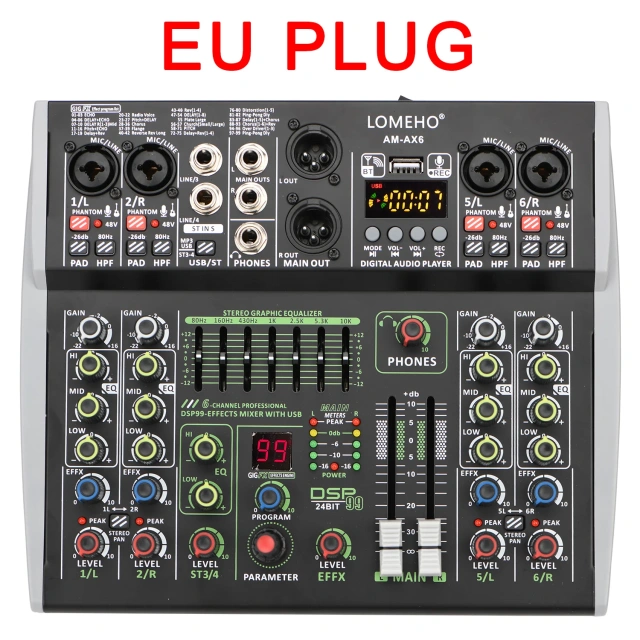

Power supply:

1. DC 12V 2A

2. Plug optional:

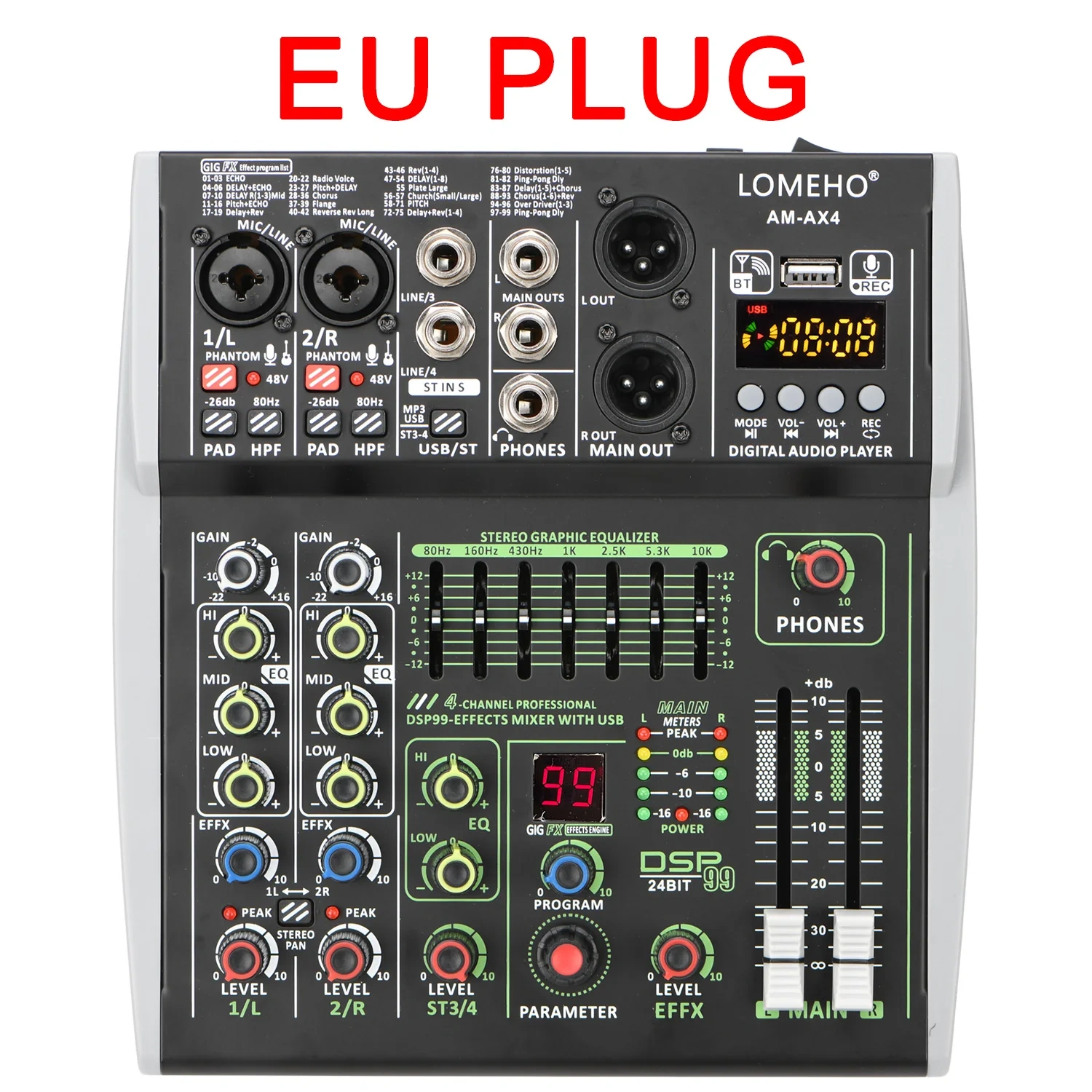

(1) EU plug

(2) US plug

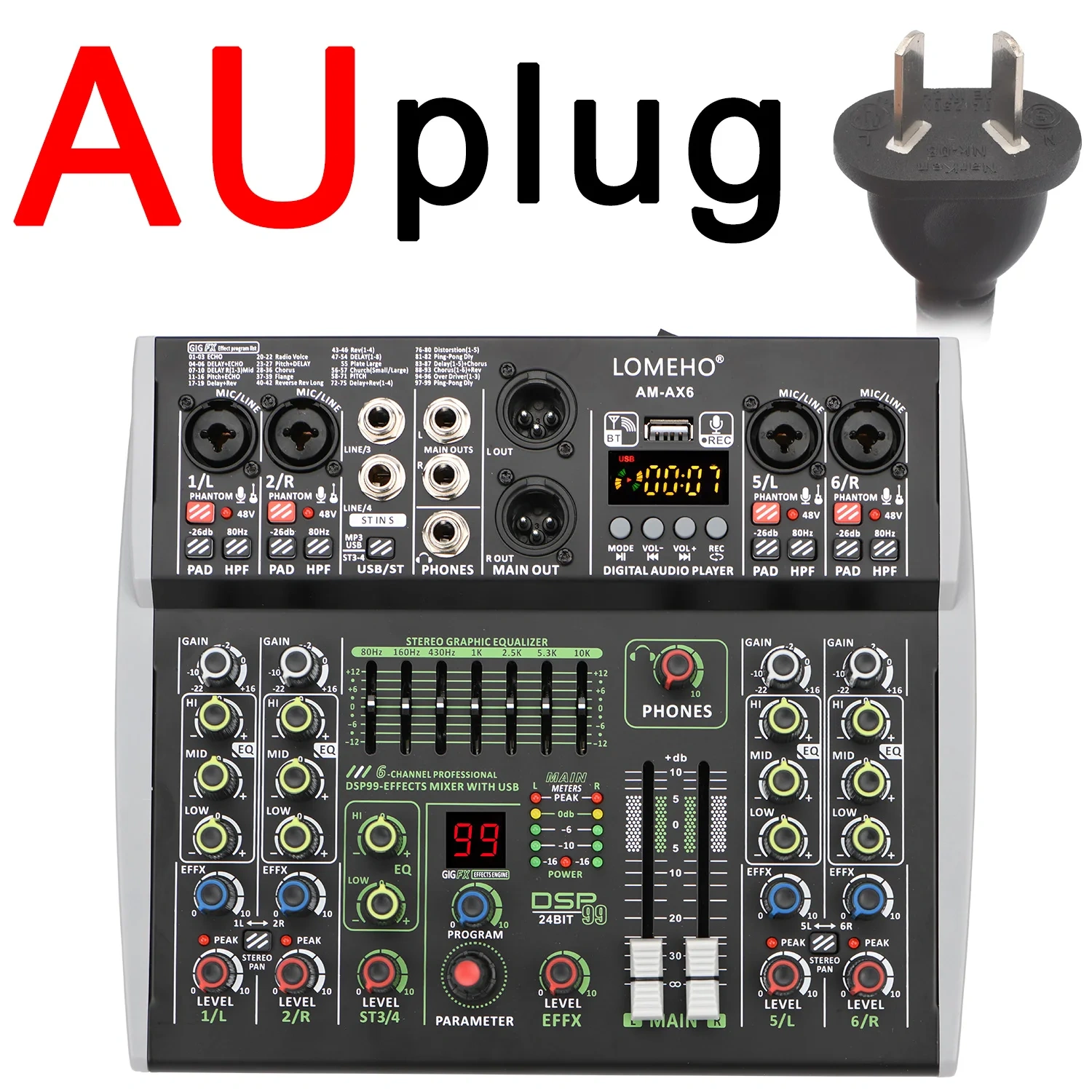

(3) AU plug

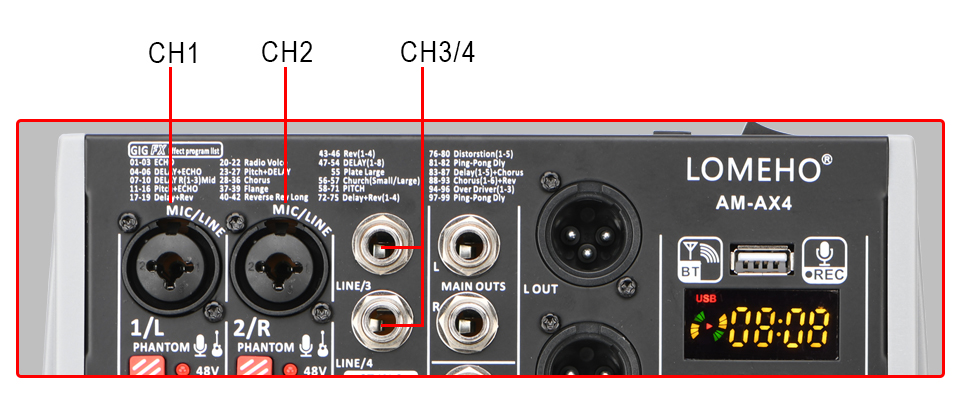

4 Channels

1). CH1/2/5/6 are Mono channels, CH3/4 is stereo channel.

2). For signal from CH1/2/5/6, L/R of main out will output same signal.

3). For signal from CH3, L of main out will output the signal, R will not output signal.

4). For signal from CH4, R of main out will output the signal. L will not output signal.

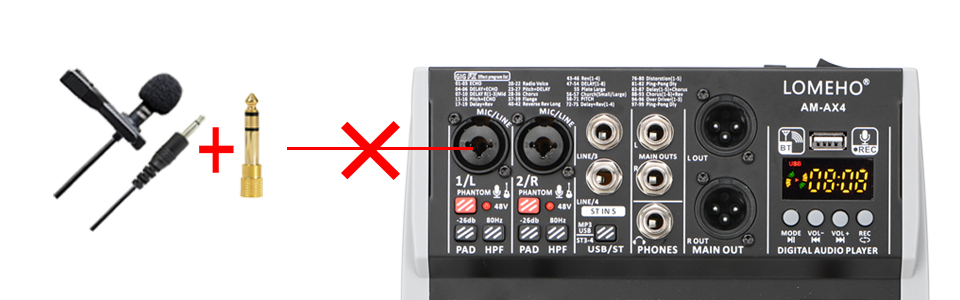

Common unconnectable input devices:

For these device, mixer can not supply working power, device can not work normal though you use plug adapters.

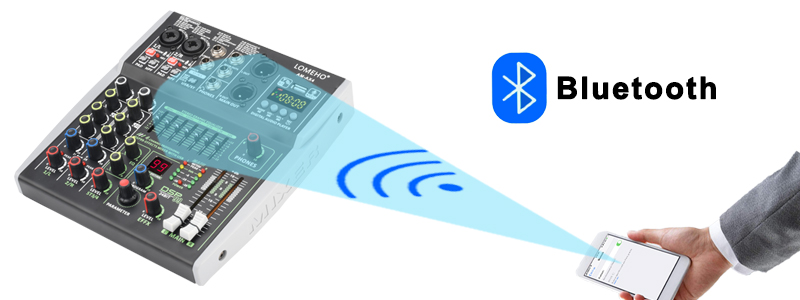

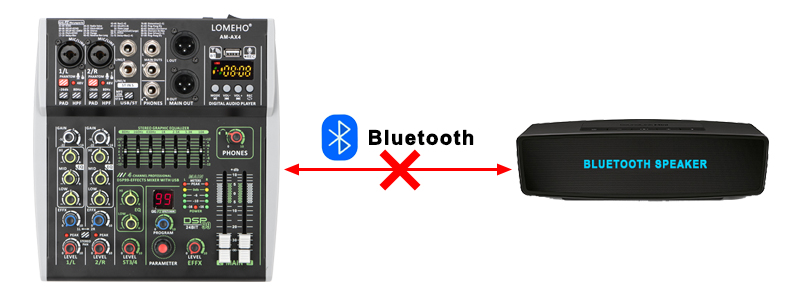

Bluetooth function:

1. Mixer only can accept bluetooth signal, it can not send out bluetooth signal.

2. After pairing, please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.

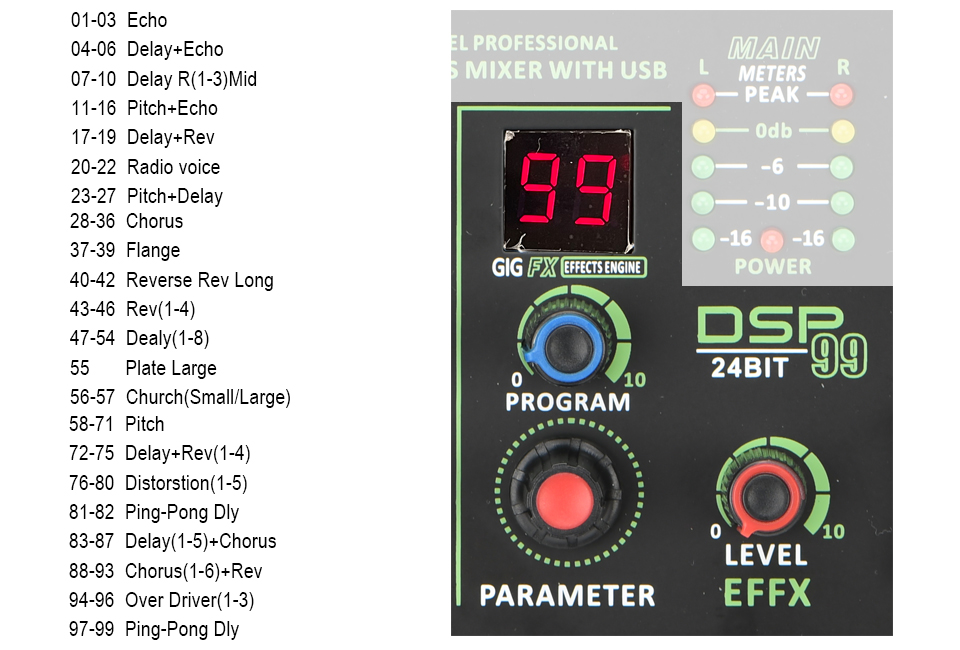

99 DSP effects:

1. Parameter: Choose effect.

2. Program: Adjust parameter.

3. Level: Adjust the output level.

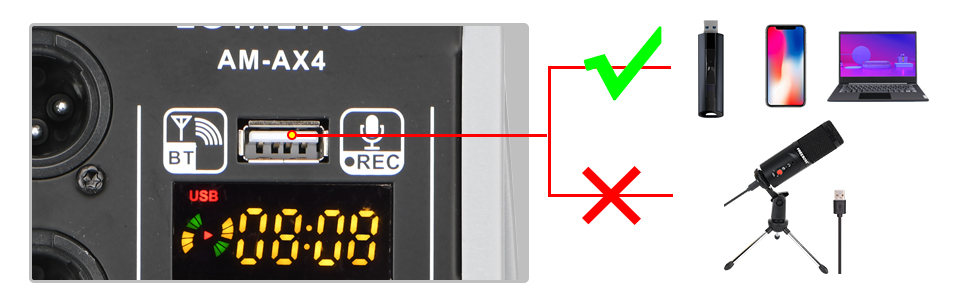

Connection with U-Disk

(U-Disk is not included,buyer need buy it by himself)

1. U-Disk format: FAT32 ( Do not support NTFS).

2. Play format: MP3, WMA,WAV,FLAC.

3. Record format: MP3

(Before recording, please copy a song in the U disk, otherwise, the disk may not be possible to record).

4. Sampling frequency: 16 Bit 48KHz.

5. Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.

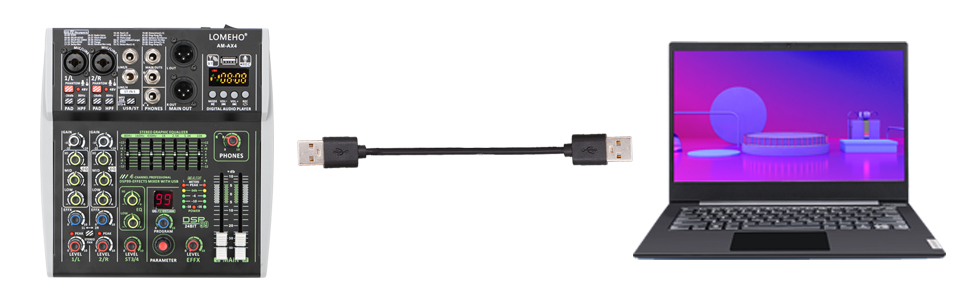

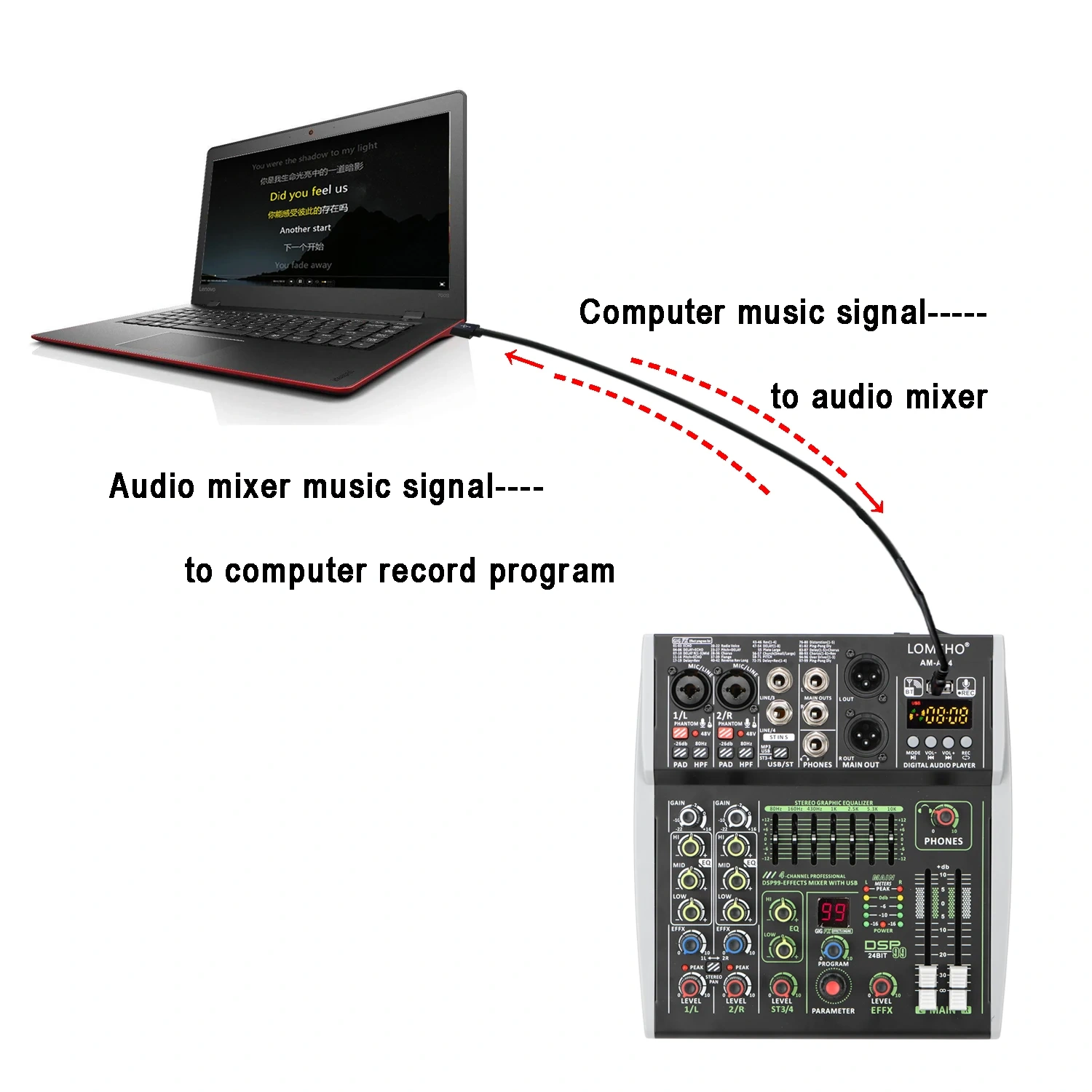

Connection with PC

(USB cable is not included, buyer need buy it by himself)

1. Computer play

Buyer downloads music play software, and choose mixer as speaker. Then computer music signal will come into mixer.

Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.

2. Computer record

Buyer downloads music record software, choose mixer as microphone. Then mixer signal will come into computer.

3. Please note, you conly can record MONO music.

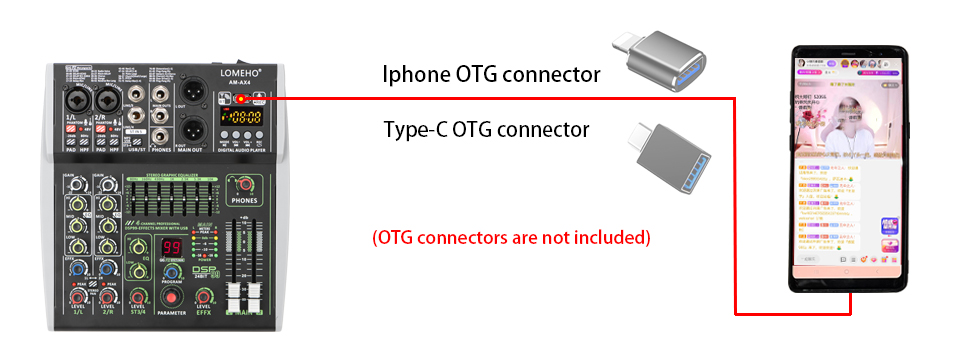

Mobile broadcast (Podcast)

Buyer need buy OTG by himself.

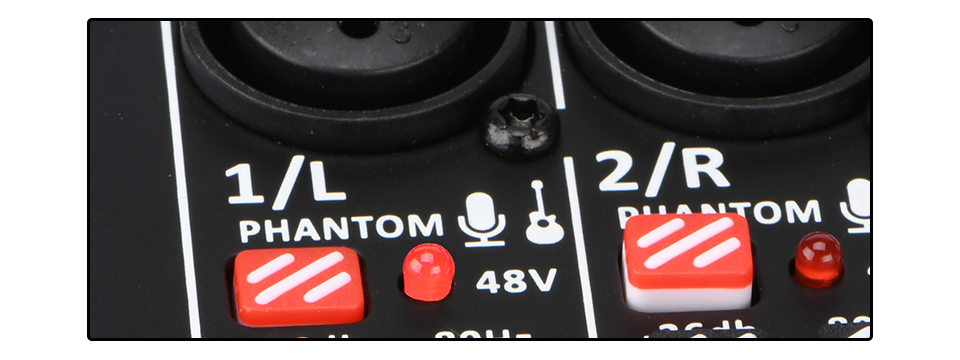

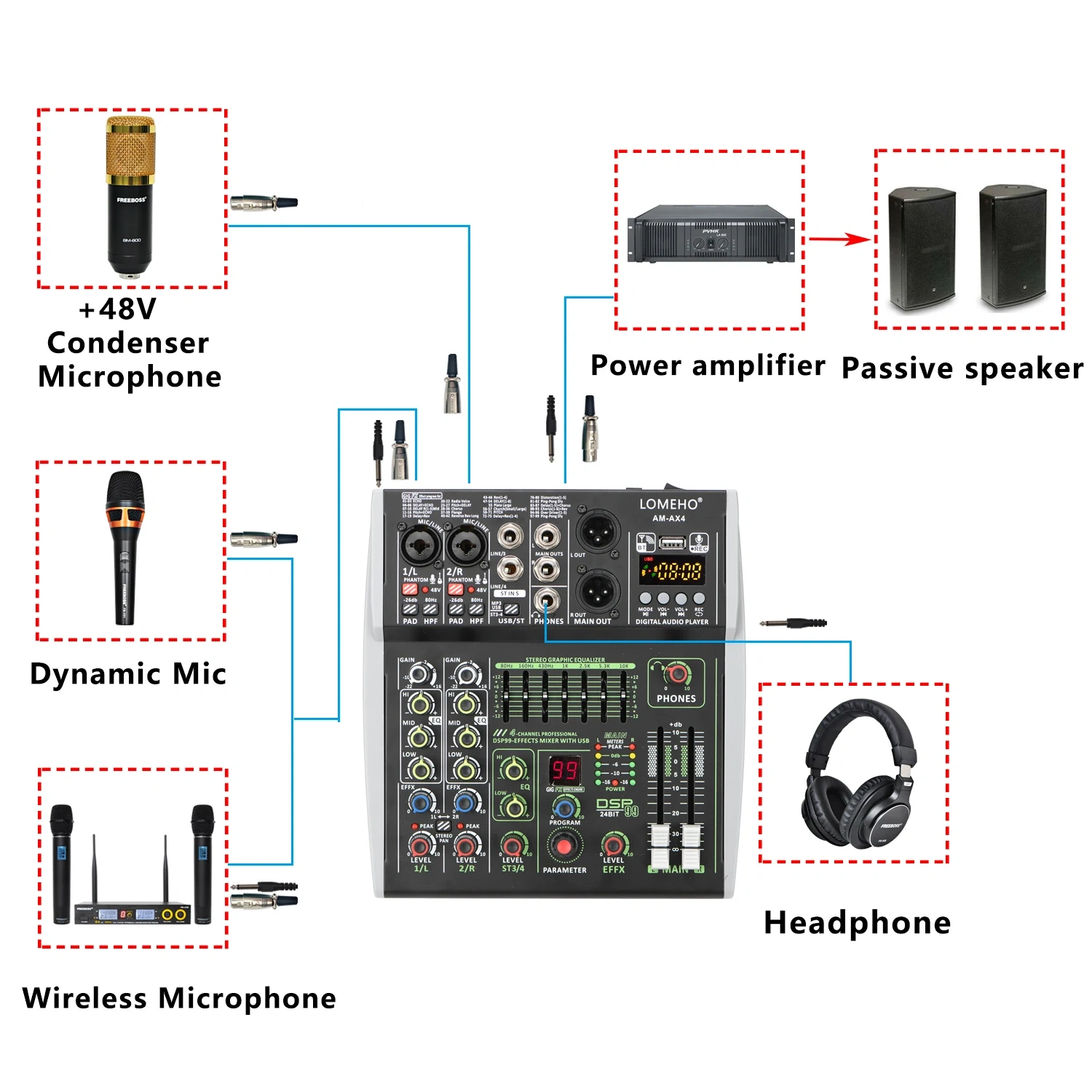

Individual +48V phantom power:

1. Phantom power is only for XLR socket.

2. You can use +48V condenser microphone and dynamic microphone through XLR socket at same time.

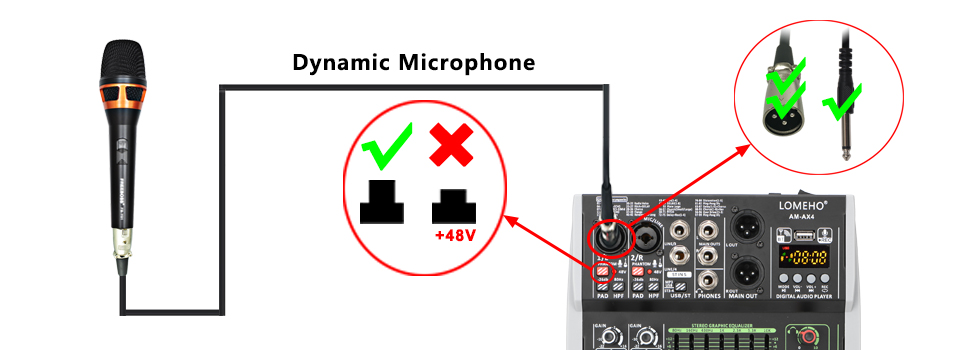

3. Connection with dynamic microphone

1) We recommend using XLR cable to connect mic to mixer. If you use 6.3 plug,the volume will be small.

2) please do not power on +48V phantom power, otherwise the power maybe burn the dynamic microphone.

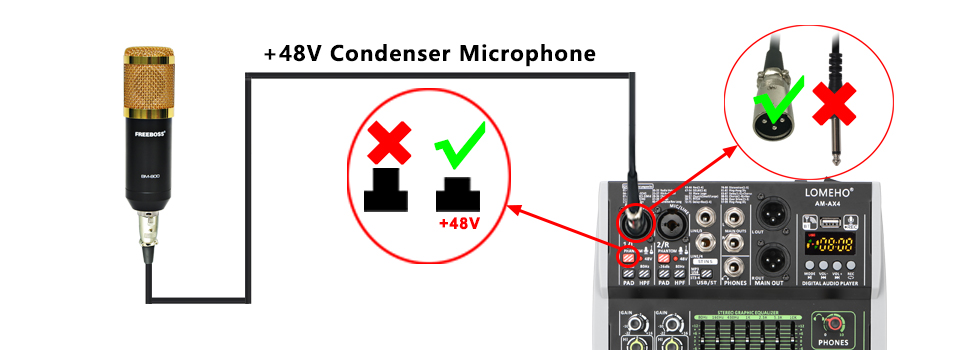

4. Connection with +48V condenser microphone

1) If your condenser microphone supports +48V, please power on +48V phantom power.

2) If your ocndenser microphone does not supports +48V, you can not use the micorphone.

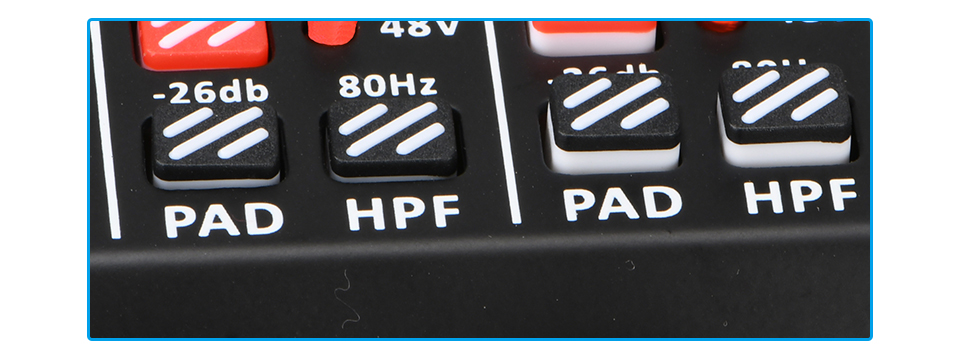

PAD Button （26dB)

It will attenuate the sound input to the device when turn on this switch. You can turn on the switch if you hear the distortion or [PEAK] light is on.

HPF Buttoon (80Hz)

High Pass Filter, cuts bas frequencies below 80Hz.

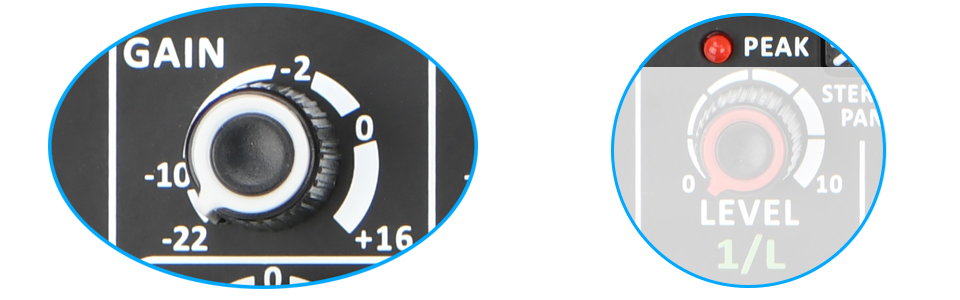

Gain knob:

1. Adjust the input signal level.

2. To get the best balance between the S/N ration and the dynamic range, adjust the gain so that the PEAK indicator only occasionally and briefly on the highest input transients.

Peak light:

Light will be on when the volume of input and or post-equalizer sound is too high. If it is lit, turn the [Gain] knob to the left to lower the volume.

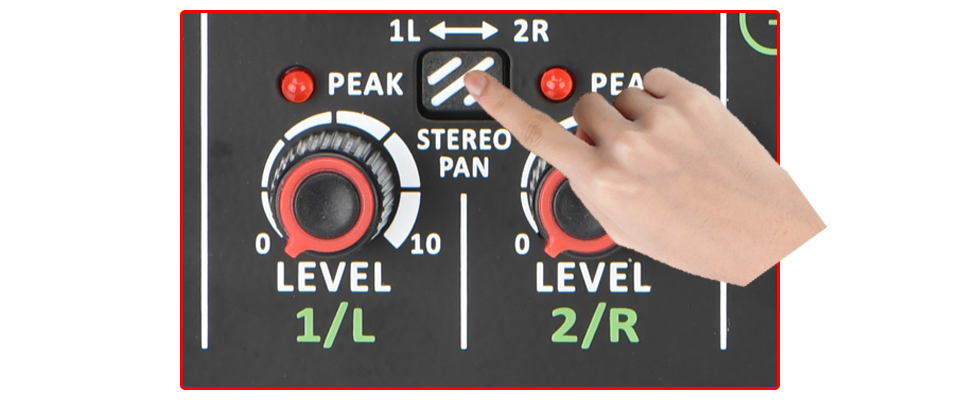

Stereo Pan:

Button is bounced up: [MONO].

Sound input to channels 1/L or 2/R can be heard from both the right and left speakers. If you use the 1/L or 2/R individually, set the switch to this setting.

Button is pressed down:[STEREO].

Sound input to channel 1/L can be heard from only the left speaker , and the sound input to channel 2/R can be heard from only the right speaker.

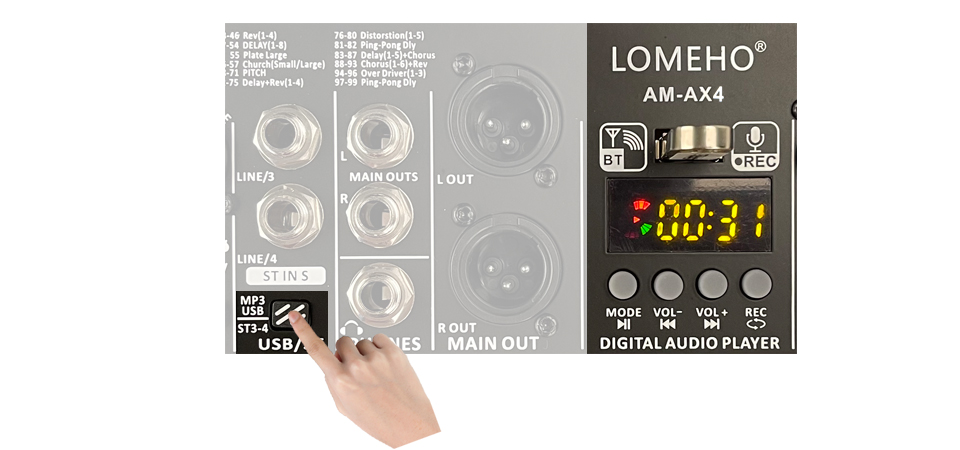

ST3-4/USB MP3:

Line input signals : Button is bounced up.

U-disk/bluetooth/pc input signals: Button is pressed down.

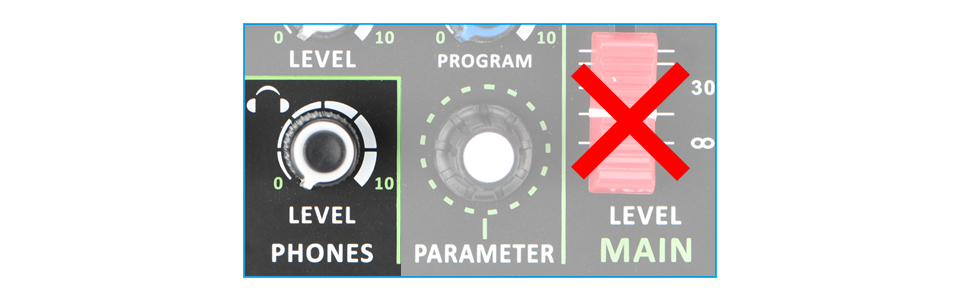

Headphone volume control:

1. [LEVEL PHONES] Knob can adjust the volume of headphone.

2. [MAIN OUT] fader do not control the volume of the headphone.

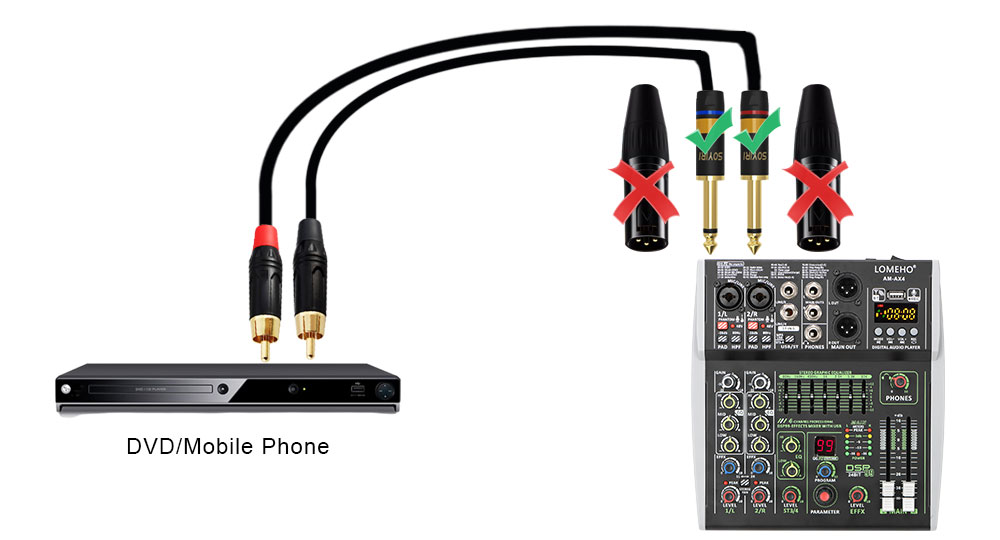

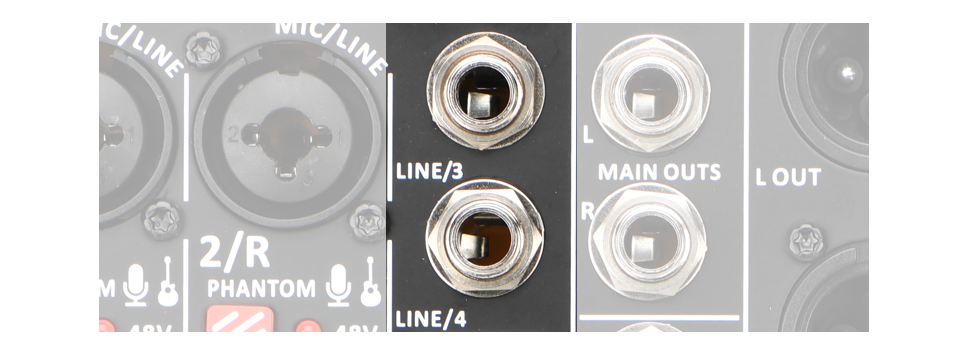

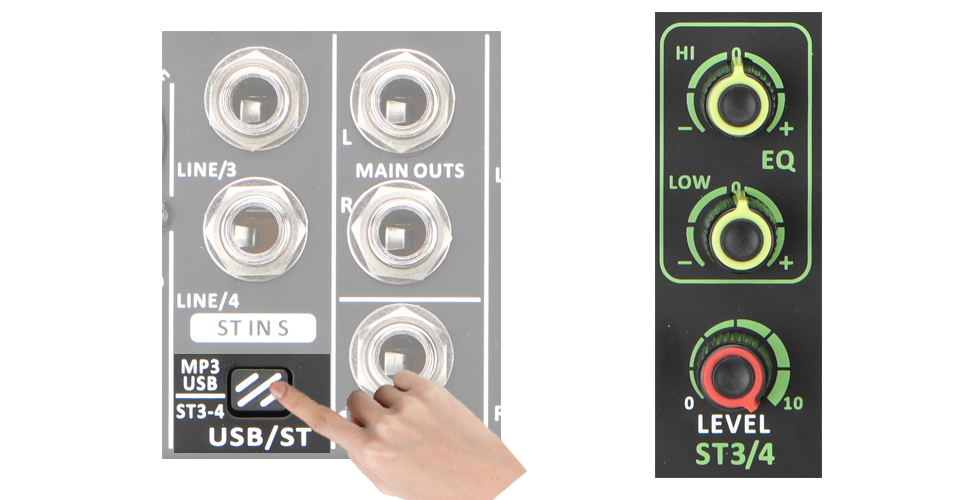

Stereo 3/4 (L/MONO)

For connecting to Line-level devices such as an electric keyboard or an audio device.

Channel 3 is a L/Mono channel.

1) Only input signal to channel 3, main output will output CH3's signal to left and right channels.

2) Only input signal channel 4, the main output will output CH4's signal to right channel.

3) Input signals to channels 3/4 at the same time, the main output will output CH3's signal to left channel and CH4's signal to right channel.

Packing:

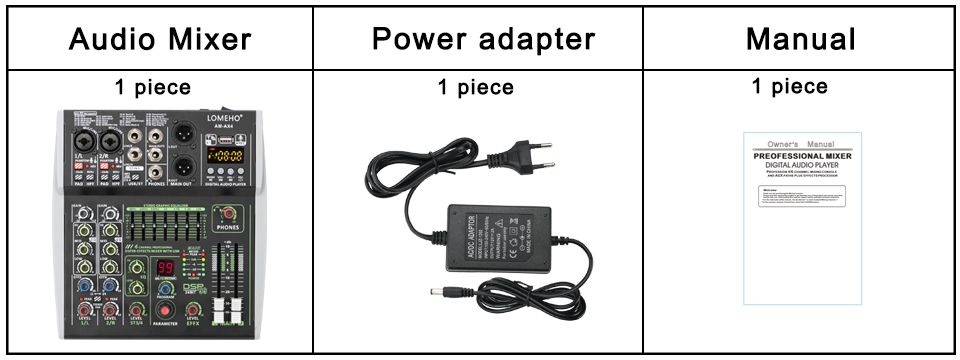

1. Packing list:

Audio mixer------1pc.

Power adapter------1pc.

Manual------1pc.

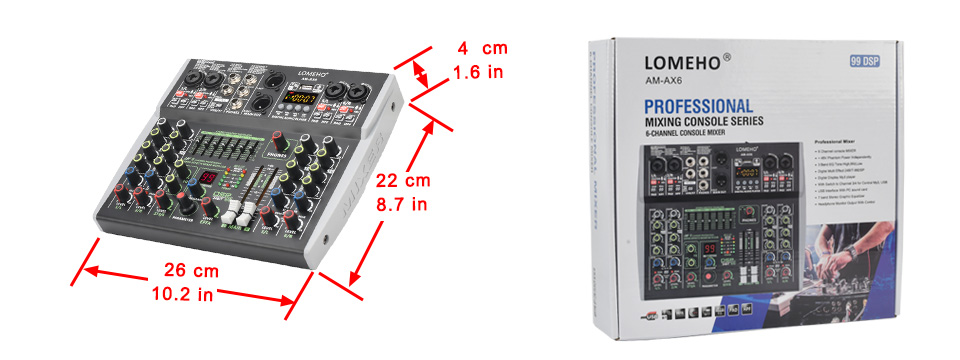

2. Size and packing.

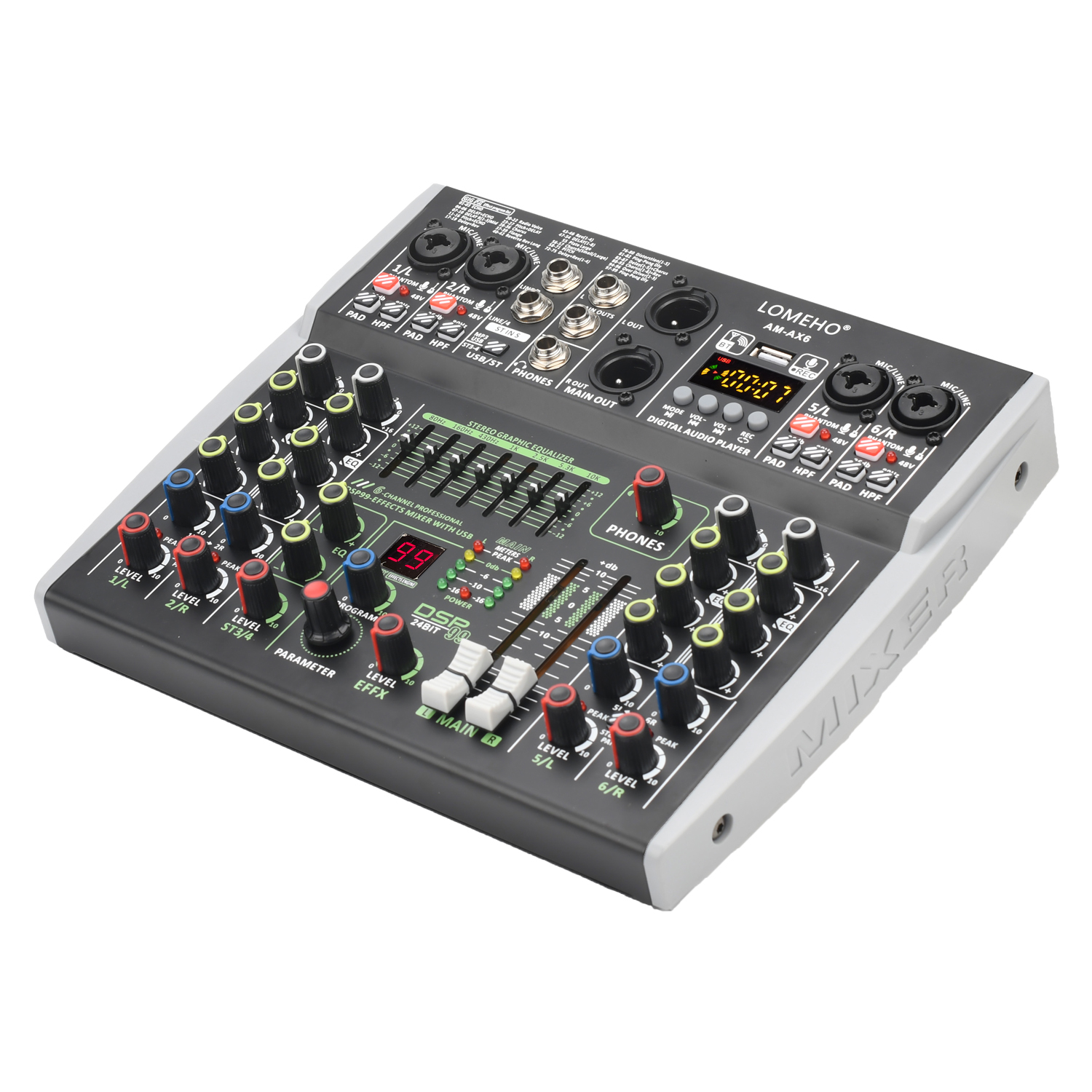

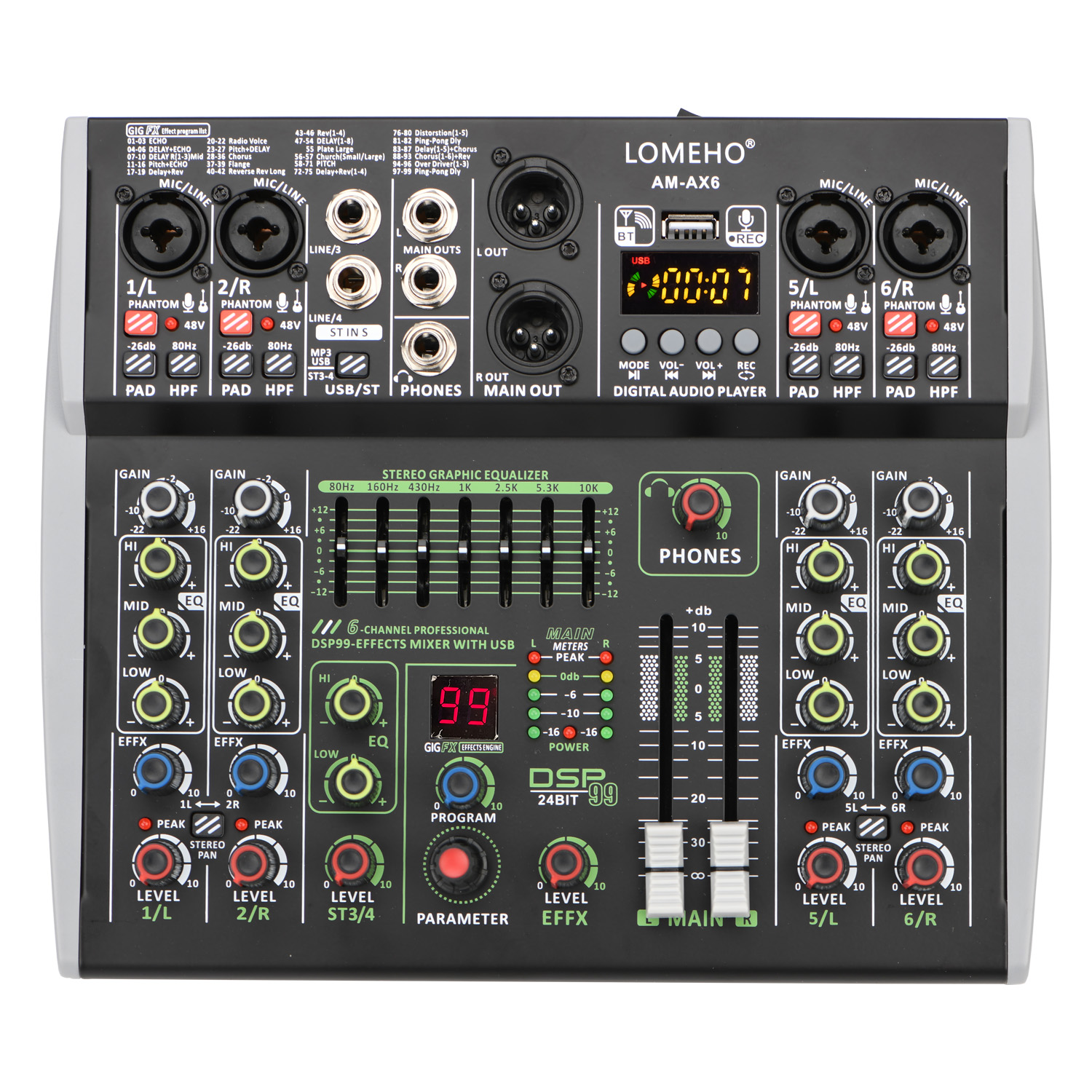

AM-AX6 Picture
