AG-AS04B

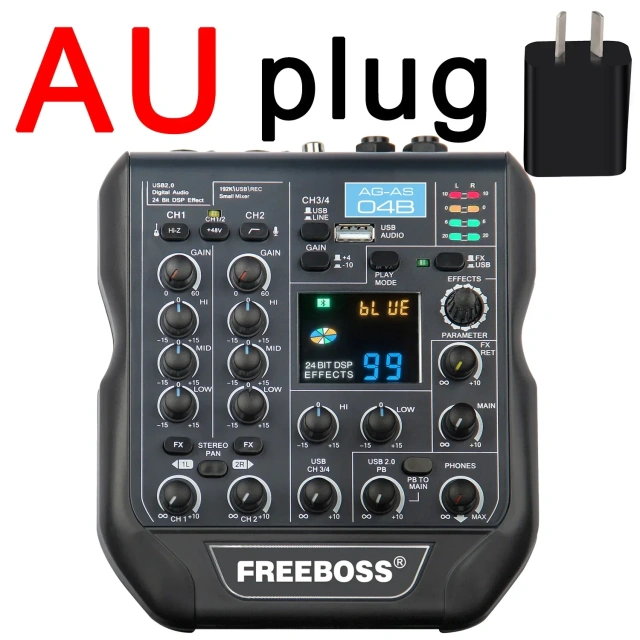

Freeboss AG-AS04B 24Bit 99DSP Effects 192KHz Sampling Frequency Bluetooth Mini Audio Mixer with USB Record and 48V Phantom Power

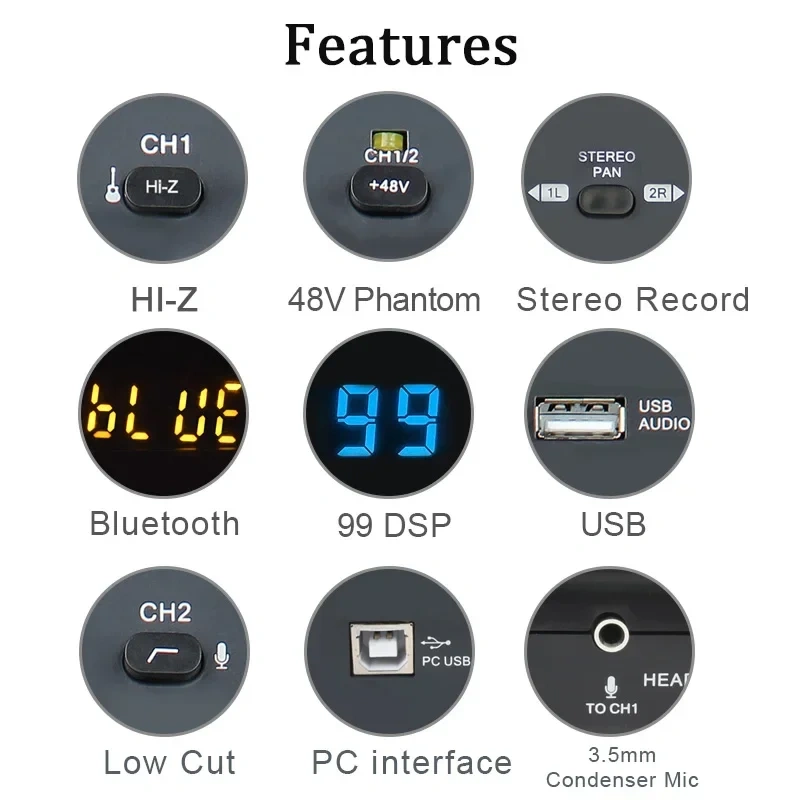

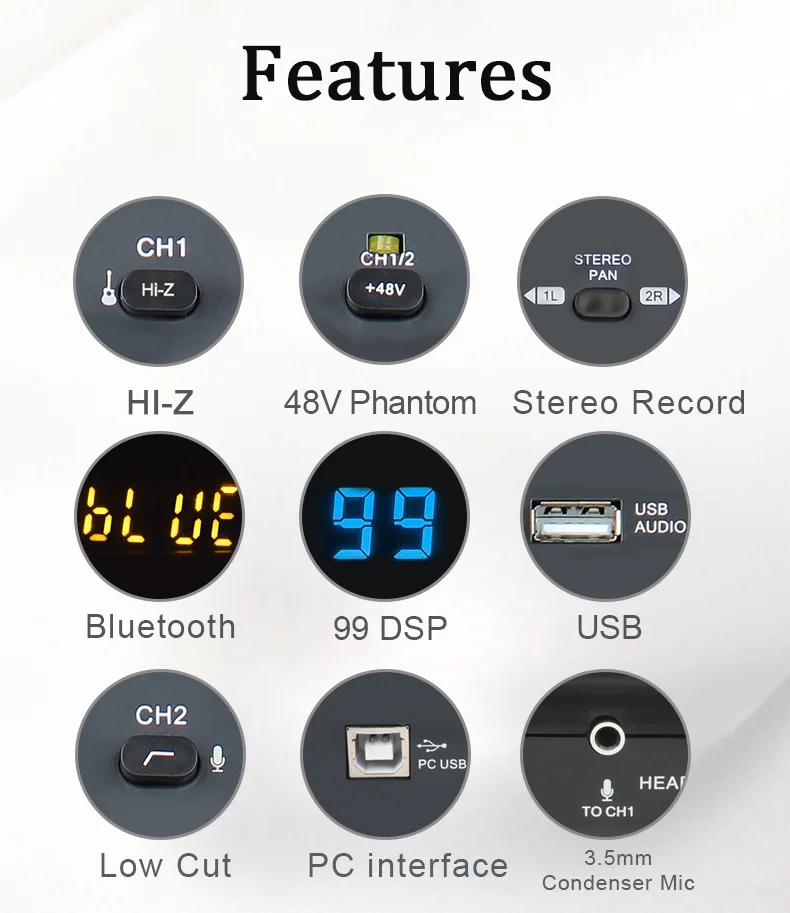

Selling Point

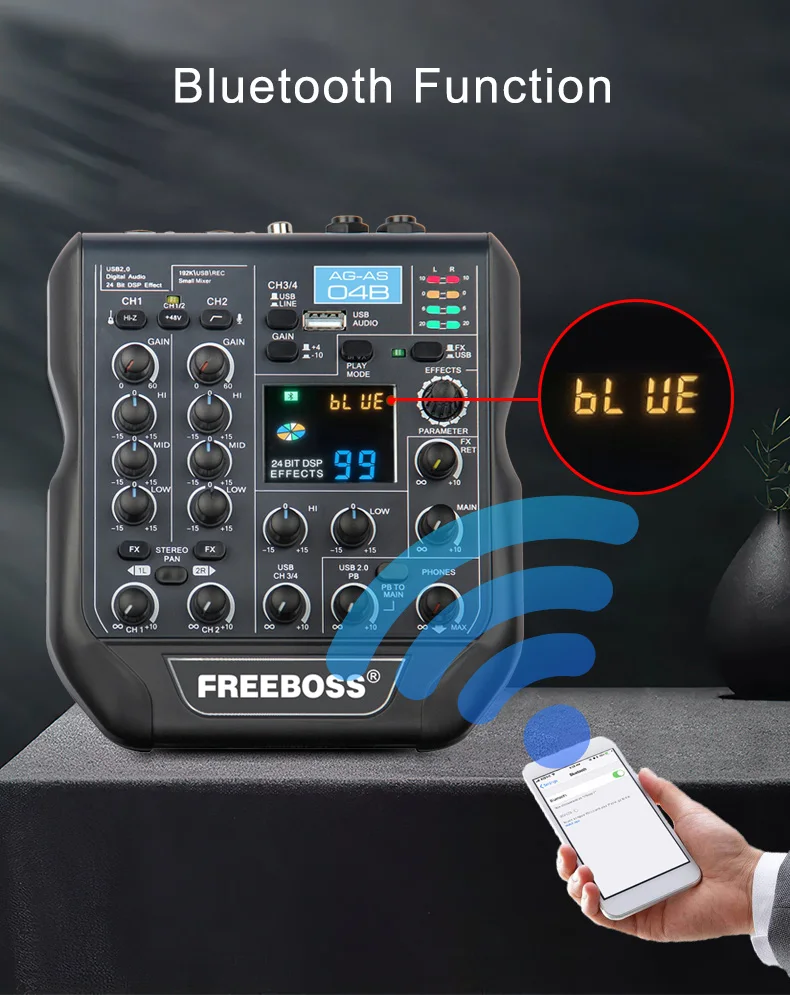

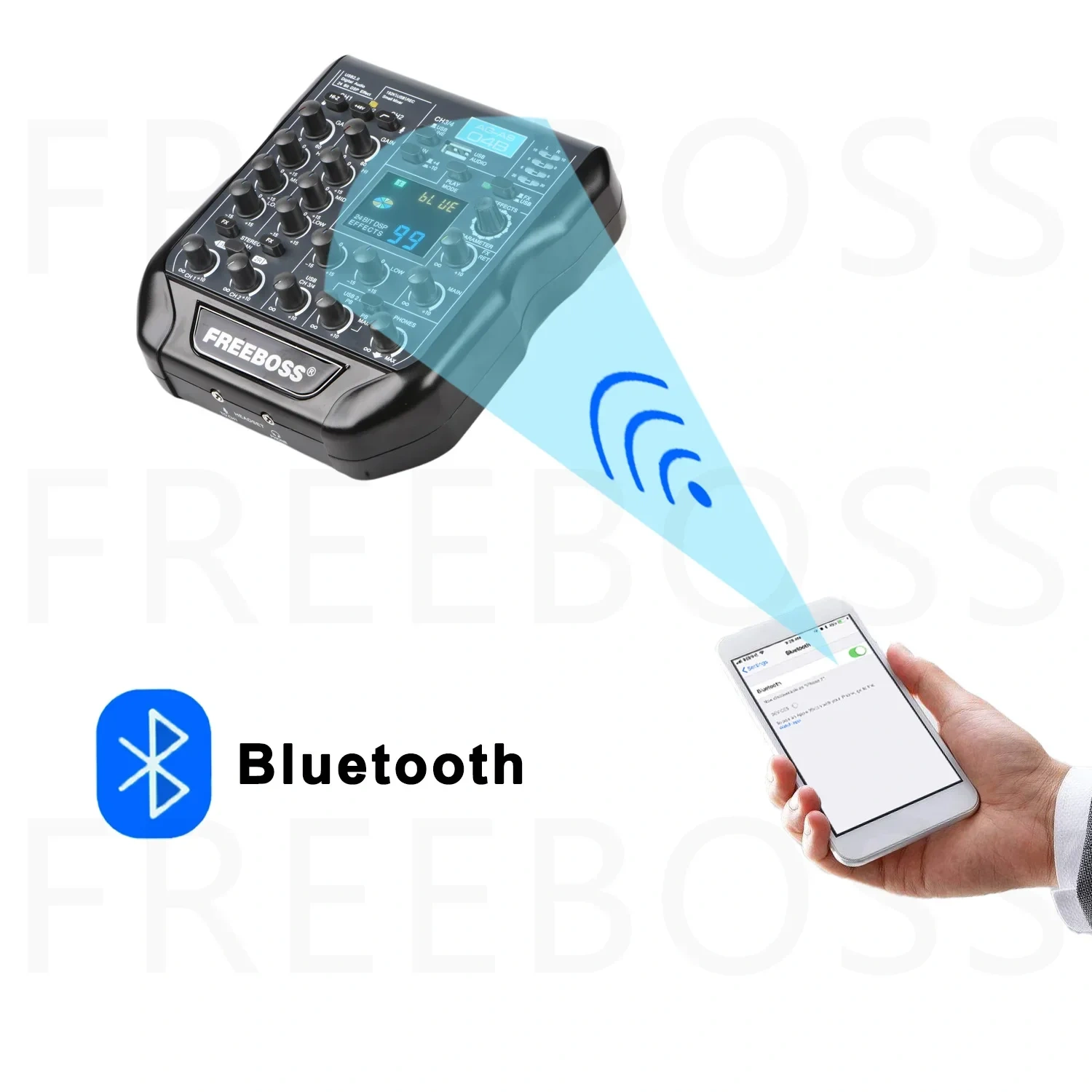

1. Bluetooth function

2. stereo/ mono recording

3. 99 DSP effect

4. HI-Z button for guitar

5. USB/PC play and record

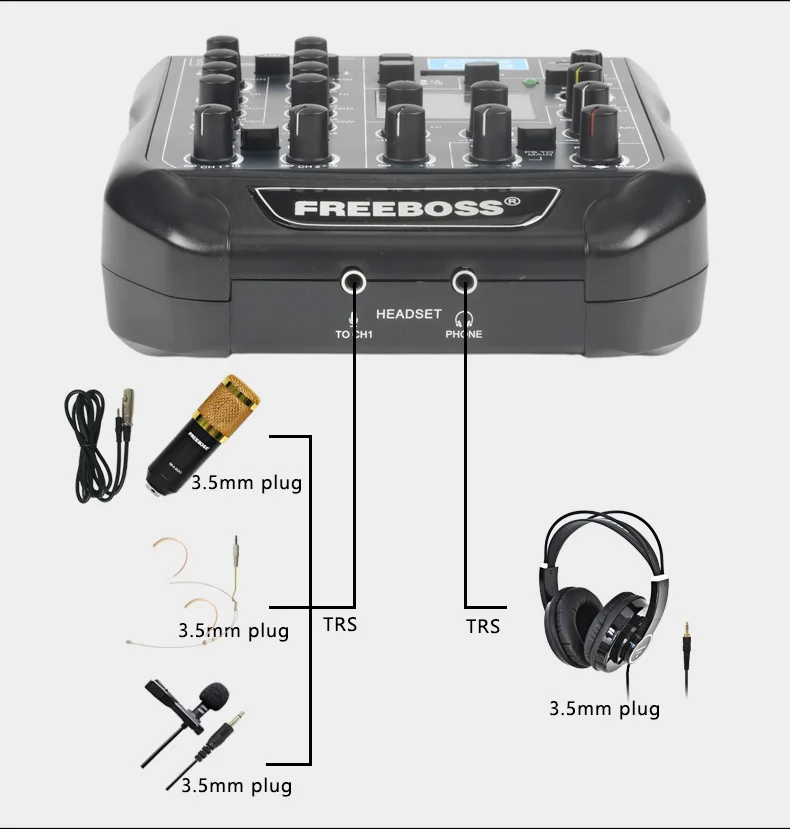

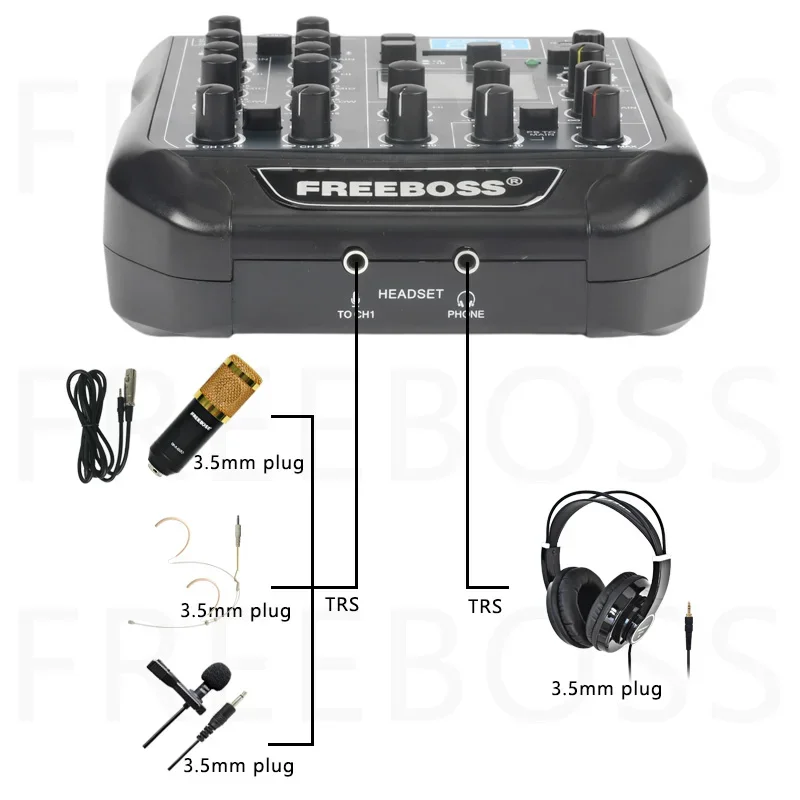

6. 3.5mm condenser microphone input

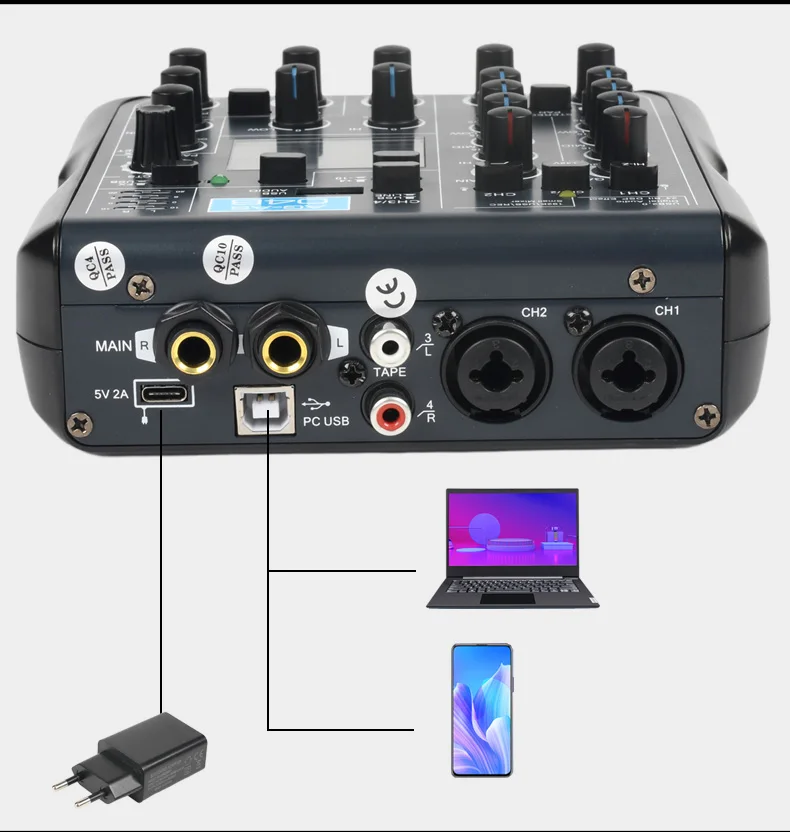

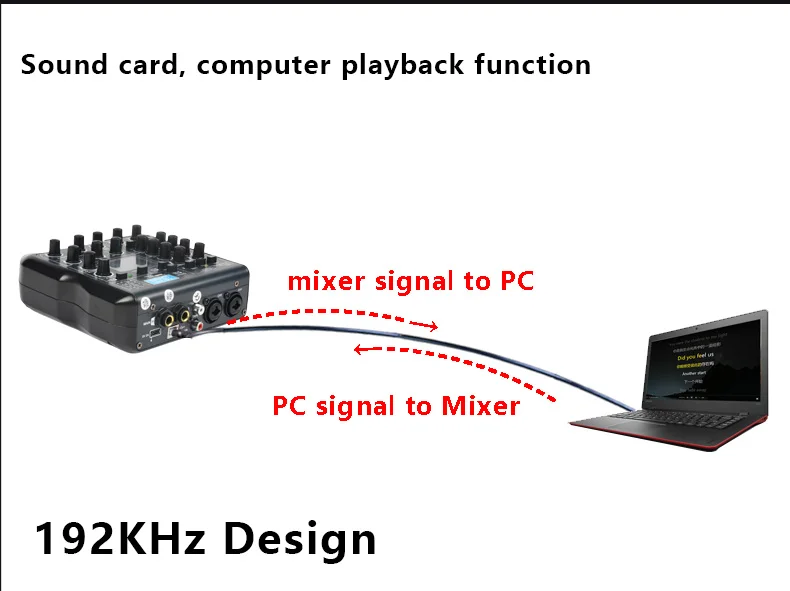

2. Sound Card, Computer playback function, Mobile Broadcast Function

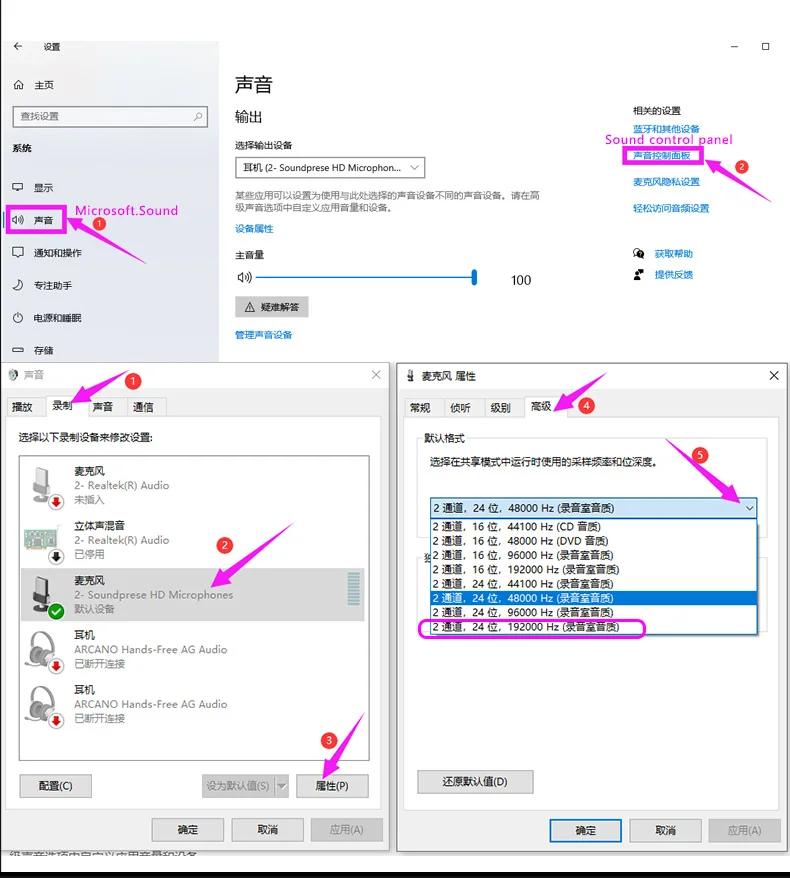

Built-in 192KHz sampling frequency design, we can connect mixer to computer to record with high quality
(Please note: you need have record program)

192KHz Design

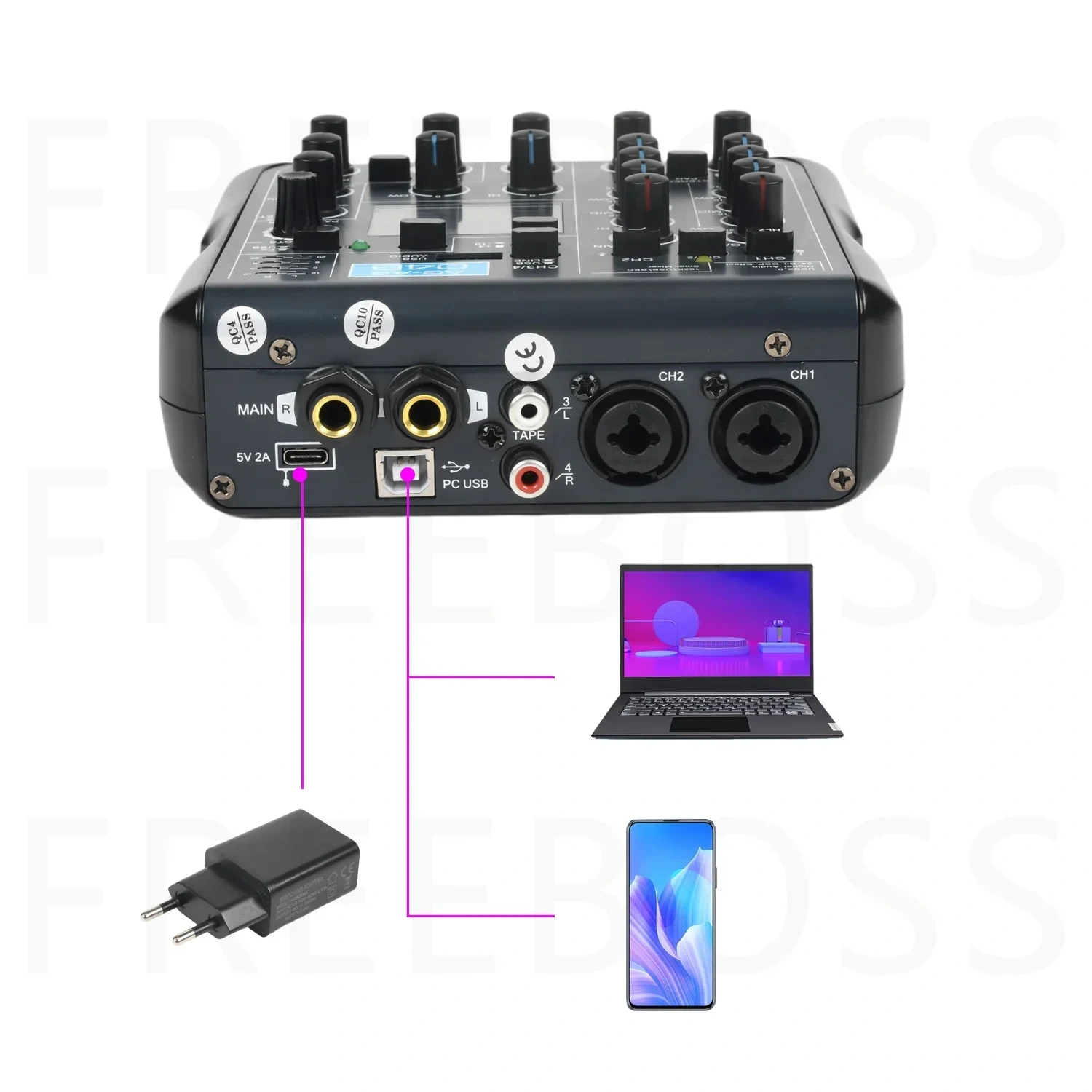

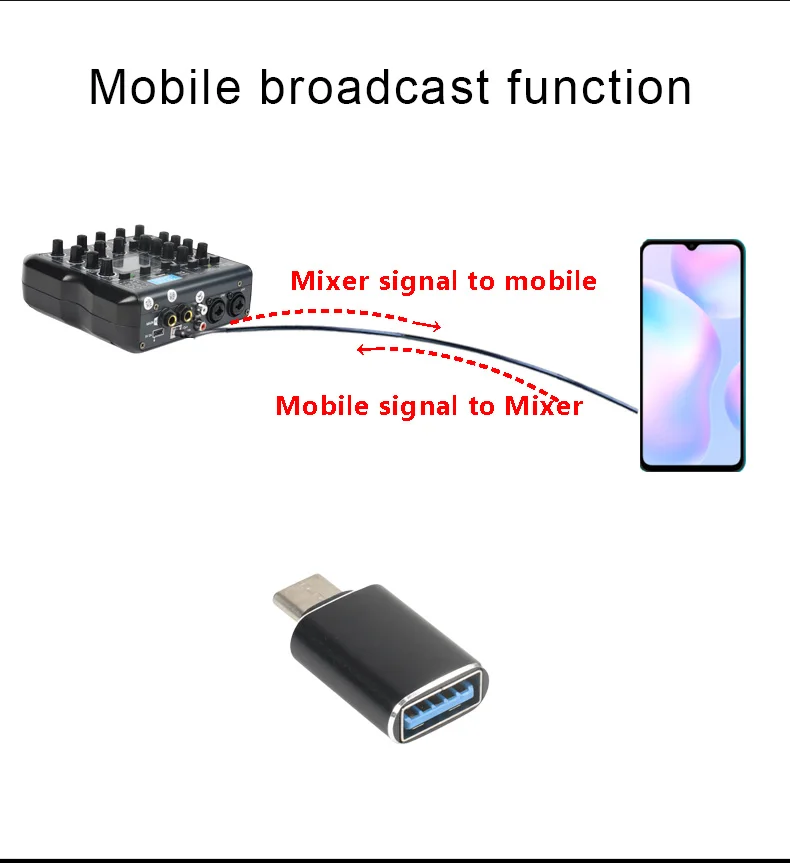

Connect to mobile

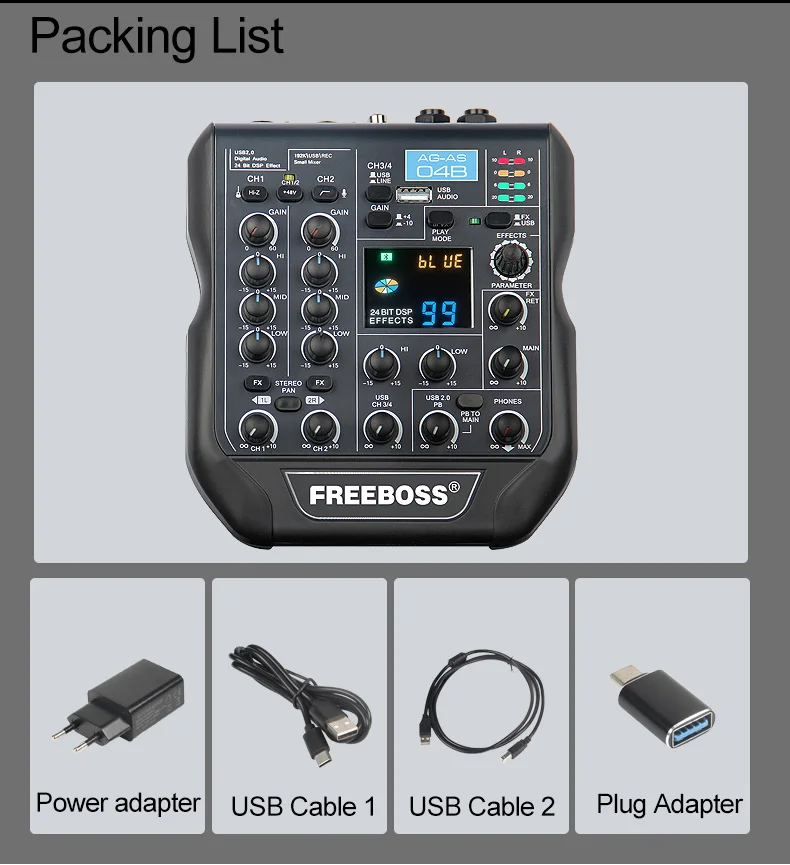

there is one piece Type A---Type C plug adapter for you to connect to mobile. if the adapter is not suit for you, you need buy the adapter by yourself

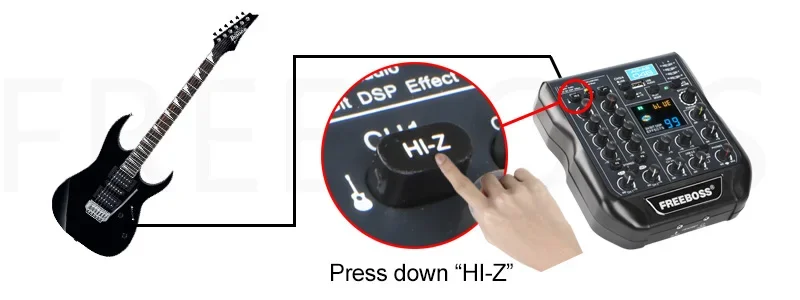

3. HI-Z button

When You connect guitar to mixer without DI box, press the button, you will get a good effect.

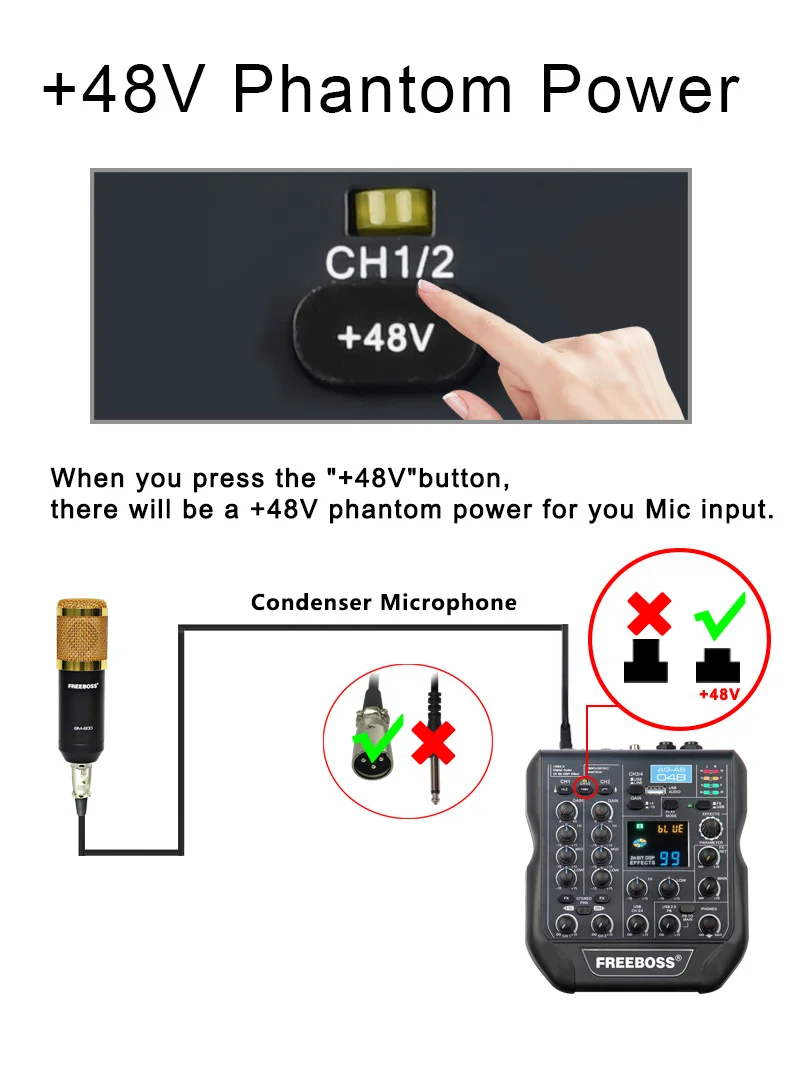

4. +48V phantom power

When you press the "+48V"button, there will be a +48V phantom power for you Mic input.

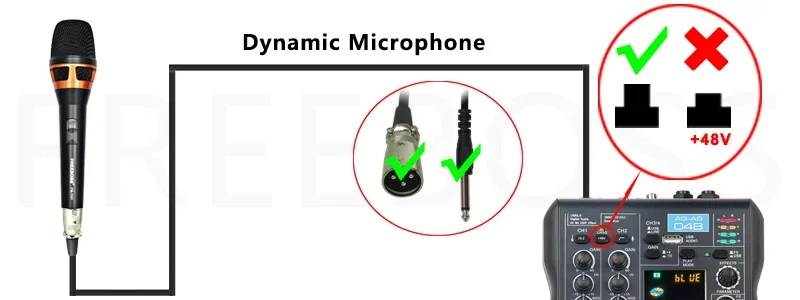

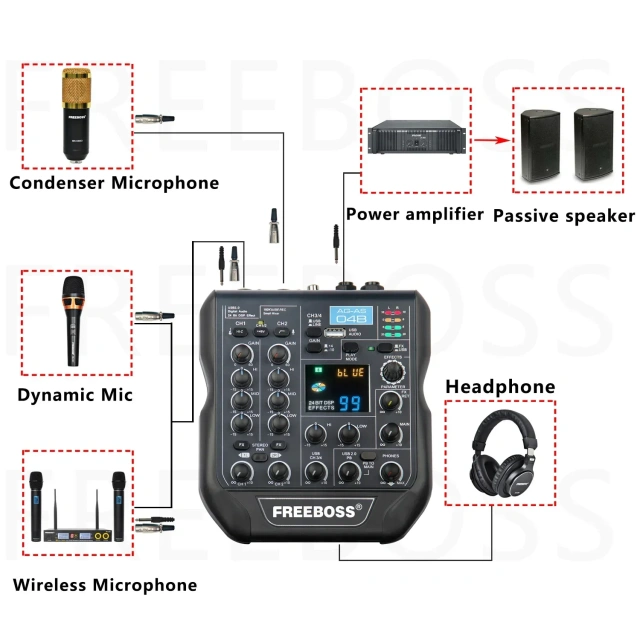

Connect to dynamic microphone

If your microphone is dynamic, please do not power on +48V phantom power

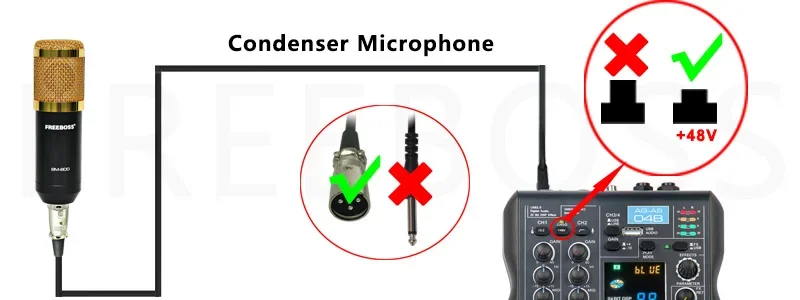

Connect to +48V condenser microphone

If your microphone supports +48V, please power on +48V phantom power.

1.5-9V condenser microphone

if your condenser microphone does not support +48V phantom power, please plug in the socket of the bottem.

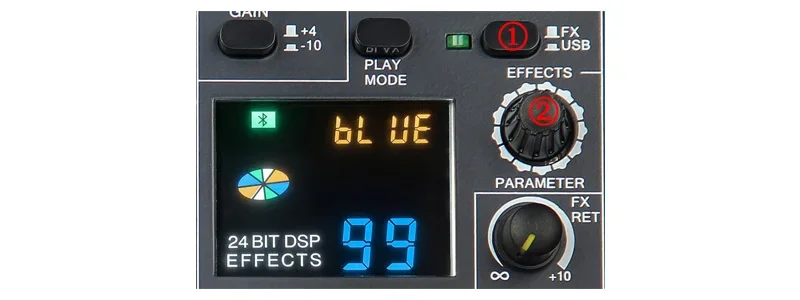

5. 24 Bit 99 DSP effects

There is 99 effects, you can choose the effects you like.
1. Press to choose "FX" status (Bounced up)
2. Rotate to choose the effect.

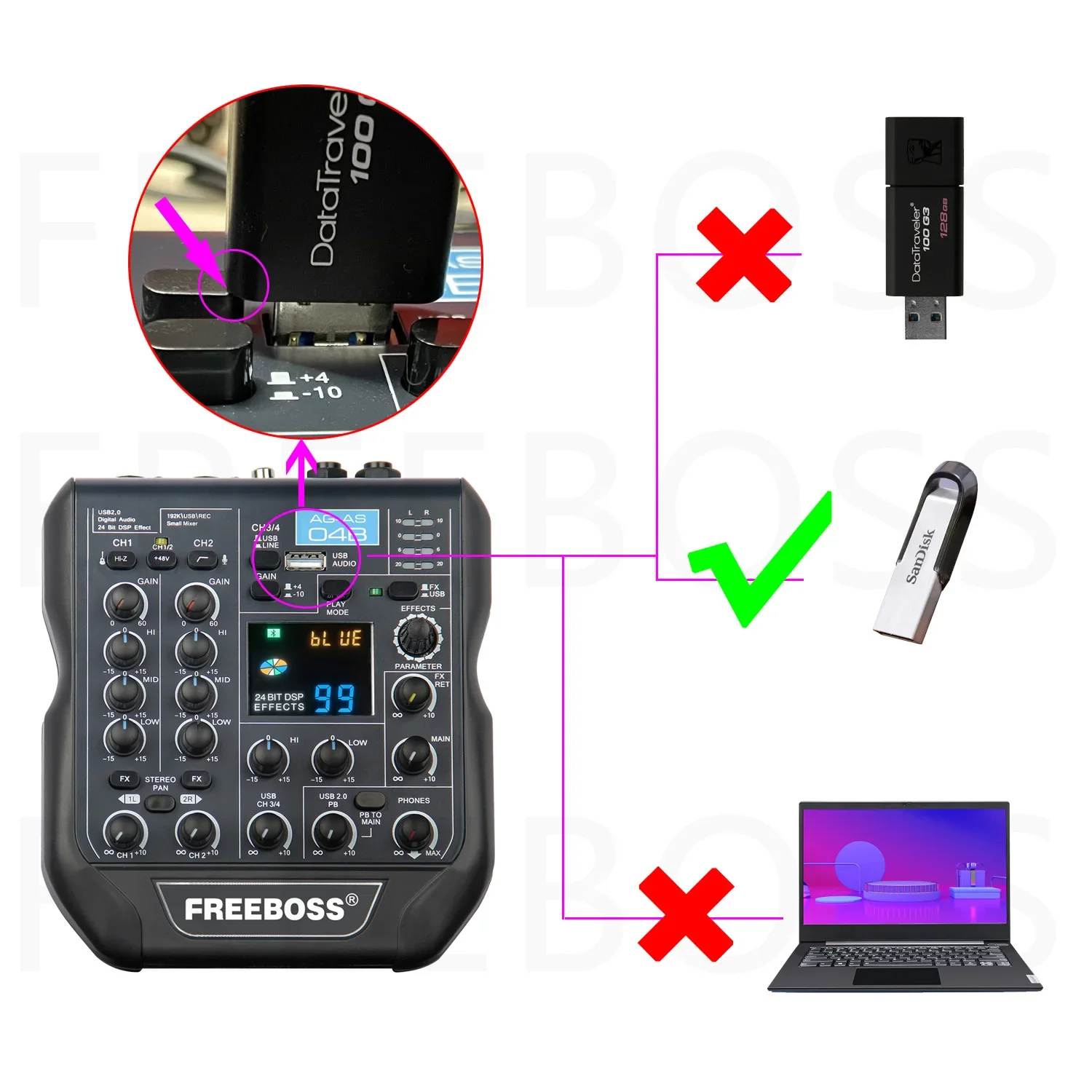

6. USB Play and Record

1. USB stick format: FAT32
2. Play format: FLAC, MPE, WAV, WMA,
3. Record Sampling frequency: 48KHz
4. Record format: MP3

Please note:
If USB stick is too big, there will no enough space. Please choose small size USB stick.

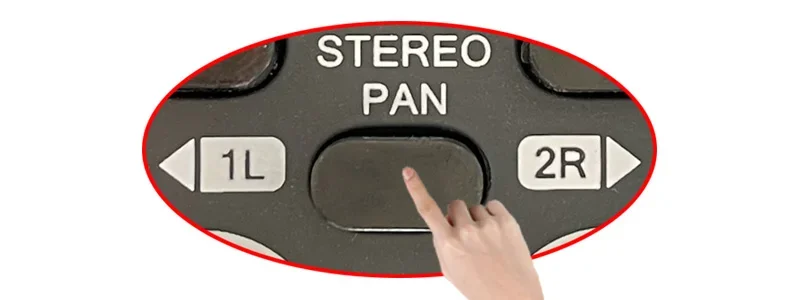

7. Stereo Record

Press down the "PAN" button, CH1 will be left channel, CH2 will be right channel, now you can record stereo music.

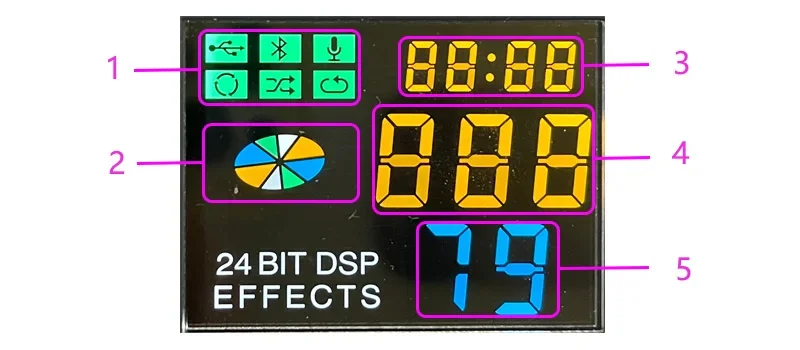

8. Screen

1). Function Display

     A.USB stick play:

        a) Loop Playback

        b) Random

        c) Single Cycle

    B.  Bluetooth

    C. Record

2). Display the running status or bluetooth connection status

3). Song time display

4). Song number display

5). Effect types

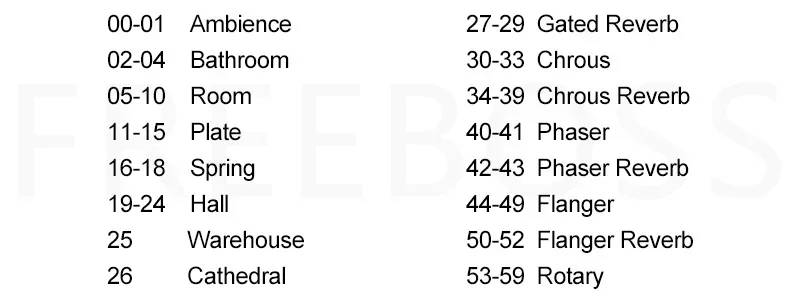

(Please refer to the list of effects)

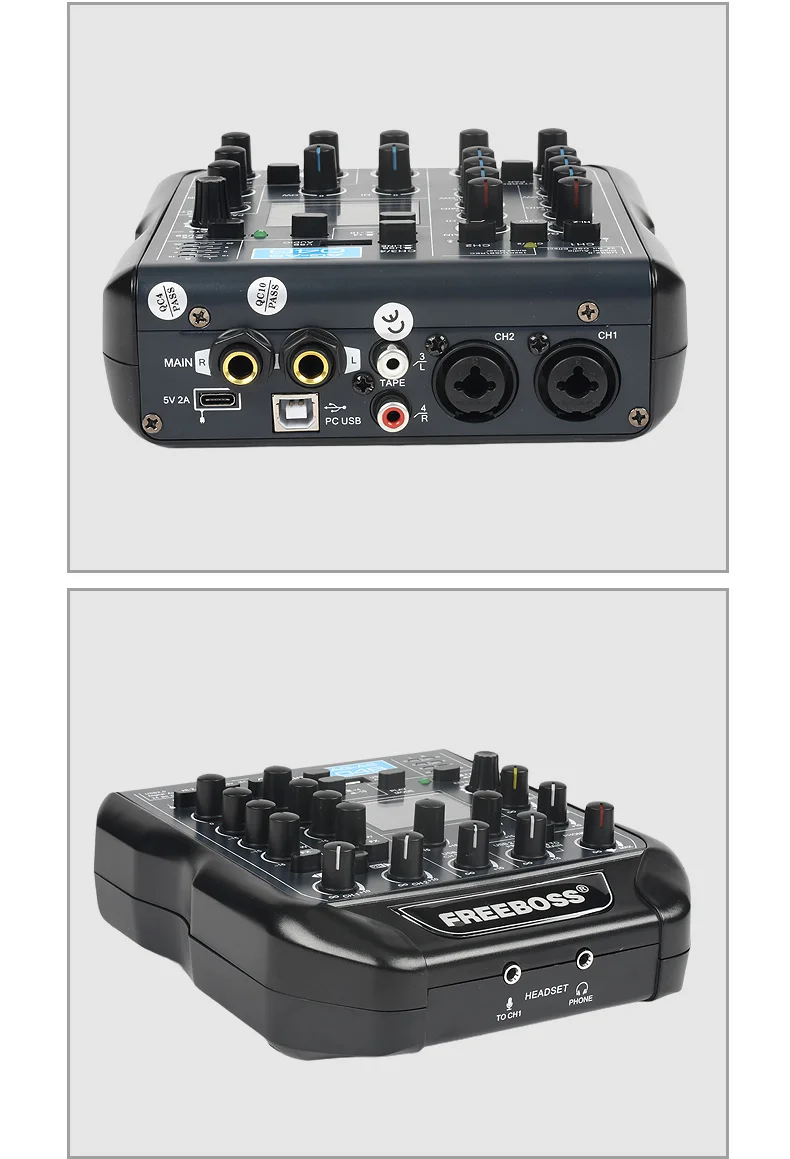

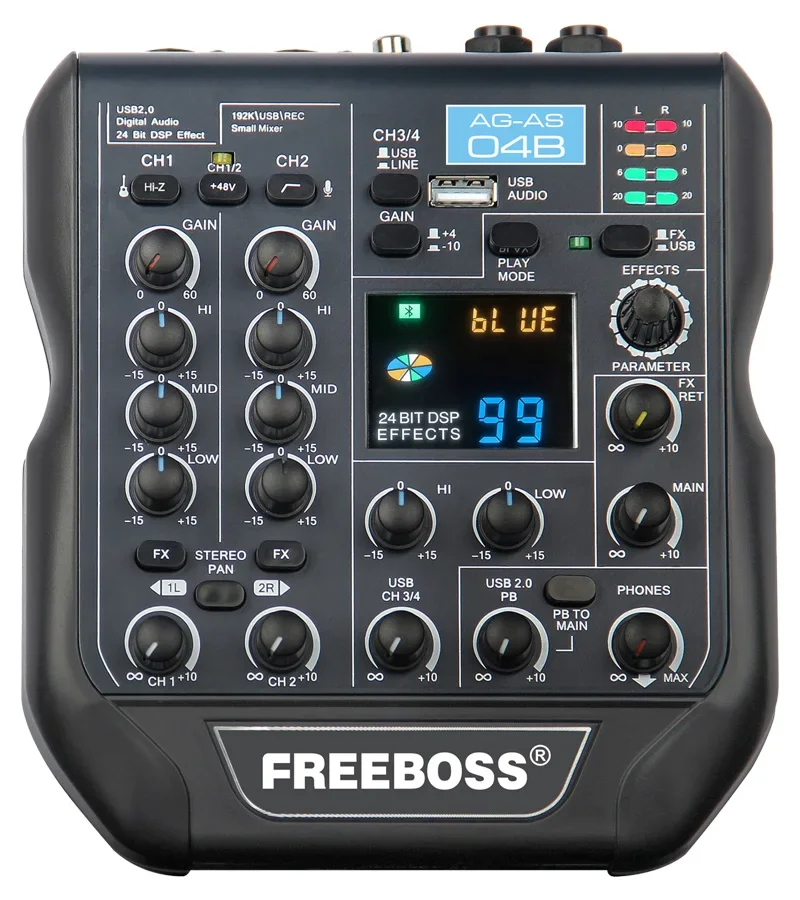

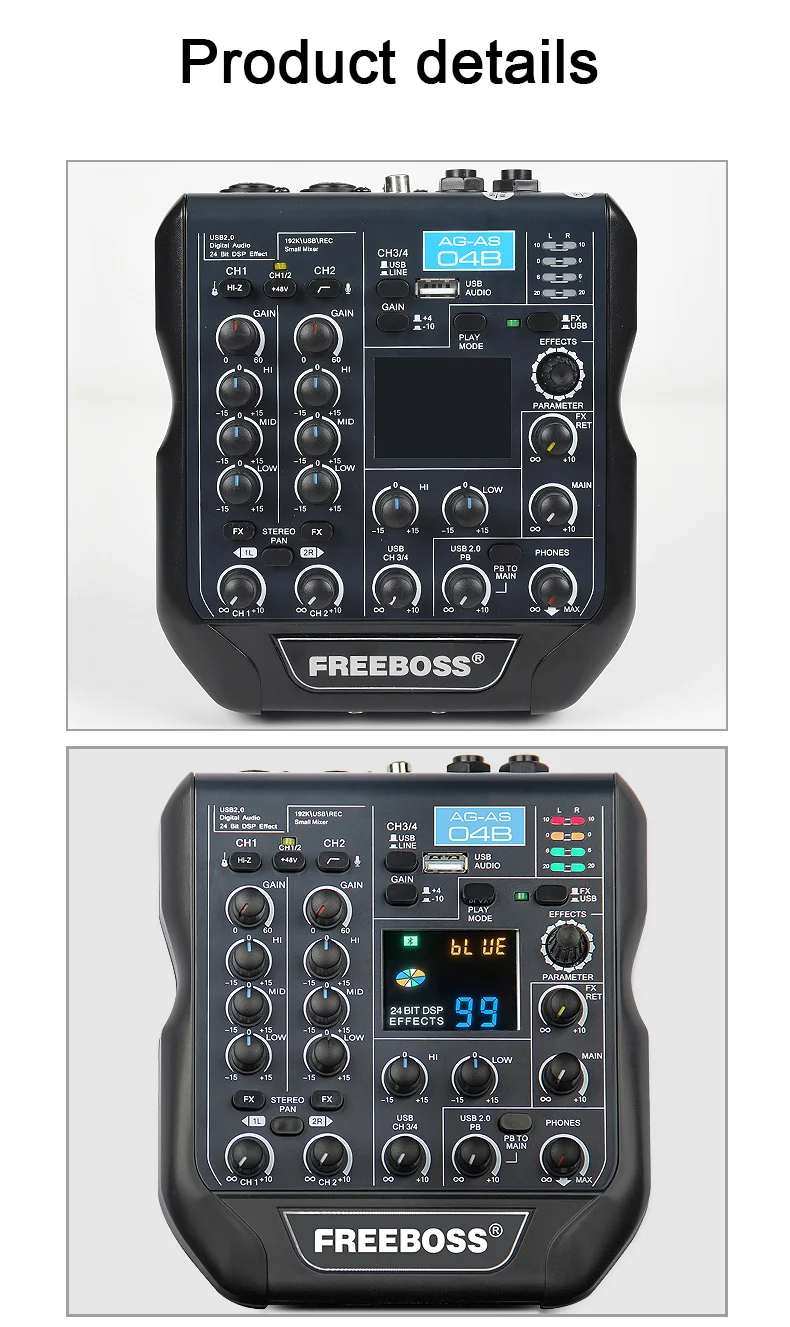

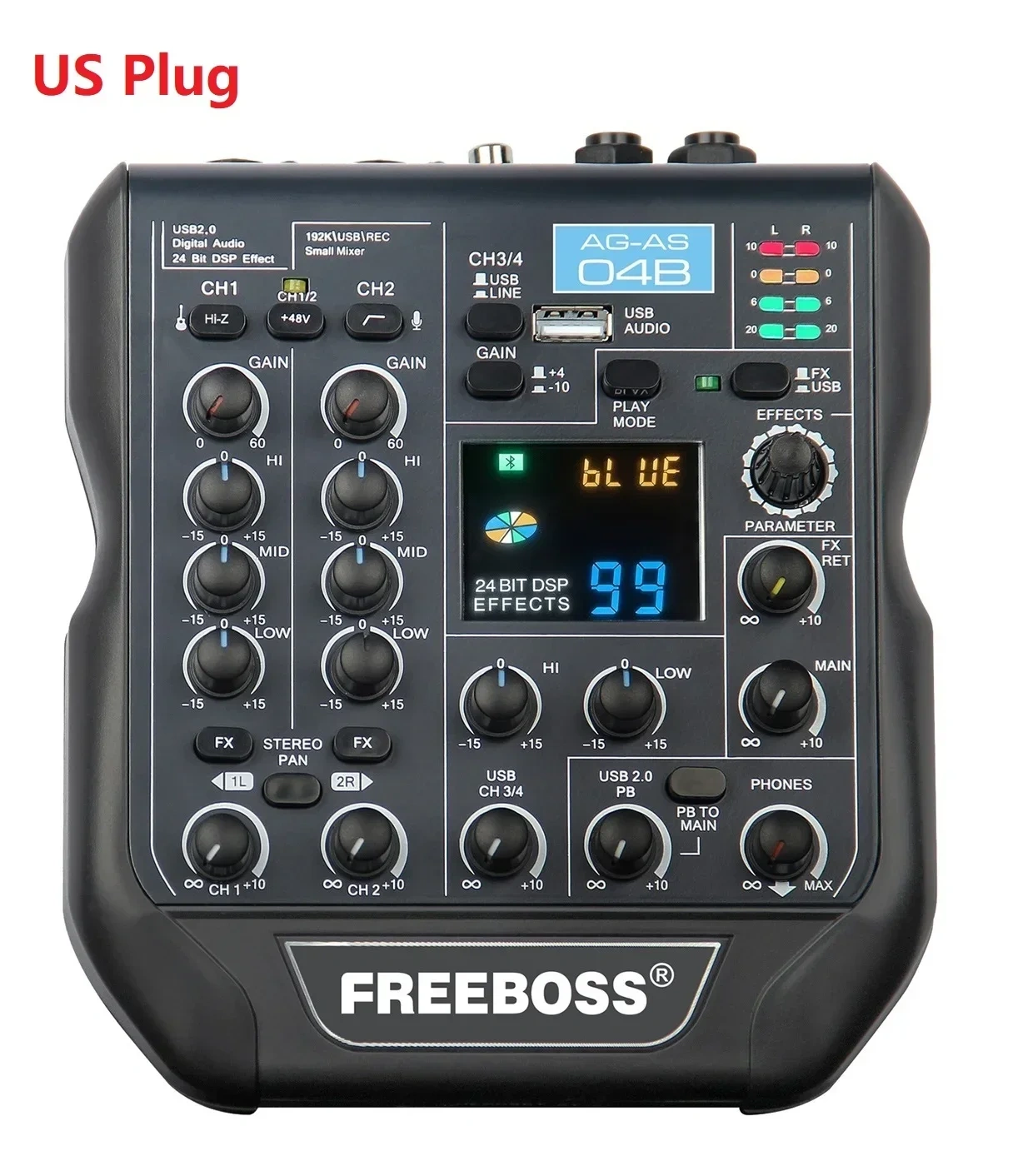

Product pictures
