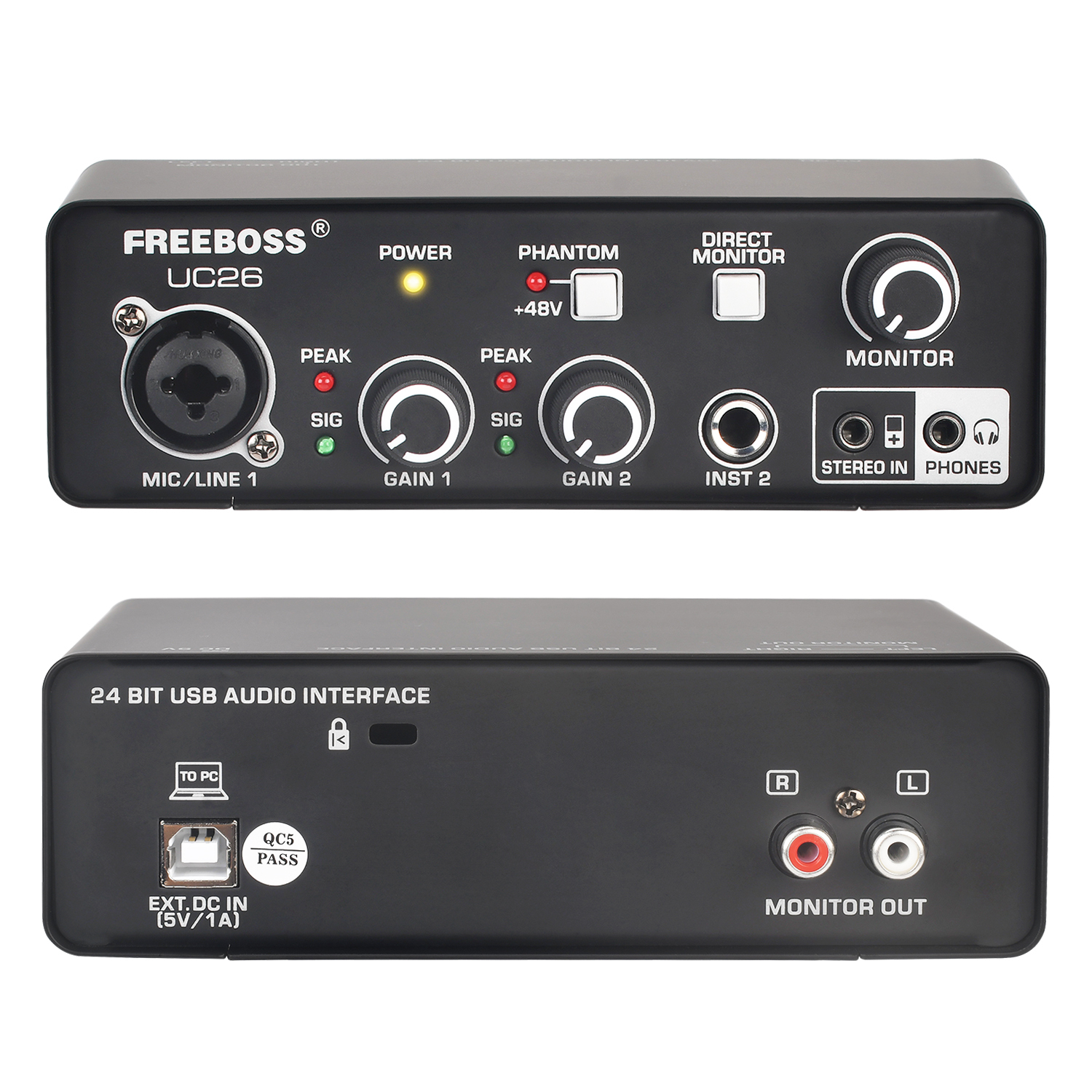

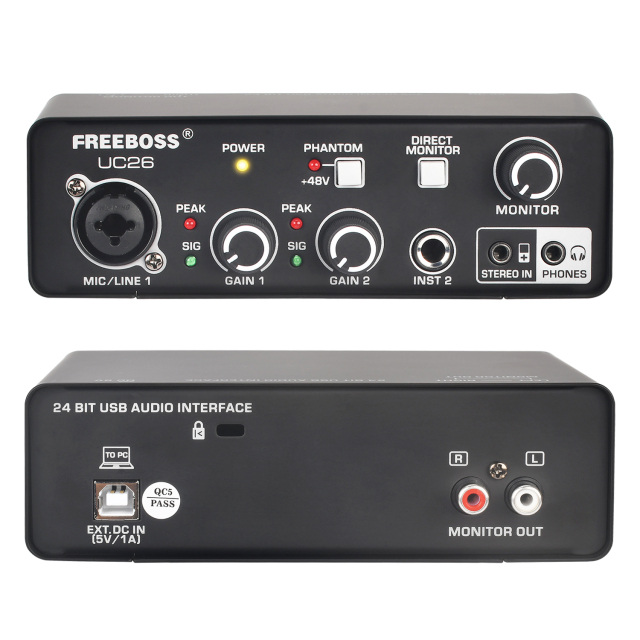

FREEBOSS UC26
3 channels recording audio interface support ASIO4ALL 48V phantom power high impedance INST socket direct monitor driver-free sound card with 3.5mm stereo input .
Selling Point
1. Input: 3 channels.
Output/Recording: Mono (Left is same as right).
2. Free drive.
3. Direct monitor.
4. Support ASIO4ALL.
5. 48V phantom power.
3 Input Channel
1. CH1------XLR + 6.3 jack,
2. CH2------6.3 jack, for guitar.
3. CH3------3.5 stereo jack.

Free Driver
No need driver.
Suit for Window or Mac OS.

Support ASIO4ALL
1. ASIO4ALL is only for windows
2. We do not supply the software, please download it by yourself.
3. Do not support: ASIO
4. ASIO4ALL recording: Mono (Left is same as right).

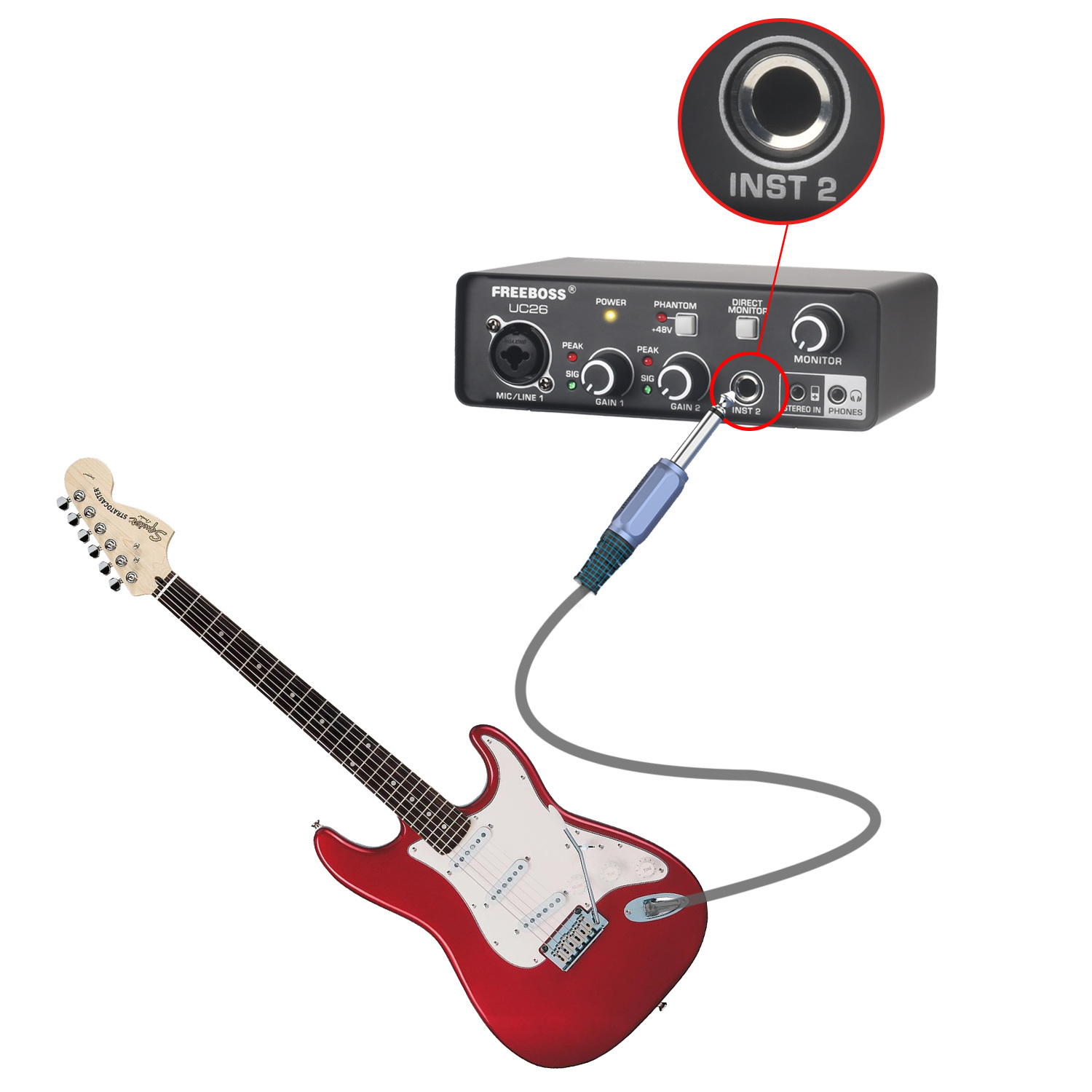

High Impedance INST Socket

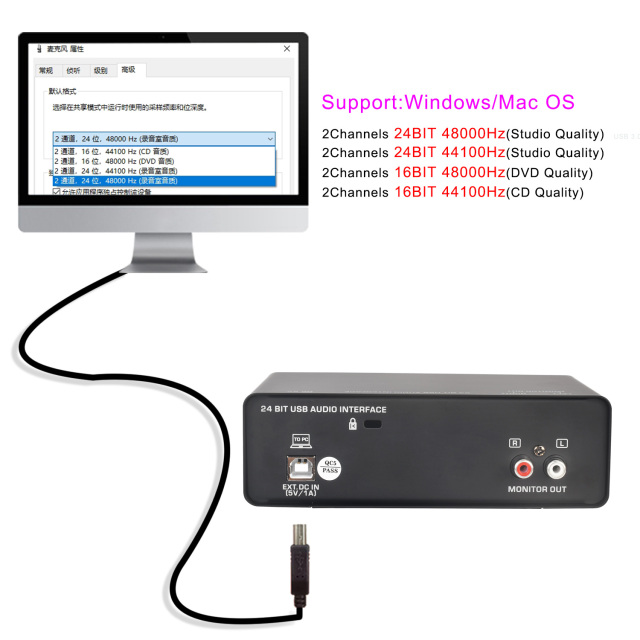

Connecting a computer
1. Computer settings.

2. Computer software playback settings.

3. Computer playback volume adjustment.

4. Computer Recording.

5. Recording rate:

Direct Monitor

48V Phantom Power
48V phantom power is only for XLR jack, not for 6.35 jack.

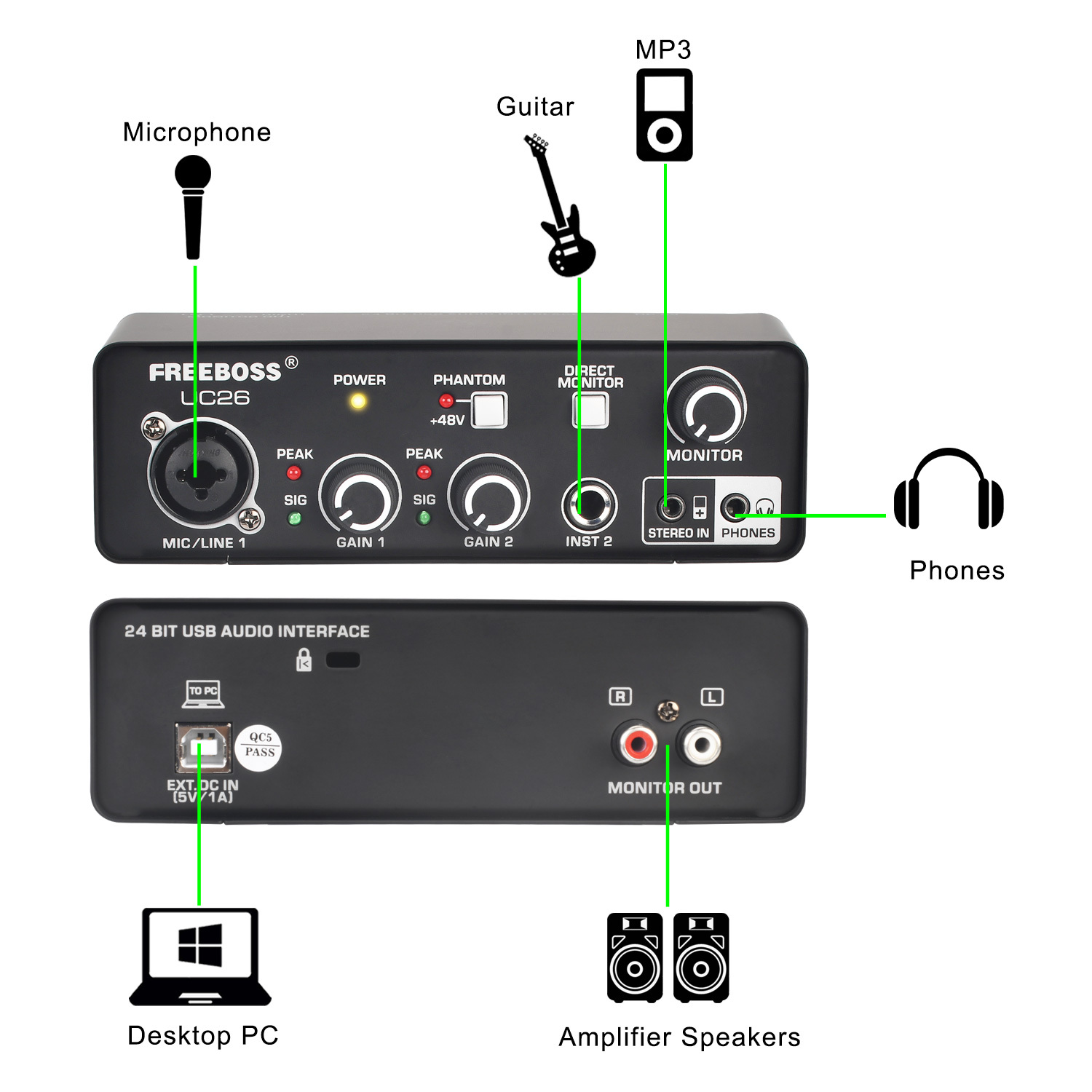

Connections with other devices
1. 48V condenser microphone
If your microphone is a 48V condenser microphone, please use XLR plug connect to sound card and turn on 48V phantom power, otherwise 48V condenser microphone will not work on sound card.

2. Dynamic microphone
If your microphone is a dynamic mic, we recommend using an XLR plug connect to sound card, because the sound will be small when you using the 6.35 plug connect to sound card.
(1) When using XLR plug, please turn off 48V phantom power, otherwise the dynamic mic may be burned.

(2) When using 6.35 plug, the 48V can be turned on or off, because 48V does not power supply to 6.35 socket.

3. Non-48V condenser microphone will not work on sound card.

Safety Lock

Non-slip Mat

Product Size

Packing List

Product Details
