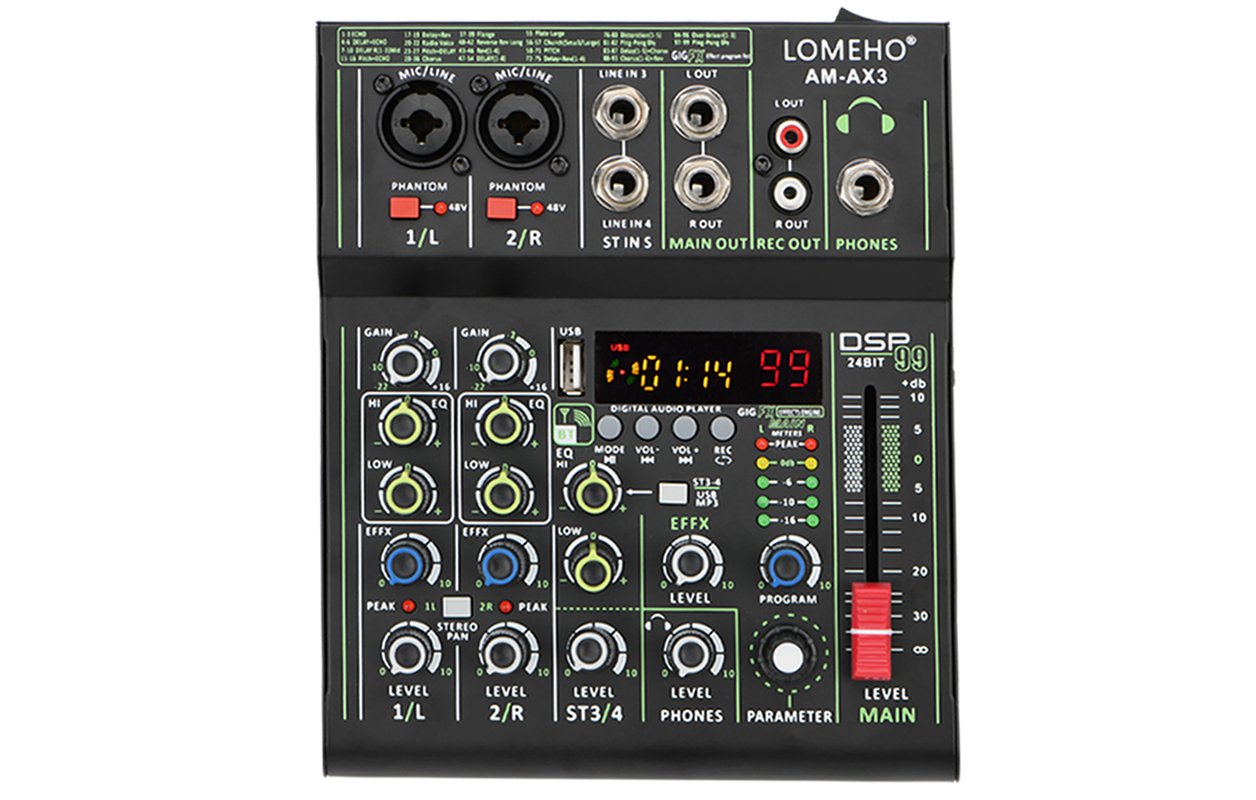

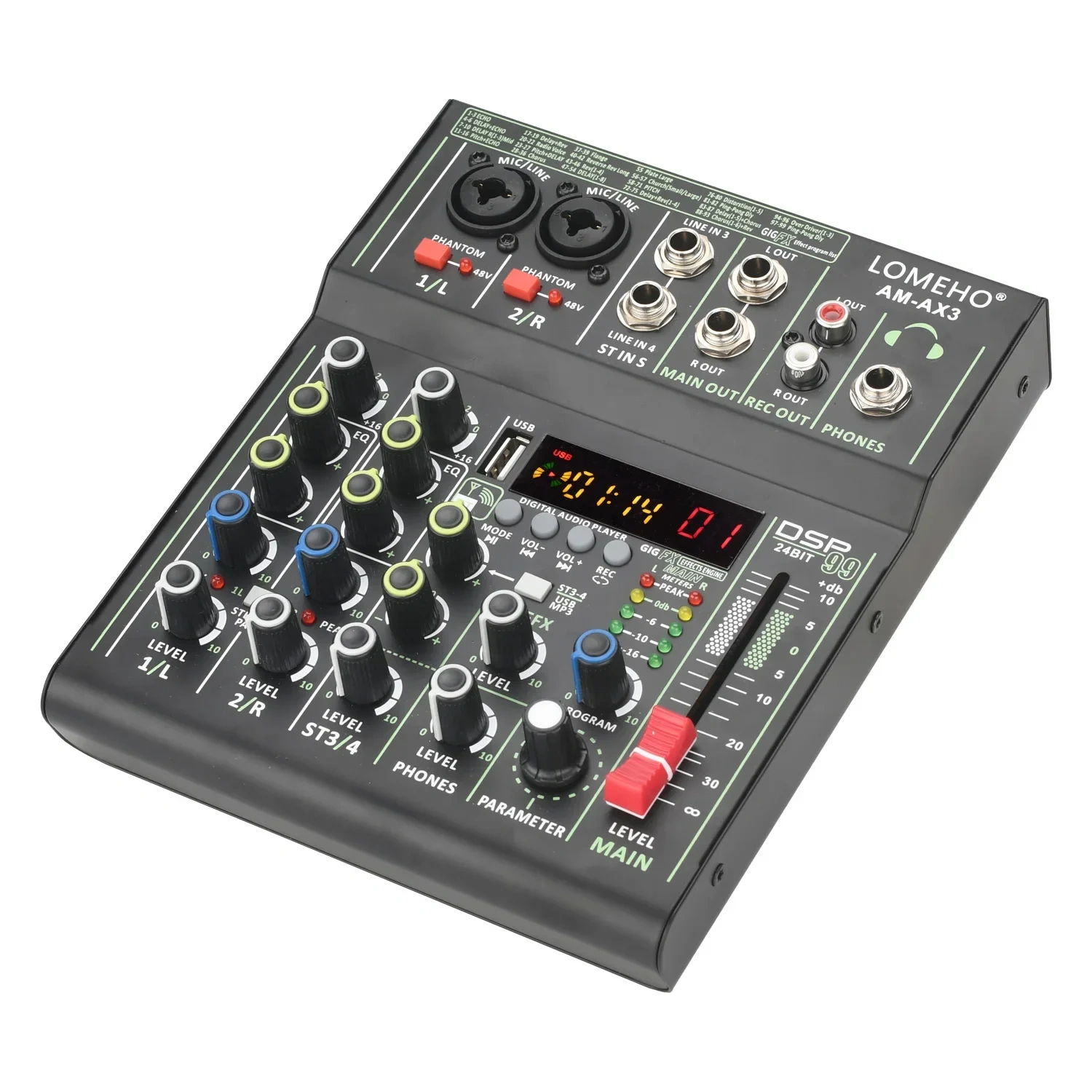

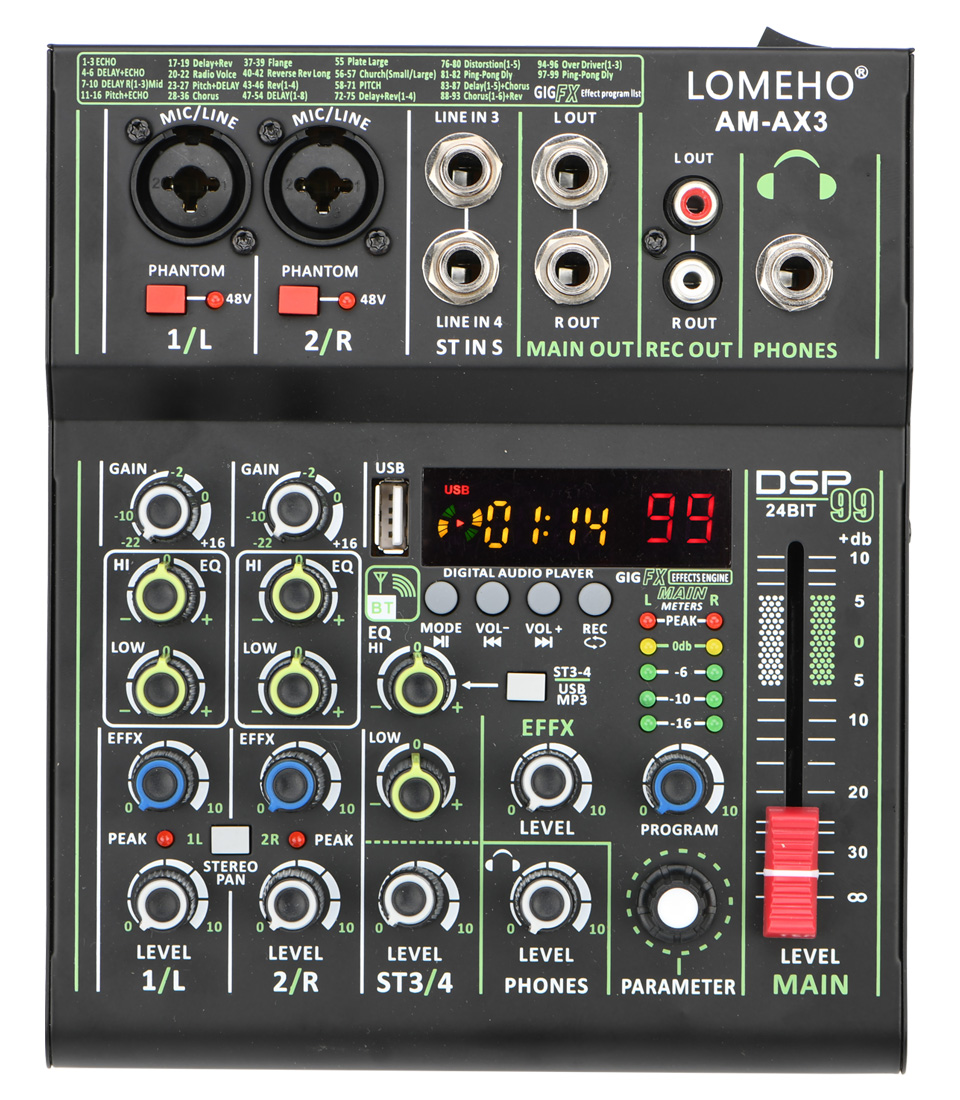

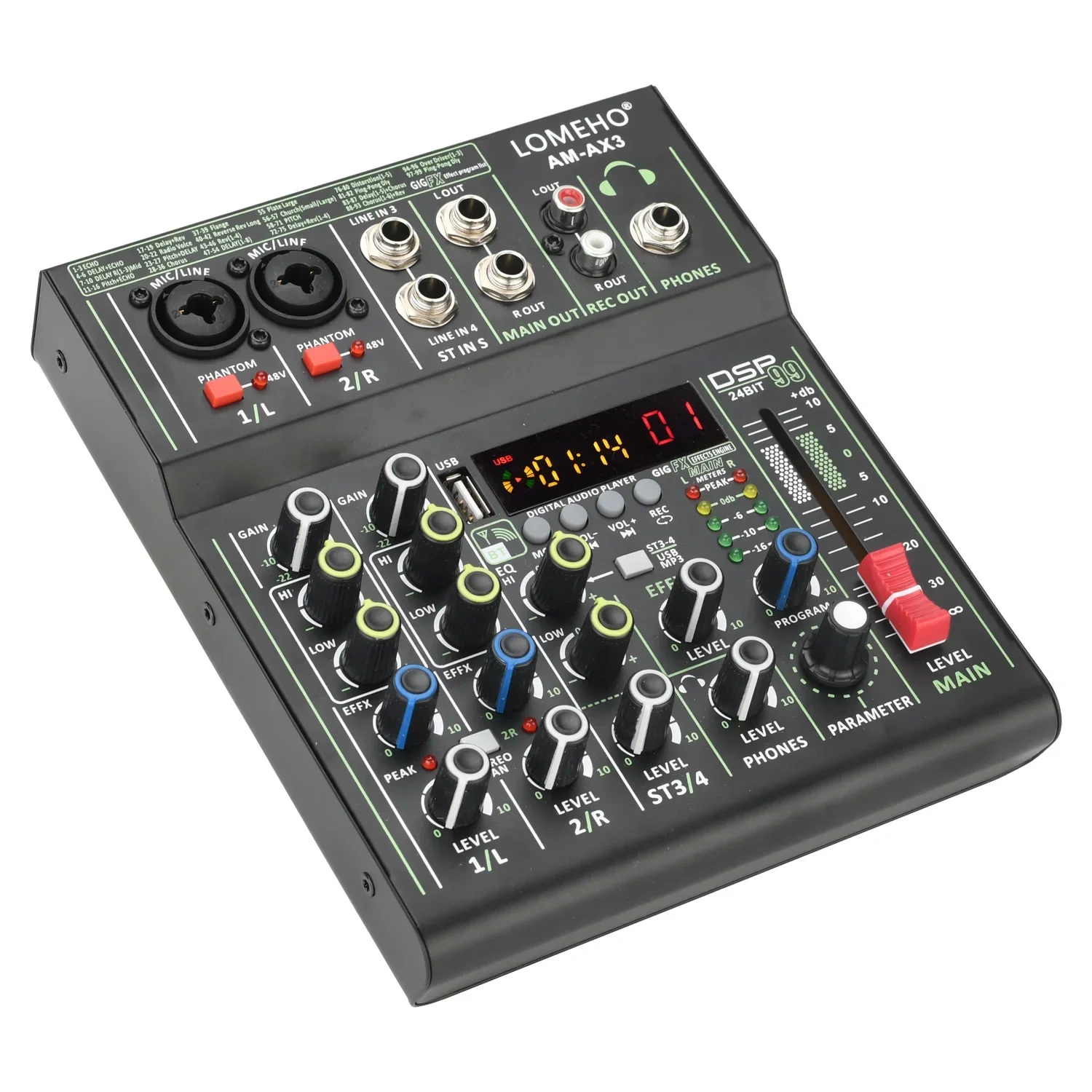

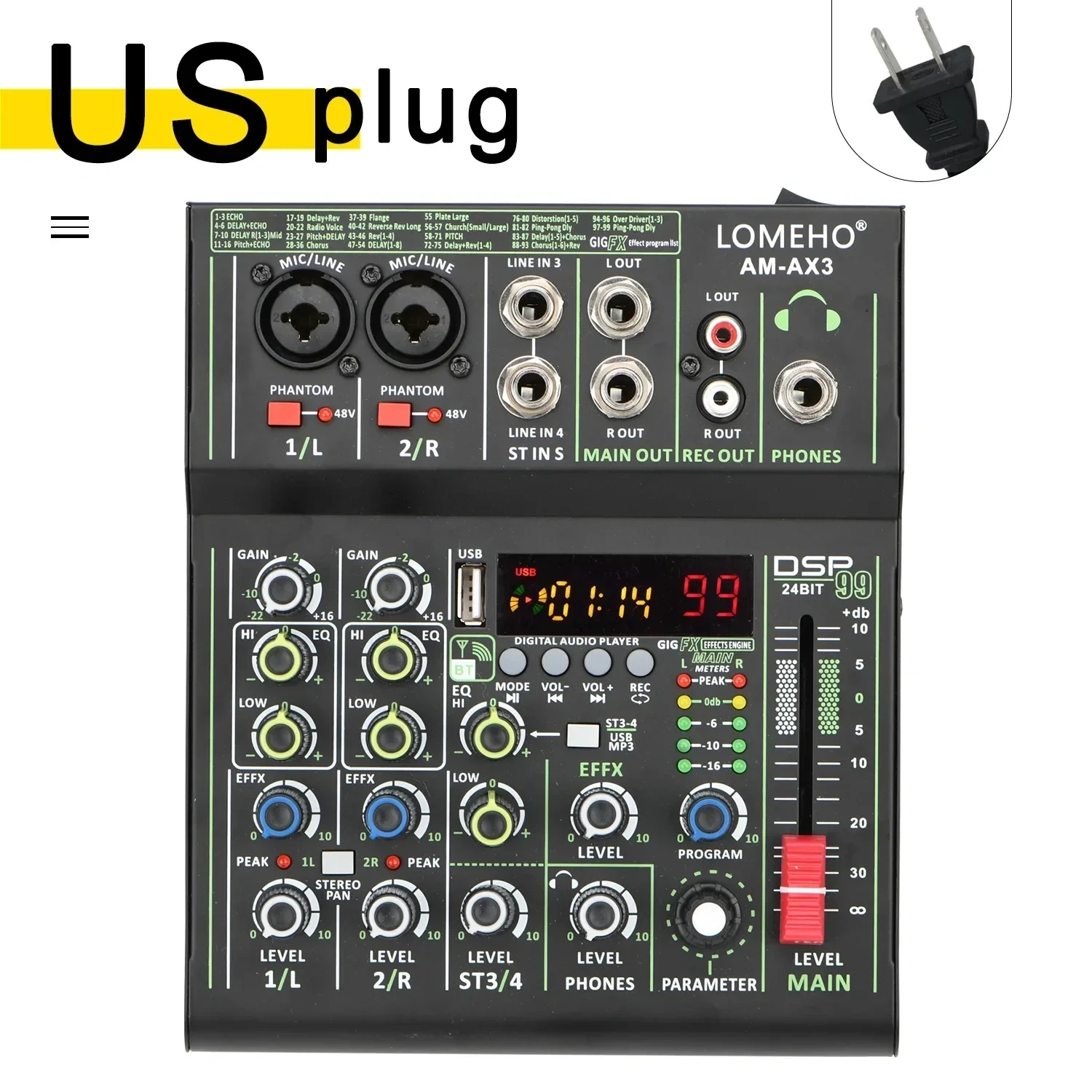

LOMEHO 4 Channel Audio Mixer Mini Portable Sound Mixing Console Bluetooth USB Play Record 99 DSP Effect 48V Dj Controller AM-AX3

Spanish Customers:

PARA NUESTRO ALMACÉN DE ESPAÑA, CÓDIGO POSTAL ESPAÑOL DESDE 35,38,51,52, ISLAS SIN SERVICIO.NO PODEMOS ENVIAR EL PAQUETE, TENGA EN CUENTA, ¡GRACIAS

Selling Point:

1. Power supply: DC 12V 2A

2. 4 Channel mixing console

3. Bluetooth function

4. 99 DSP Effects

5. USB Play and Record

6. Computer play and record

7. Individual +48V phantom power

8. Mini, portable

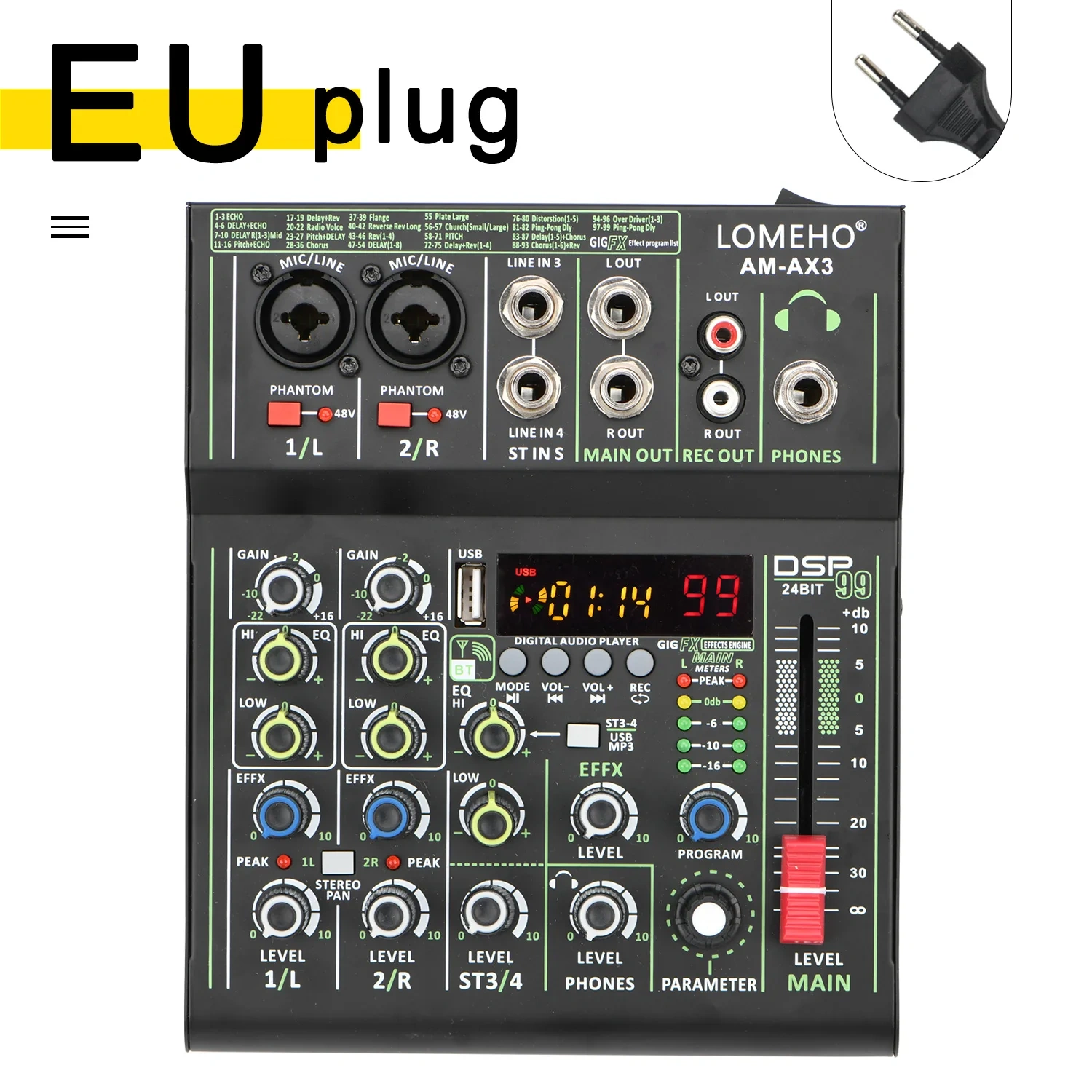

Power supply:

DC 12V 2A, EU plug

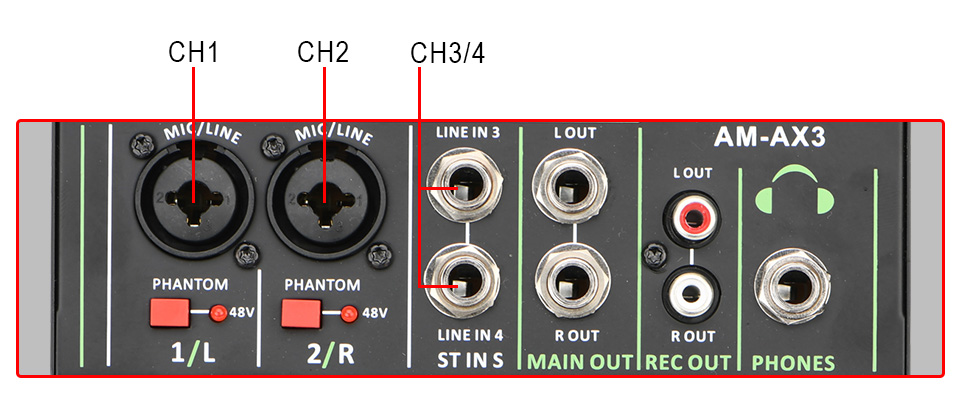

4 Channels

1). CH1/2 are Mono channels, CH3/4 is stereo channel

2). For signal from CH1/2, L/R of main out will output same signal

3). For signal from CH3, L of main out will output the signal, R will not output signal

4). For signal from CH4, R of main out will output the signal. L will not output signal

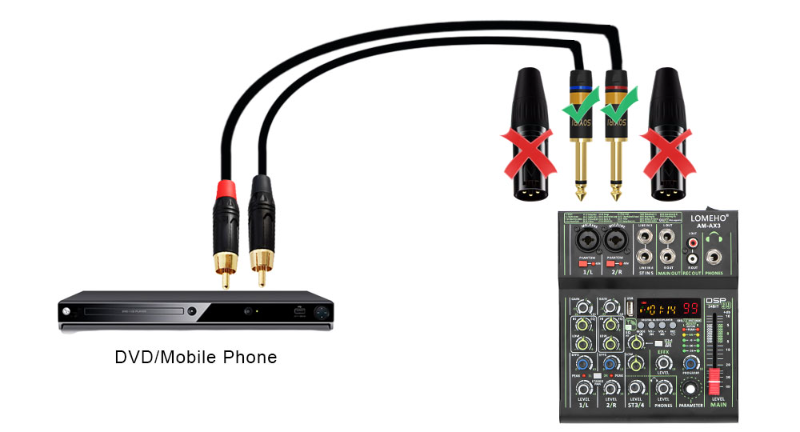

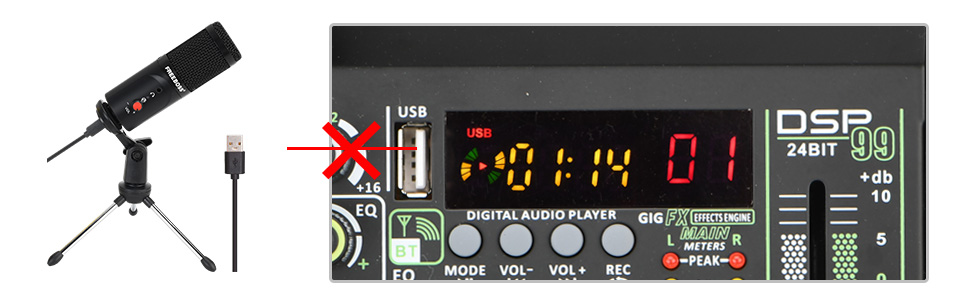

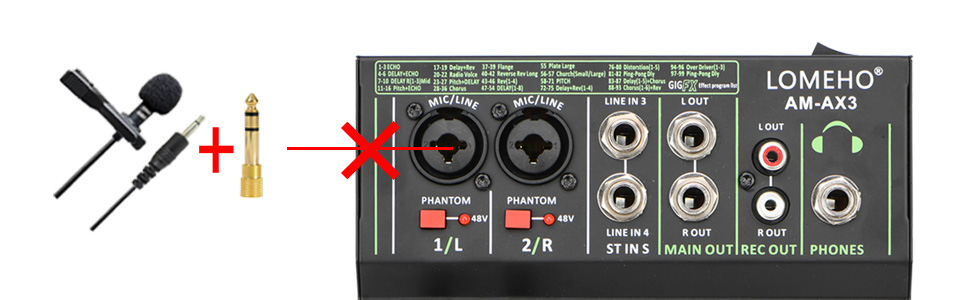

Common unconnectable input devices:

For these device, mixer can not supply working power, device can not work normal though you use plug adapters

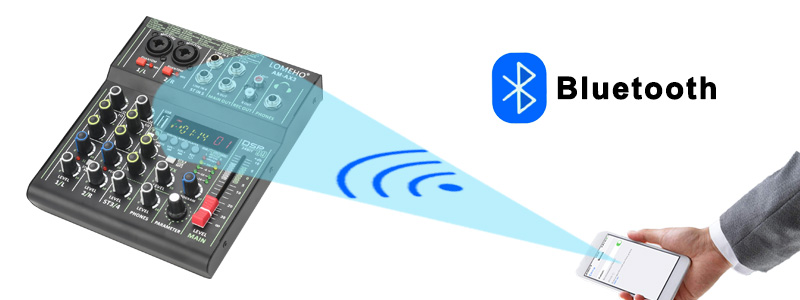

Bluetooth function:

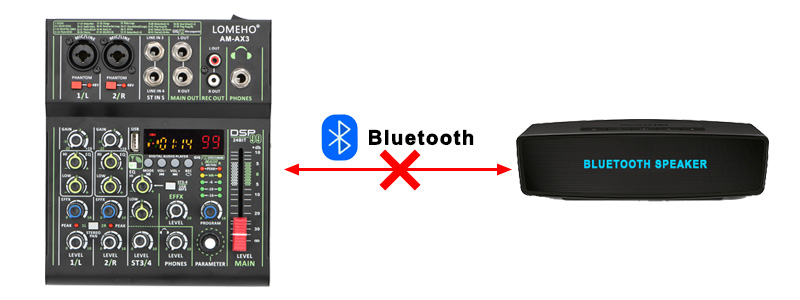

1.Mixer only can accept bluetooth signal, it can not send out bluetooth signal

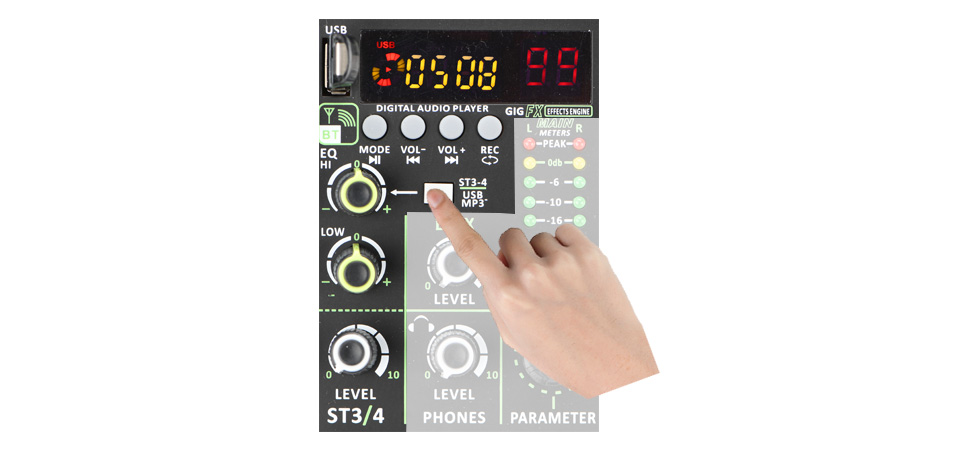

2. After pairing, please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output

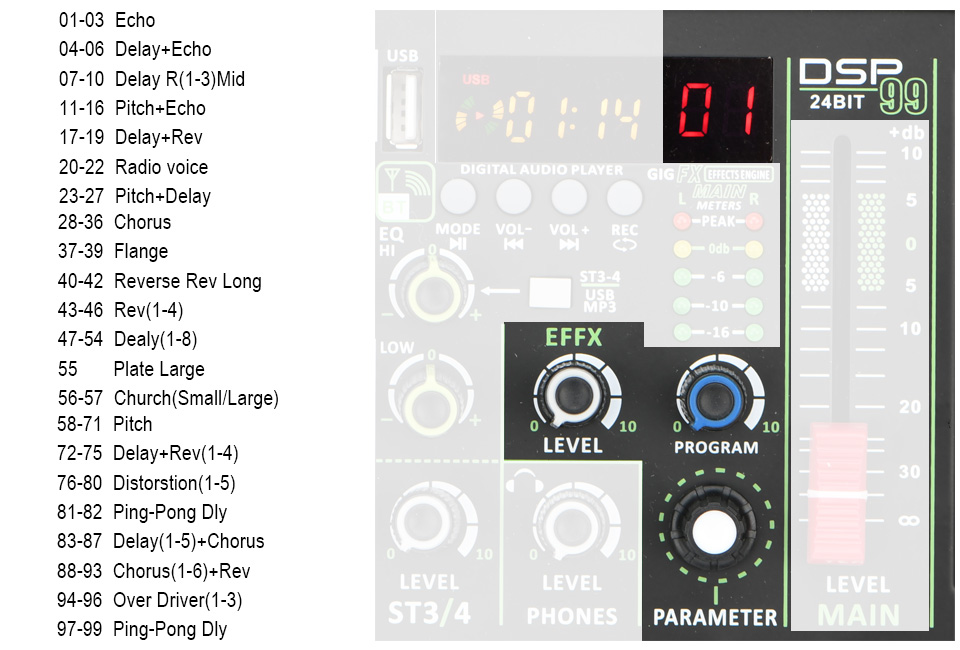

99 DSP effects:

1. Parameter: Choose effect

2. Program: Adjust parameter

3. Level: Adjust the output level

Connection with U-Disk

(U-Disk is not included,buyer need buy it by himself)

1. U-Disk format: FAT32 ( Do not support NTFS)

2. Play format: MP3, WMA,WAV,FLAC

3. Record format: MP3

(Before recording, please copy a song in the U disk, otherwise, the disk may not be possible to record)

4. Sampling frequency: 16 Bit 48KHz

5. Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output

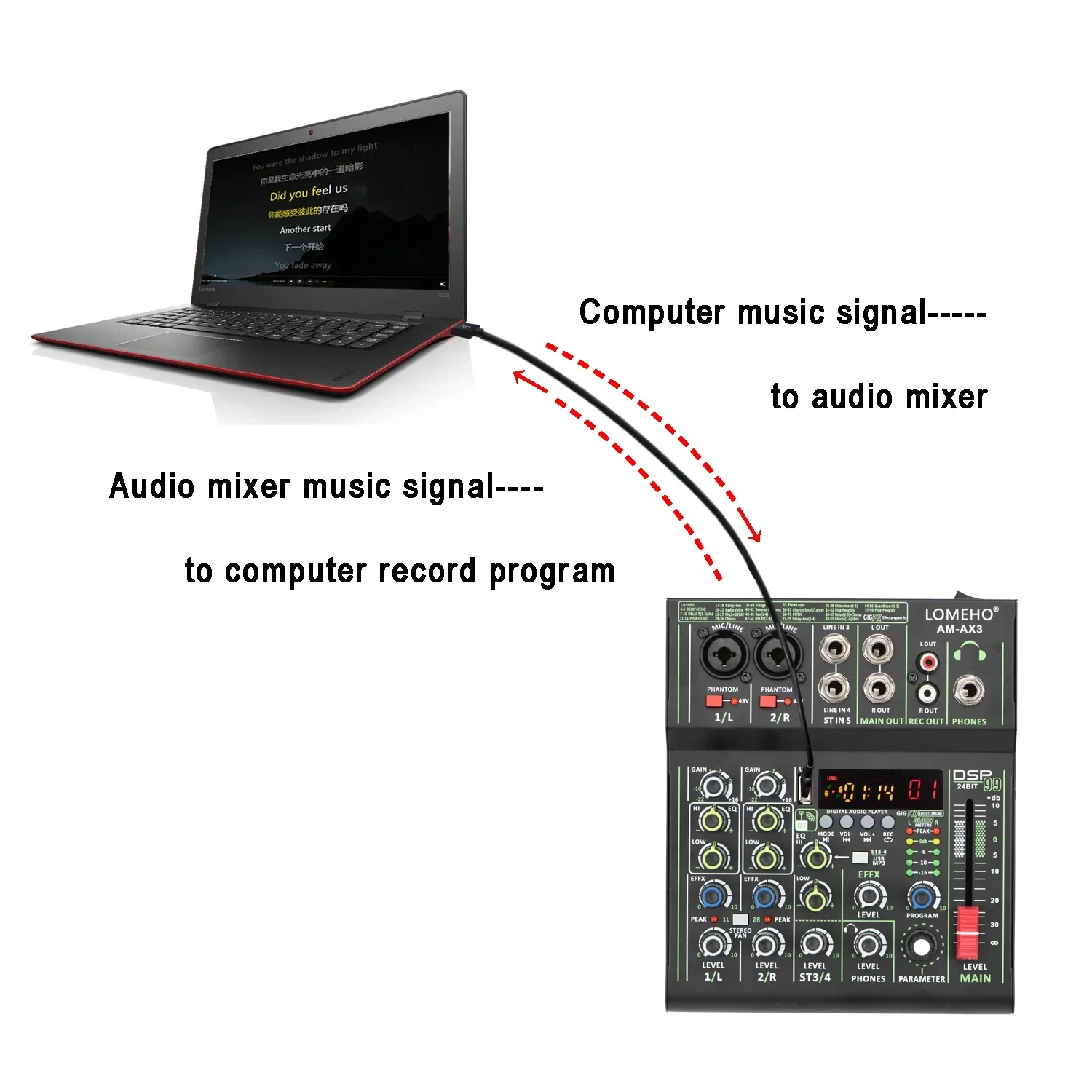

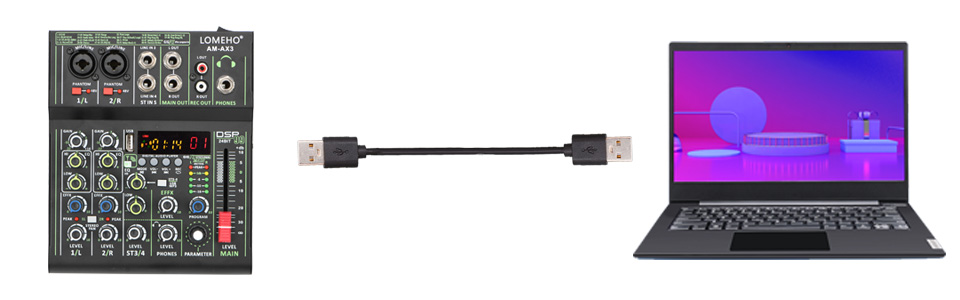

Connection with PC

(USB cable is not included, buyer need buy it by himself)

1. Computer play

Buyer downloads music play software, and choose mixer as speaker. Then computer music signal will come into mixer

Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.

2. Computer record

Buyer downloads music record software, choose mixer as microphone. Then mixer signal will come into computer

3. Please note, you only can record MONO music

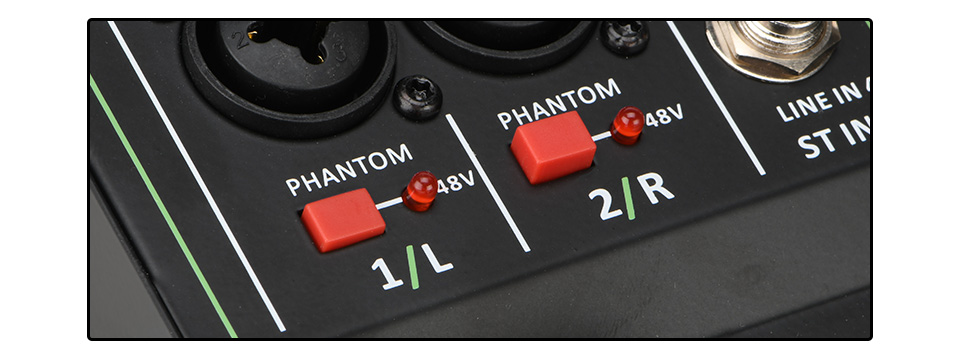

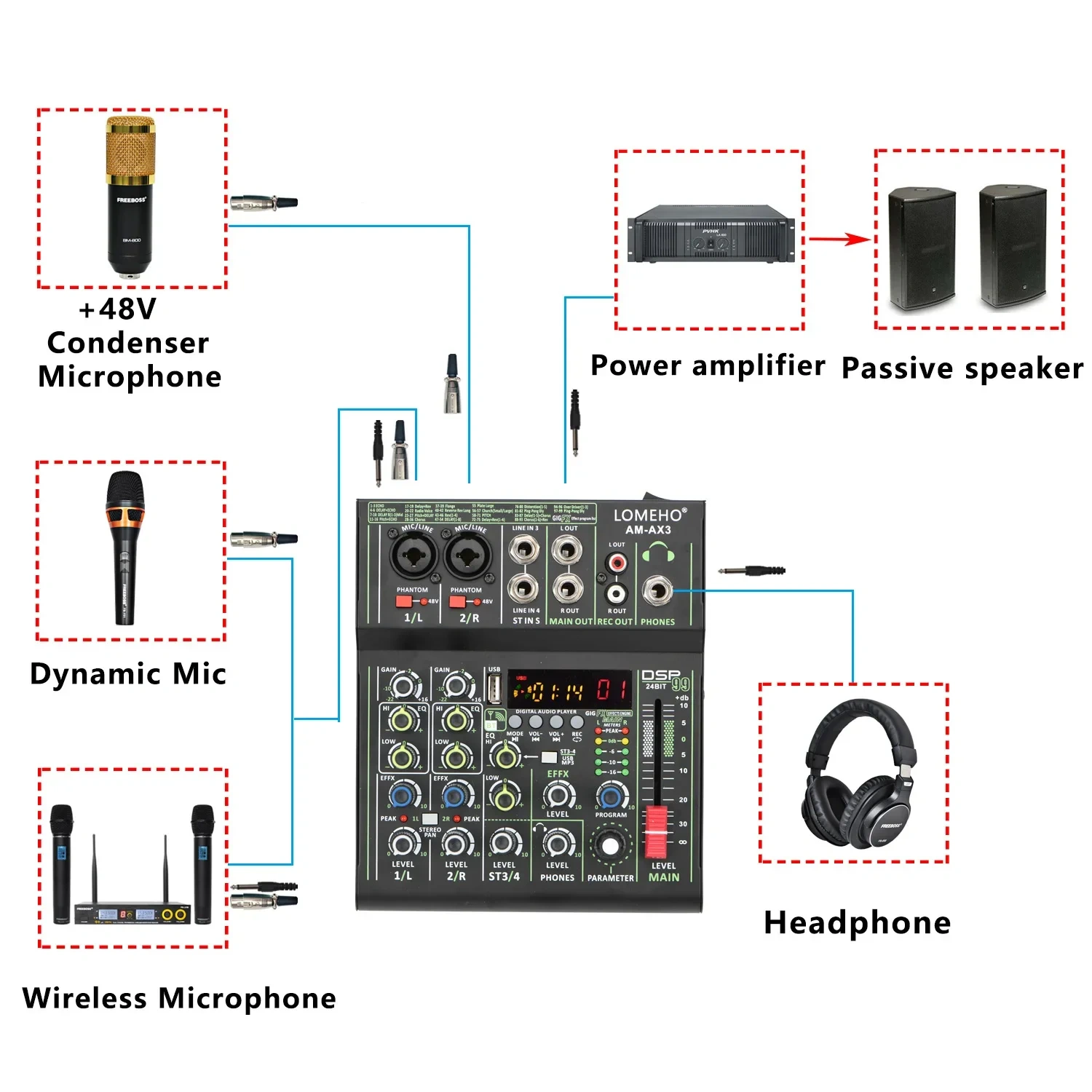

Individual +48V phantom power:

1. Phantom power is only for XLR socket

2. You can use +48V condenser microphone and dynamic microphone through XLR socket at same time

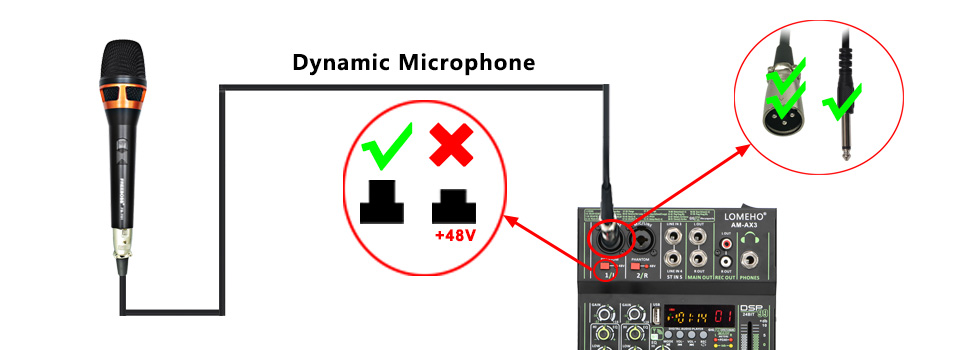

3. Connection with dynamic microphone

1) We recommend using XLR cable to connect mic to mixer. If you use 6.3 plug,the volume will be small

2) Please do not power on +48V phantom power, otherwise the power maybe burn the dynamic microphone

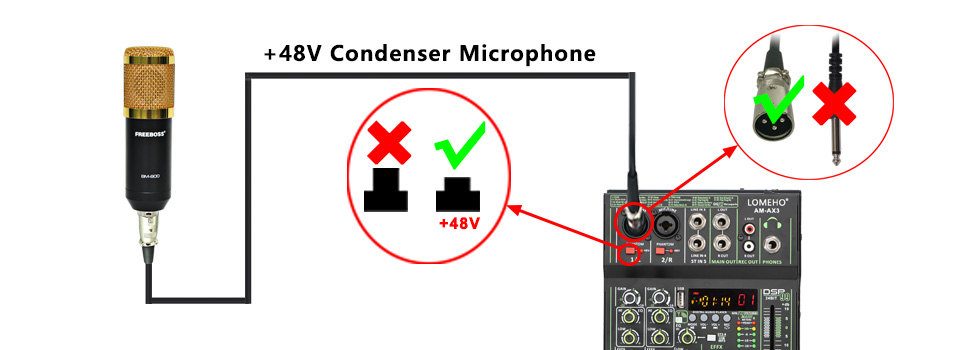

4. Connection with +48V condenser microphone

1) If your condenser microphone supports +48V, please power on +48V phantom power

2) If your condenser microphone does not supports +48V, you can not use the microphone

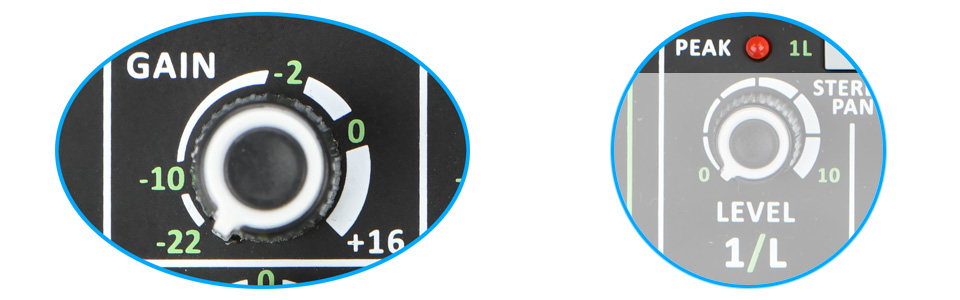

Gain knob:

When signal increase, the noise will also increase.

And please note: When peak light is on, signal is distortion.

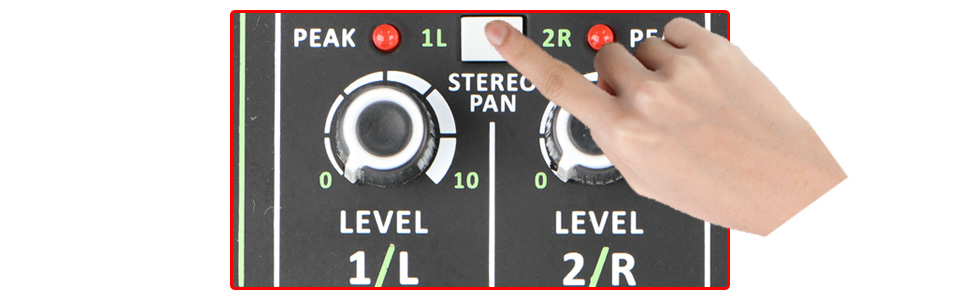

Stereo Pan:

1. Button is bounced up: [MONO]

Sound input to channels 1/L or 2/R can be heard from both the right and left speakers. If you use the 1/L or 2/R individually, set the switch to this setting

2. Button is pressed down:[STEREO]

Sound input to channel 1/L can be heard from only the left speaker , and the sound input to channel 2/R can be heard from only the right speaker

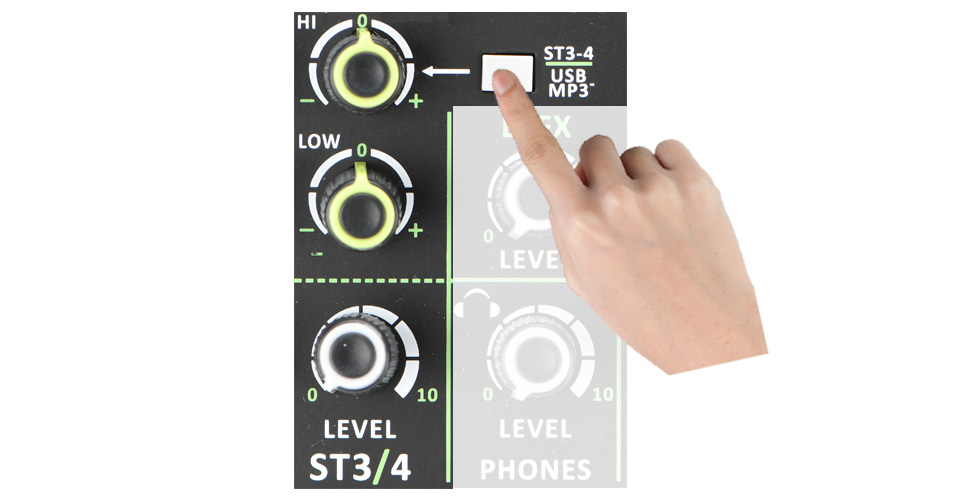

ST3-4/USB MP3:

Line input signals : Button is bounced up

U-disk/bluetooth/pc input signals: Button is pressed down

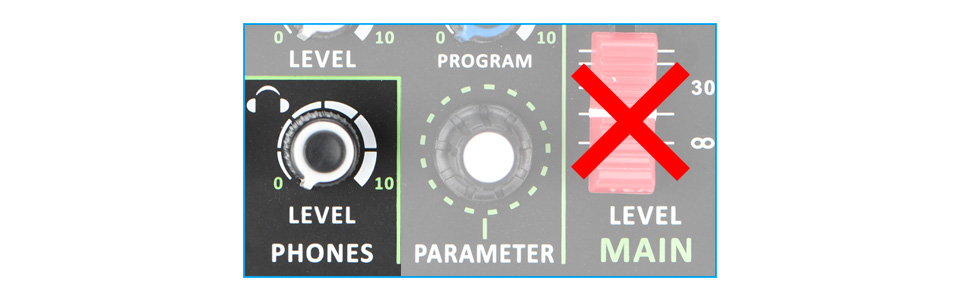

Headphone volume control:

1. [LEVEL PHONES] Knob can adjust the volume of headphone

2. [MAIN OUT] fader do not control the volume of the headphone

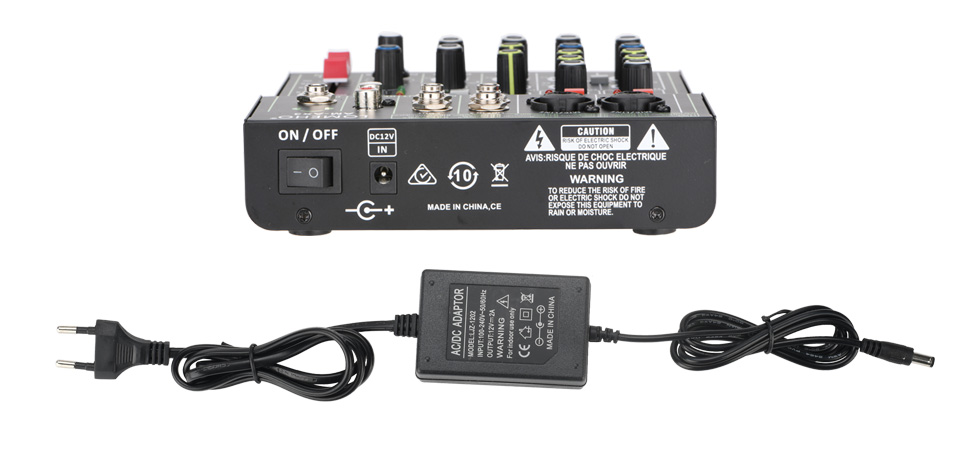

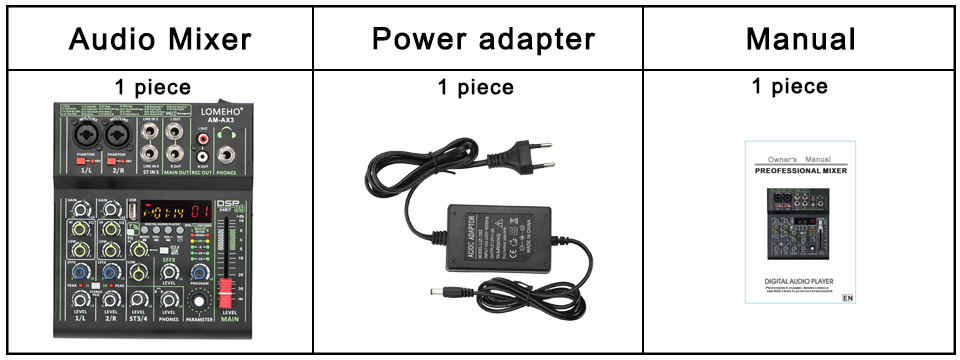

Packing List:

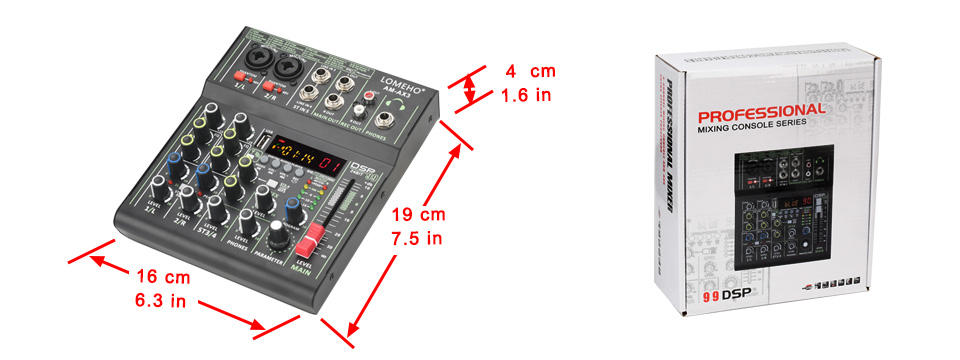

2. Product Size
