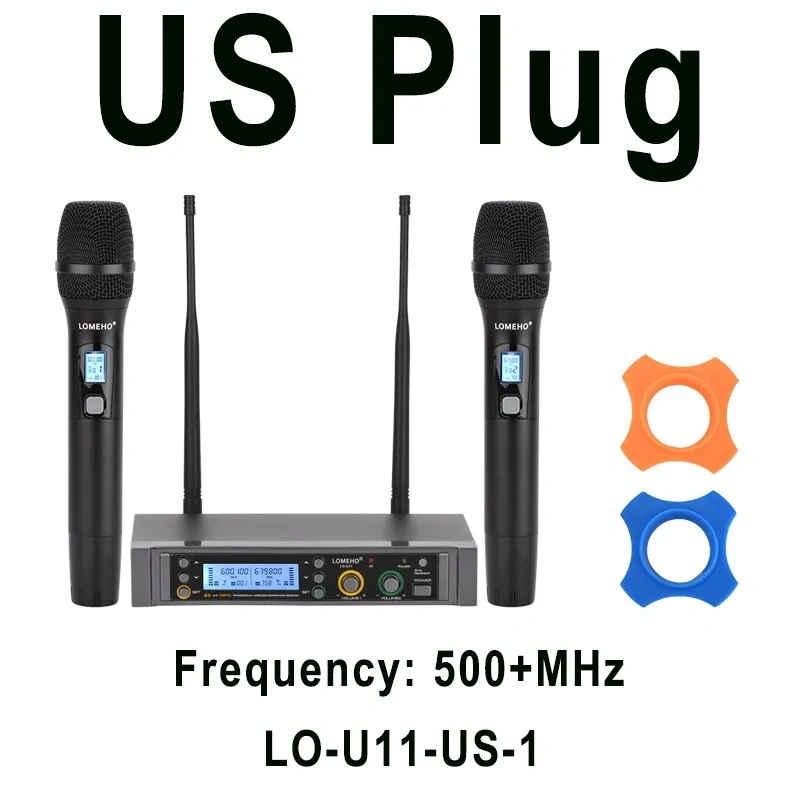

LO-U11

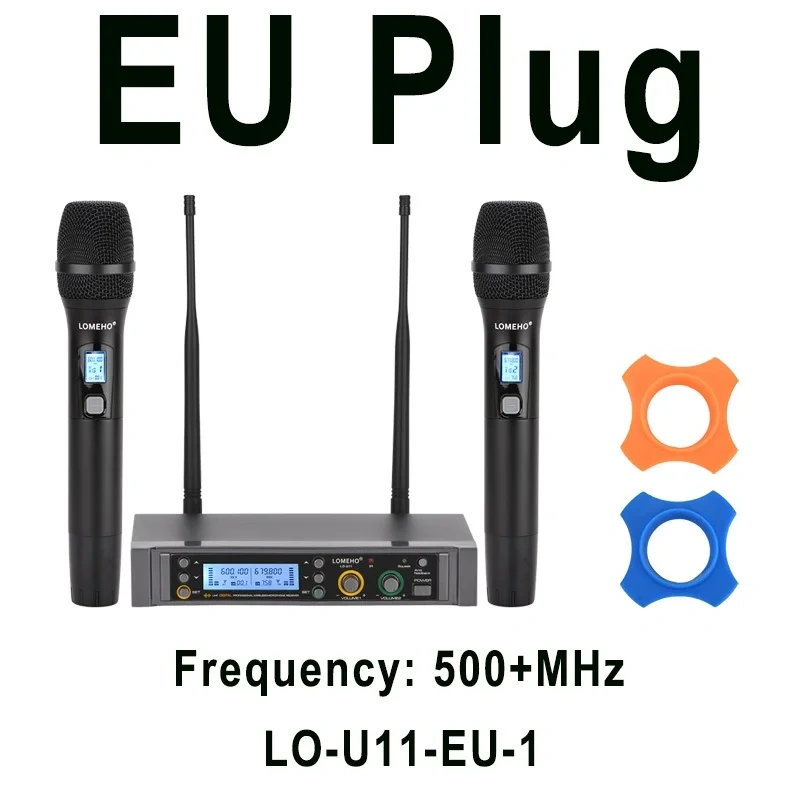

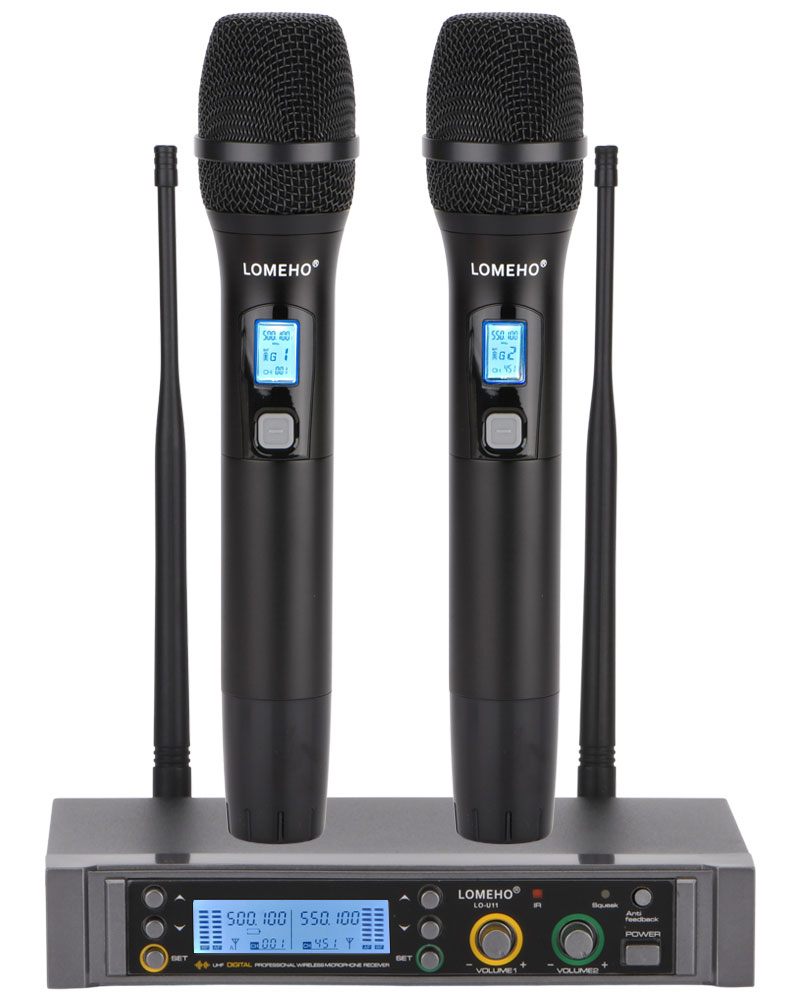

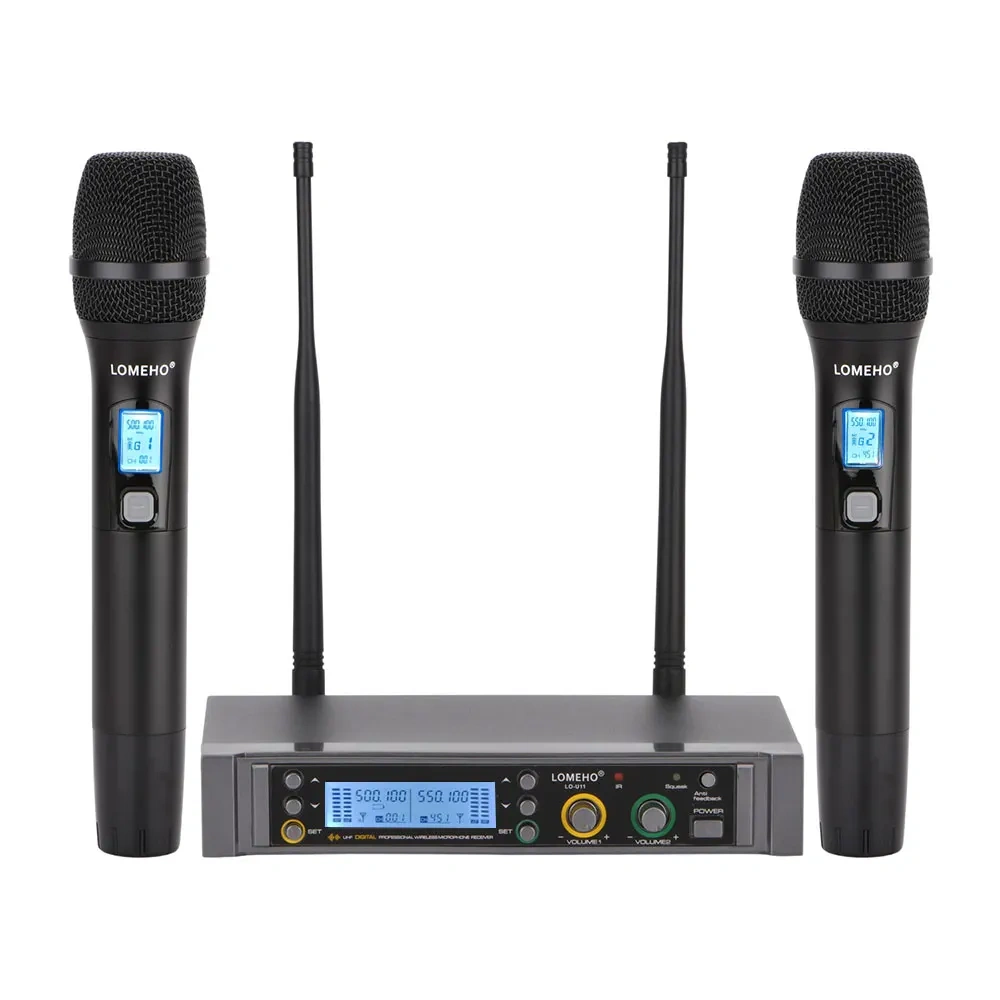

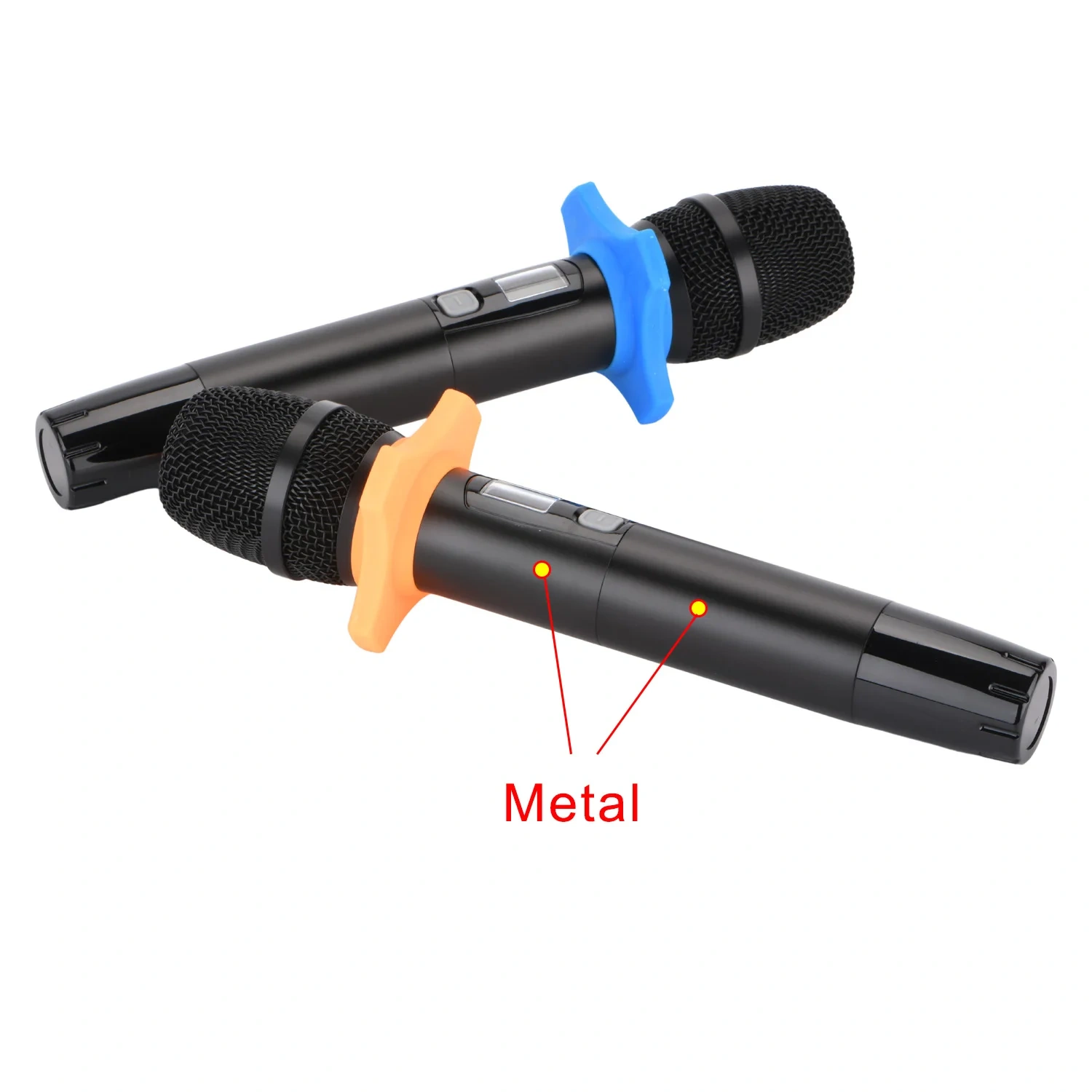

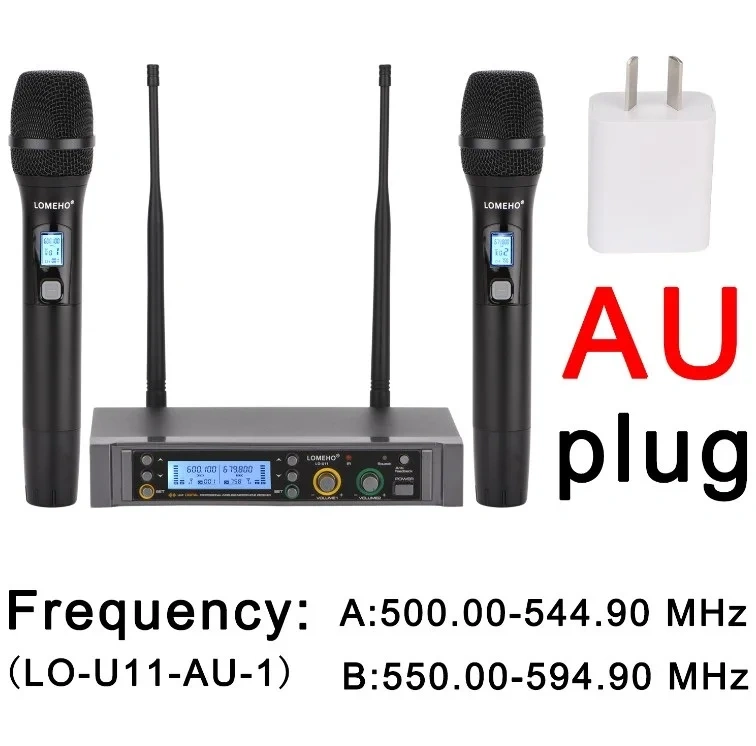

Lomeho 2 Way 2X380 Multi Frequency DC 5V Anti-feedback Mute DJ Party Karaoke Church Metal Handheld Wireless Microphone
1. Multi-Frequency: 2x380
2. Anti-feedback function
3. Mute function
4. Lock the frequency
5. Battery Power display
6. Working range: Over 50M (164 ft )
7. Power supply: DC 5V or 12V
Multi-frequency
Frequency channels: 2x380
Frequency scope:
1. 500+MHz
2. 600+MHz

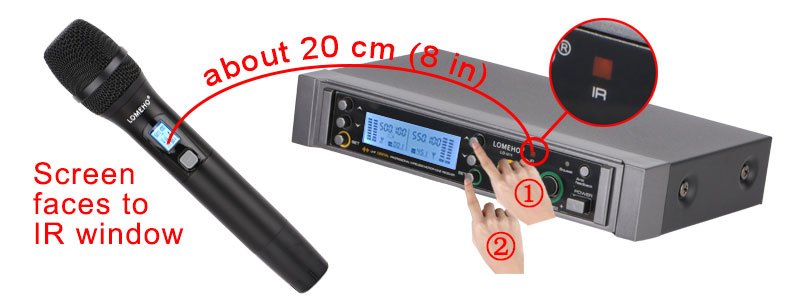

How to SYNC
Setp 1.
1. Press "UP/DOWN" button to choose the frequency.
2. Press "SET" button to confirm.
Step 2.
1. Microphone screen face to IR window (about 20cm--8in)
2. Long press "SET" to SYNC.

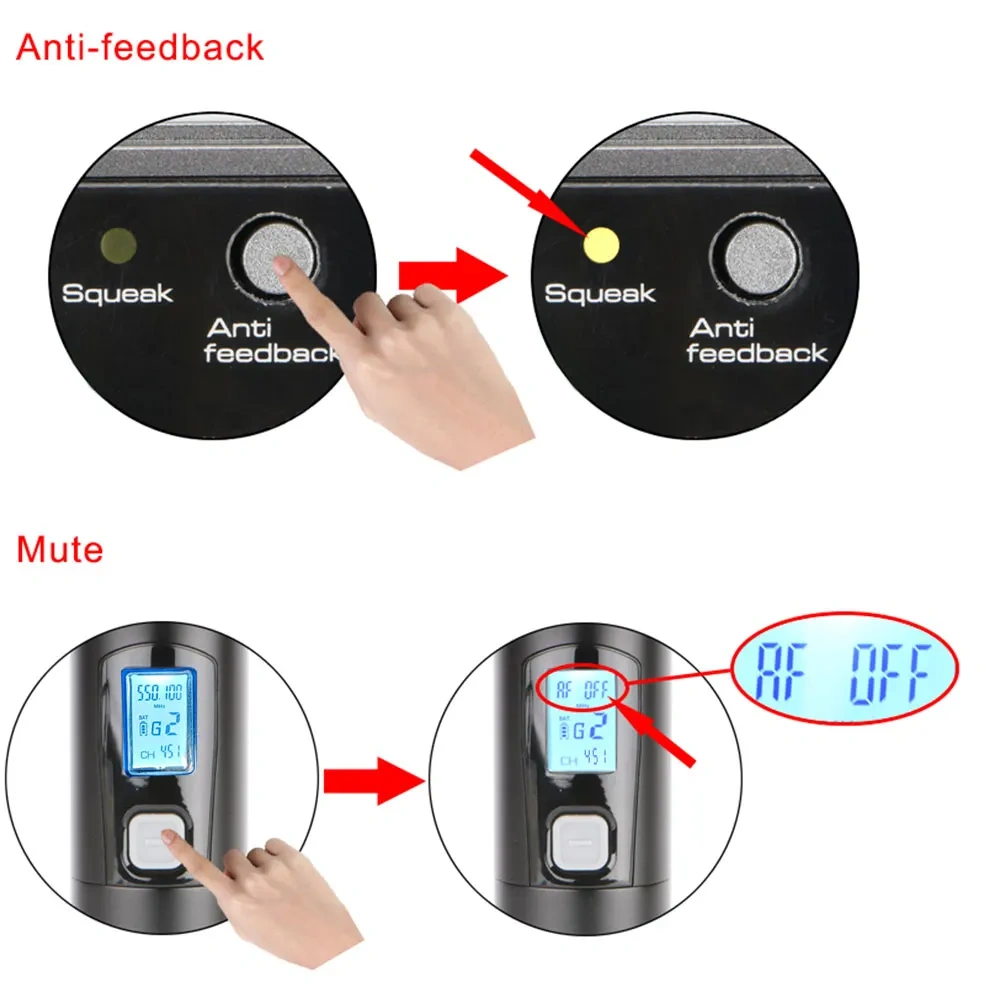

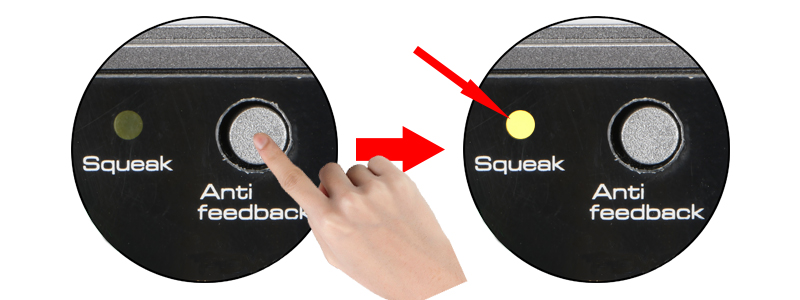

Anti-feedback function
Press "Anti-feedback" button, "Squeak" light will be on.

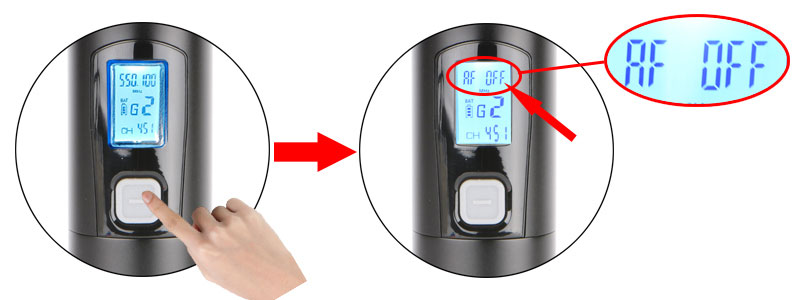

Mute function
When microphone is on, press the switch,
1) Sreen displays "AFF OFF",
2) Screen flashes
Microphone is in "AF OFF" status. Microphone will not pick up the sound.

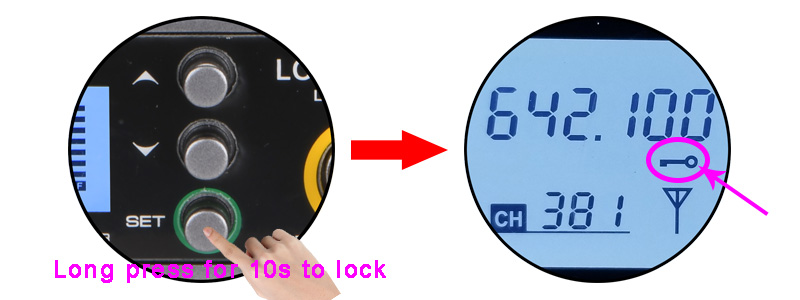

Lock Frequency
Long press "SET" for 10 seconds, the frequency will be locked.

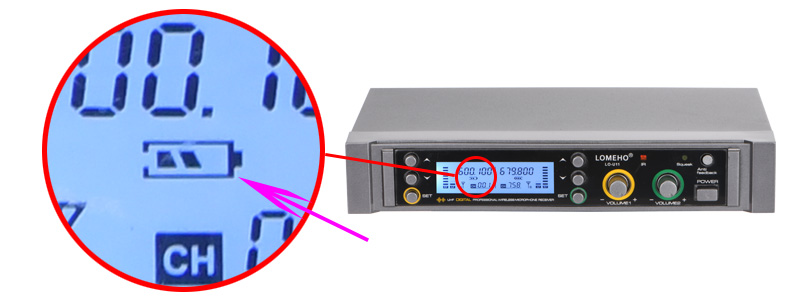

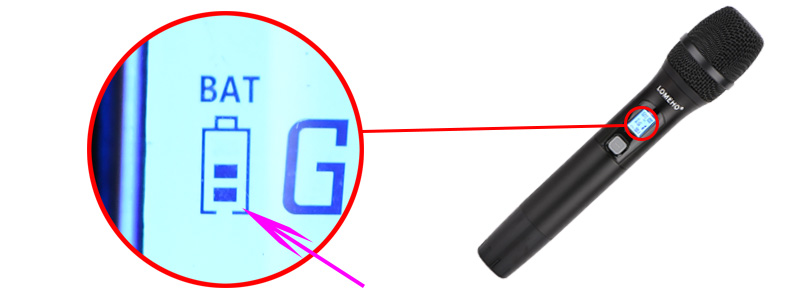

Battery Power Display

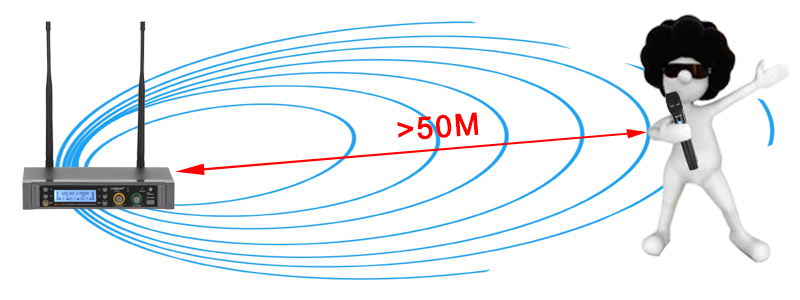

Working Range
Distance is over 50M (164 ft )

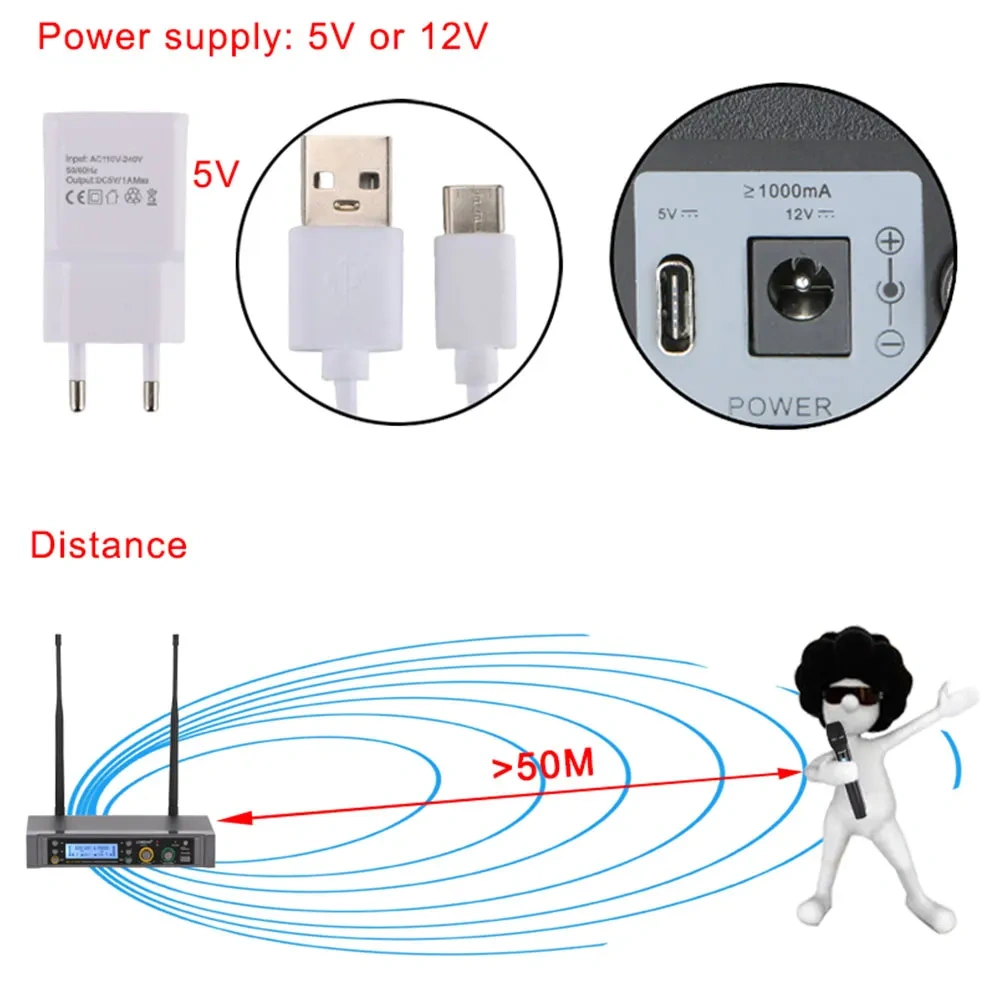

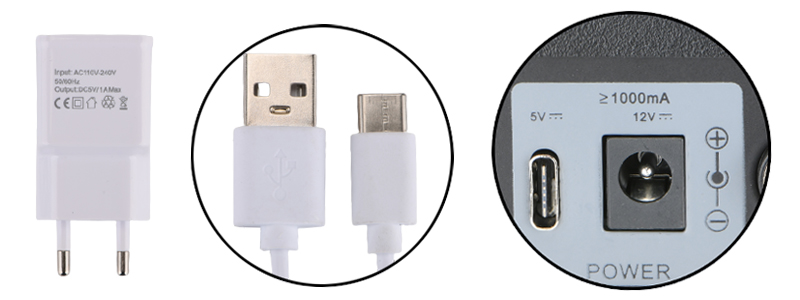

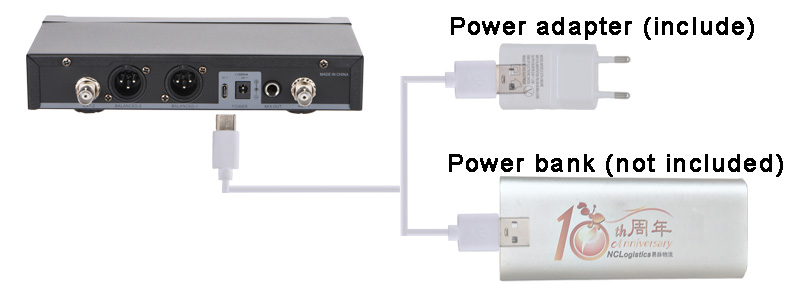

Power supply
2 kinds of power supply
1) DC 5V power supply: you can use Power Bank to supply power.
2) DC 12V power supply (we did not supply 12V power adapter)
1. Digital modulation: pi/4DQPSK
2. Number of frequency:2x380
3. Occupied bandwidth: 100k
4. Transmission rate: 204.8Ksps
5. S/N: 90dB
6. Frequency Response: 50-15KHz
7. Transmitting power<10dBm
8. Frequency stabilization: +/-0.005%

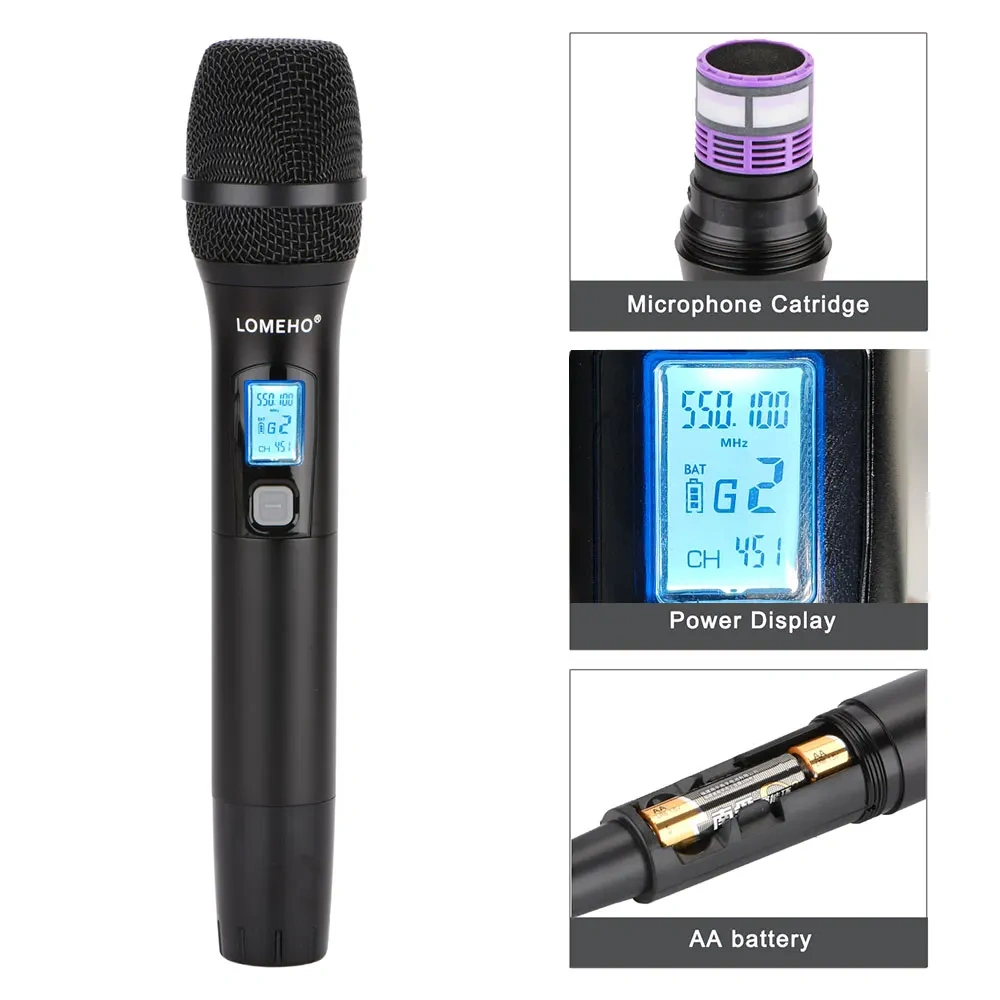

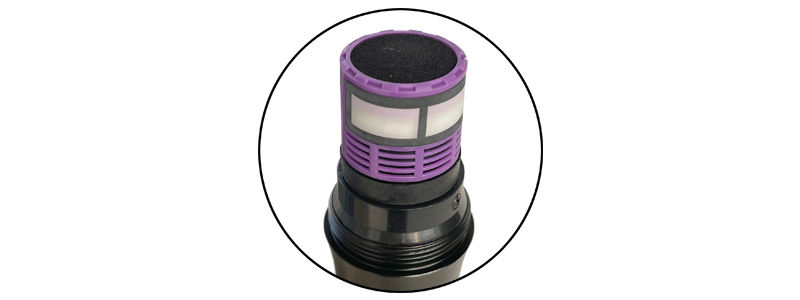

Capsule: Dynamic
Polar Pattern: Cardioid

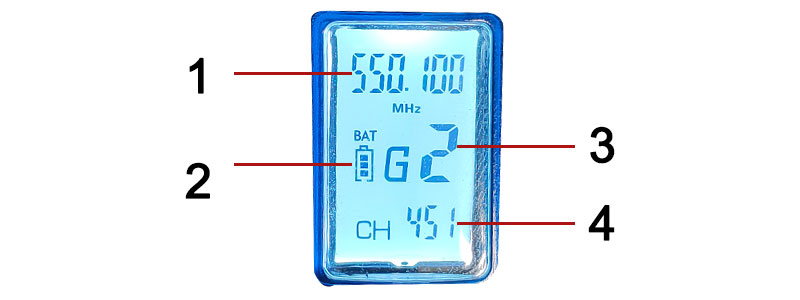

Microphone Screen:
1. Frequency
2. Battery power indicator
3. Channel number
4. Channel of receiver (A microphone or B microphone)

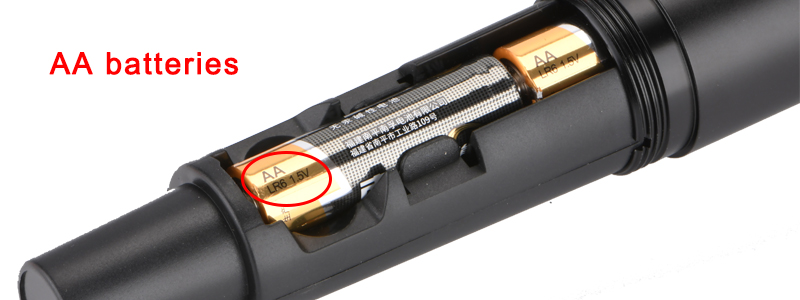

Battery: 2 pcs AA
Please note:
In order to prevent shaking in the hand, the battery compartment is tightly combined with the battery, and there is a little difficult to take out the battery.

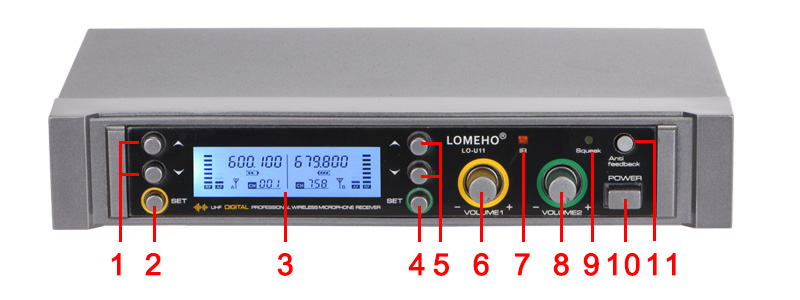

Front Pannel
1/5: UP/Down button: Press to choose frequency.
2/4: Set button: Infrared data transmission lanch button
3: Screen
6/8: Volume knob
7: IR signal indicator
9: Anti-feedback indicators
10: Power switch
11: Anti-feedback button

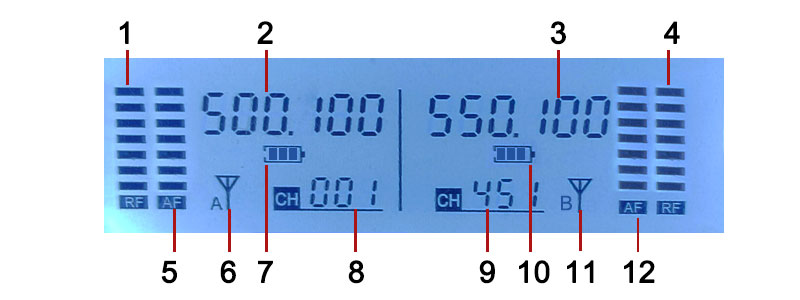

Screen:
1/6: Audio Frequency signal level
2/5: Squelch locked indicator
3/4: Frequency indicator
7/14: Radio Frequency signal level
8/13: Antenna A or B indicator
9/12: Transmitter power level indicator
10/11: Transmitter channel indicator.

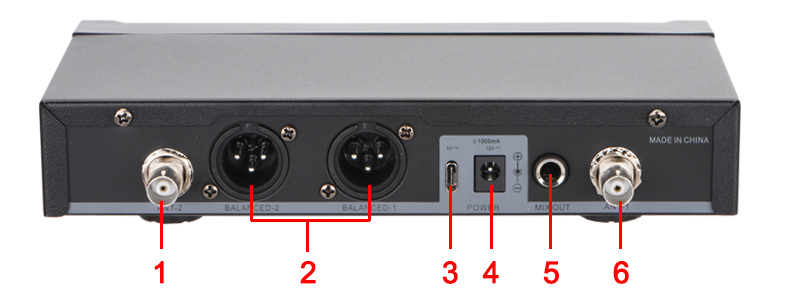

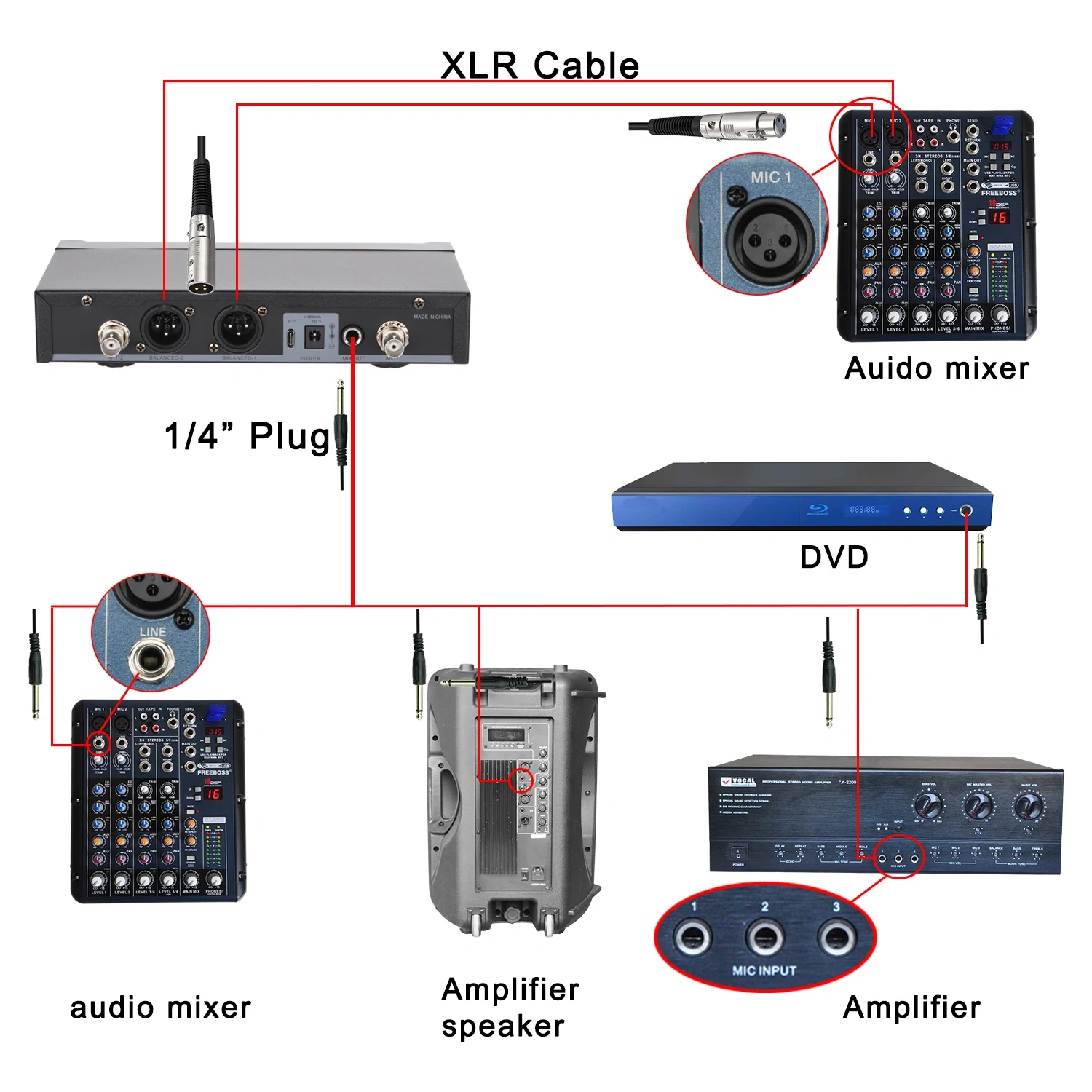

Back panel
1. Antenna connector
2.XLR Balance audio output socket
3. USB 5V Power supply
4. DC Power supply
5. Unbalanced mixing audio output socket
6. Antenna connector

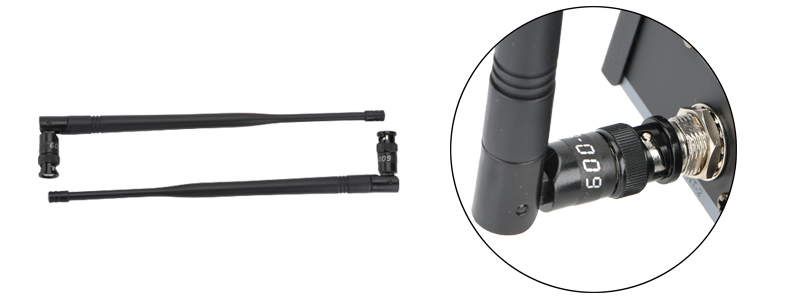

Antenna
2 pcs detachable antennas.
